| Specification | Details |
| Brand | Mextech |
| Model | CEM DT156 |
| Product Type | Coating Thickness Meter |
| Measurement Principle | Magnetic Induction & Eddy Current |
| Measuring Range | 0 to 1250 µm (0 to 50 mils) |
| Resolution | 0.1 µm (up to 99.9 µm), 1 µm (above 100 µm) |
| Accuracy | ±(3% + 1 µm) |
| Substrate Types | Ferrous (Fe) & Non-Ferrous (NFe) |
| Measurement Units | µm, mm, mils |
| Display | Backlit LCD |

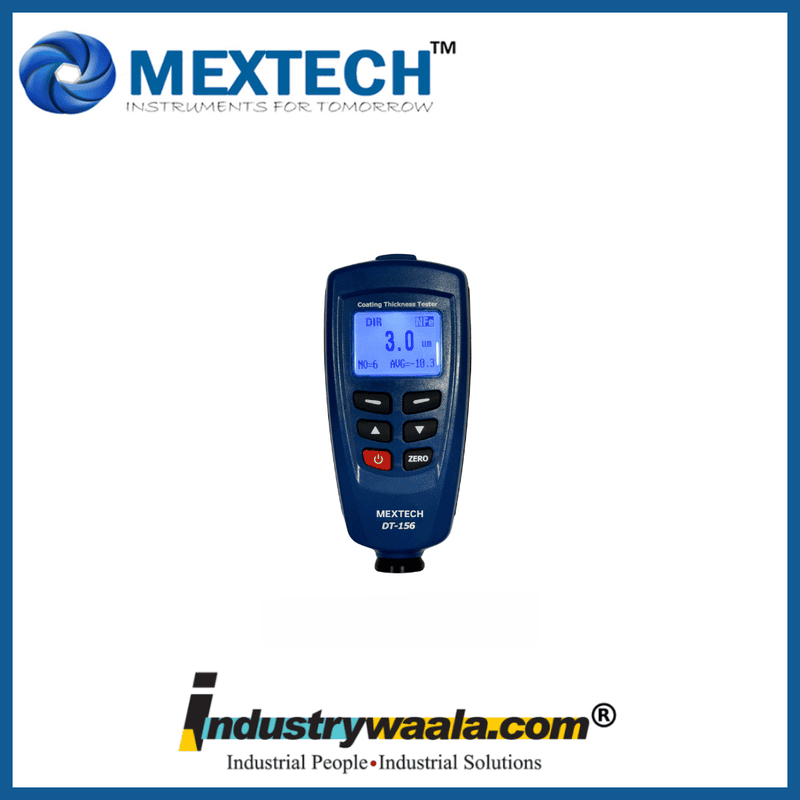

Mextech CEM DT156 Coating Thickness Meter – Precision Non-Destructive Coating Measurement Solution
The Mextech CEM DT156 Coating Thickness Meter is a professional portable instrument designed for fast and accurate measurement of non-magnetic coatings on ferrous substrates and insulating coatings on non-ferrous metals. It is widely used in automotive inspection, manufacturing, metal finishing, corrosion protection, painting applications, quality control departments, and industrial maintenance operations.
Utilizing advanced magnetic induction and eddy current measurement technologies, the DT156 automatically identifies the substrate material and selects the appropriate measurement method. This enables accurate thickness measurements on steel, iron, aluminum, copper, stainless steel, and other metallic surfaces without damaging the coating.
The instrument features a high-contrast LCD display that provides clear readings and supports both metric and imperial units. With built-in statistical analysis functions, users can easily monitor maximum, minimum, average, and standard deviation values, improving inspection efficiency and quality assurance processes.
Its compact handheld design, rapid measurement capability, memory storage, and USB connectivity make the DT156 an ideal solution for field inspections, production quality checks, automotive assessments, and industrial coating applications.
Benefits
✔ Non-destructive coating thickness measurement
✔ Automatic recognition of ferrous and non-ferrous substrates
✔ High accuracy for industrial and automotive applications
✔ Statistical analysis improves inspection efficiency
✔ Compact and lightweight for field use
✔ USB connectivity supports data management and reporting
✔ Easy operation with fast measurement response
✔ Suitable for quality control, maintenance, and coating inspection professionals
Short Description
The Mextech CEM DT156 Coating Thickness Meter is a portable digital gauge designed for non-destructive measurement of paint, powder coating, galvanizing, and protective coatings on ferrous and non-ferrous metal substrates. Featuring magnetic induction and eddy current technology, automatic substrate recognition, statistical analysis, memory storage, USB connectivity, and a measuring range up to 1250 µm, it is ideal for automotive inspection, industrial coating evaluation, and quality control applications.
