| Specification | Details |
| Product Model | Mextech DFG38010K |
| Product Type | Digital Force Gauge |
| Force Range | ±10 kgf / ±98 N / ±22 lbf |
| Accuracy | ±0.5% FS ±1 Digit |
| Resolution | 0.1 N, 0.01 kgf, 0.1 lbf |
| Measurement Units | kgf, N, lbf |
| Measurement Modes | Peak Value, Real-Time |
| Display | 2-line 4-digit Backlit LCD |
| Memory Capacity | 99 Readings |
| Calibration | Yes |
Accurate Push & Pull Force Measurement for Industrial Applications

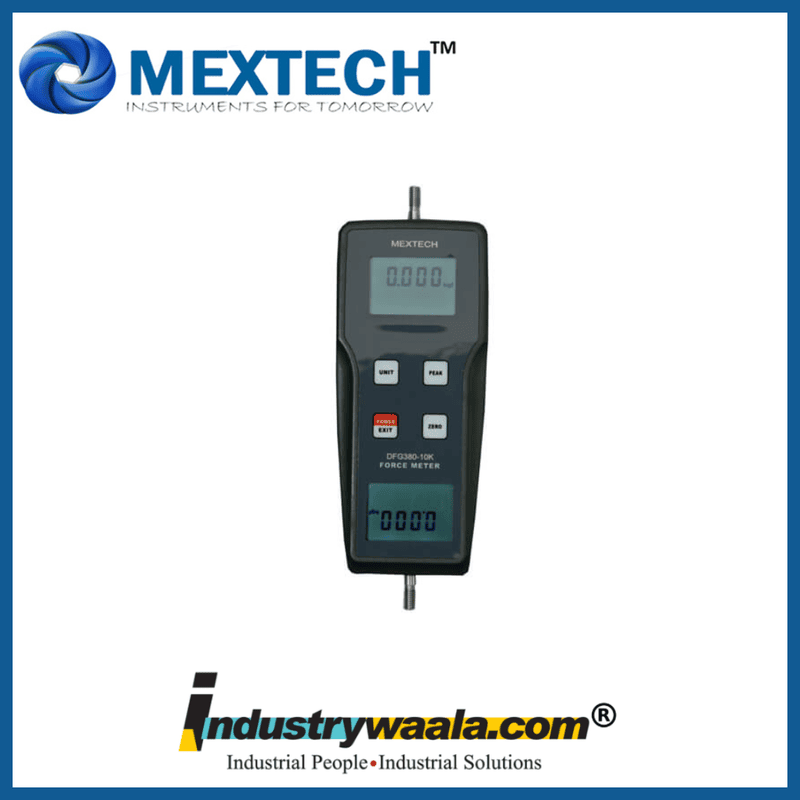

The Mextech DFG38010K Digital Force Gauge is a precision testing instrument developed to measure both tensile (pull) and compressive (push) forces with high accuracy. Designed for engineers, quality inspectors, laboratories, and manufacturing facilities, it provides reliable force measurements for product testing, quality control, and component verification.
With a measuring capacity of ±10 kgf (±98 N / ±22 lbf) and an accuracy of ±0.5% Full Scale, the DFG38010K ensures dependable performance across a wide range of industrial applications. The large backlit LCD display provides clear readings, while selectable units (kgf, N, and lbf) offer flexibility for international testing standards.
The gauge supports Peak Hold and Real-Time Measurement modes, allowing users to capture maximum applied force or monitor continuous force values during testing. It also includes memory storage for up to 99 readings, calibration capability, and optional PC connectivity for data transfer, enhancing efficiency in documentation and quality analysis.
Its ergonomic handheld design, multiple interchangeable test tips, and carrying case make it suitable for both field inspections and laboratory environments.
Key Features
- Push and pull force measurement
- Measuring range up to ±10 kgf (±98 N / ±22 lbf)
- High accuracy of ±0.5% FS ±1 digit
- Large backlit LCD display
- Peak value and real-time measurement modes
- Measurement units: kgf, Newton (N), and lbf
- Memory storage for up to 99 readings
- Calibration function
- Automatic and manual power-off options
- Optional PC interface for data transfer
- Ergonomic handheld design
- Lightweight and portable
- Durable industrial construction
- Multiple interchangeable testing accessories included
- Battery or DC adapter operation
Why Choose Mextech DFG38010K Digital Force Gauge?
The Mextech DFG38010K Digital Force Gauge offers precision, versatility, and ease of use for professional force measurement. Its ±10 kgf measuring capacity, ±0.5% FS accuracy, Peak Hold, 99-reading memory, multiple measurement units, and backlit LCD display make it an excellent choice for quality assurance, manufacturing, automotive testing, laboratories, and industrial inspection. Designed for dependable performance and long-term reliability, it is an essential instrument for accurate push and pull force testing.
