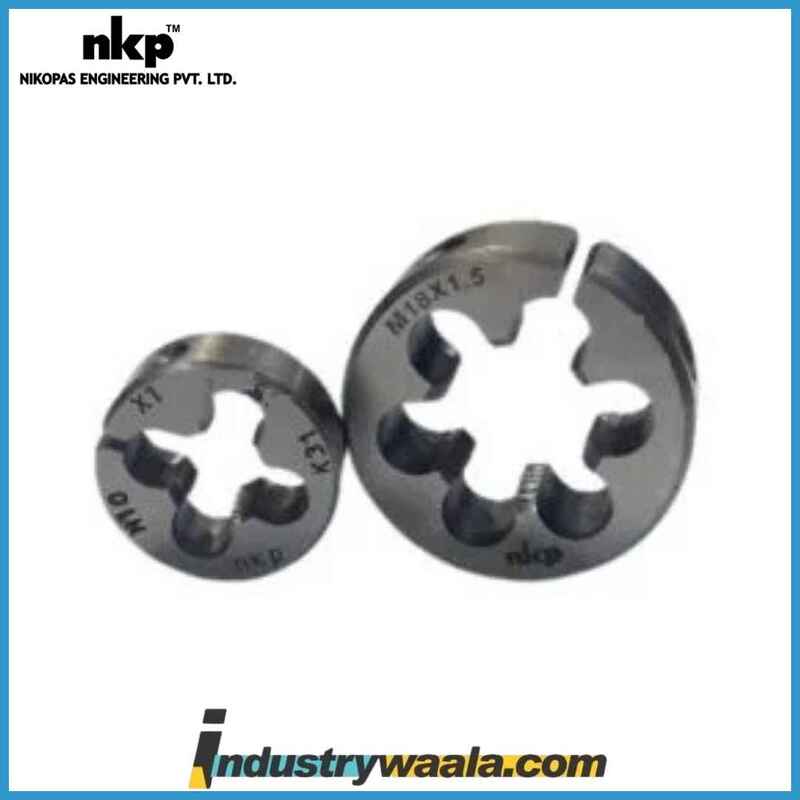

NKP 1.1/16 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies

The NKP 1.1/16 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies is a precision-engineered tool designed to cut BSB (British Standard Brass) threads, commonly used in applications involving brass fittings and mechanical connections. This die is built to handle 1.1/16-inch BSB threads, providing high-quality, accurate, and secure thread cutting. With a 26 TPI (Teeth Per Inch) pitch, the die produces fine threads, ensuring tight, strong, and reliable connections that are essential in industries such as plumbing, gas, electrical systems, and mechanical manufacturing.

Key Specifications:

1. NKP (Brand/Tool Series):
   • NKP is a renowned manufacturer of cutting tools, specializing in high-quality, precision dies designed for industrial and mechanical use. NKP products are known for their durability, accuracy, and long lifespan.
2. 1.1/16 BSB (Thread Type and Size):
   • 1.1/16-inch size: This die is engineered for cutting 1.1/16-inch BSB threads. BSB (British Standard Brass) threads are typically used in applications involving brass fittings, where fine threads are needed to create a secure, leak-resistant seal.
   • BSB threads are designed for use in mechanical and plumbing systems where brass components require fine, closely spaced threads to ensure strength and a tight seal.
3. 26 TPI (Teeth Per Inch):
   • 26 TPI refers to the number of teeth per inch, indicating that this die produces fine threads. Fine threads, such as those produced by this die, are often preferred in applications requiring precision and tight-fitting connections. They are ideal for creating threads that ensure greater mechanical strength and a more secure, leak-resistant fit.
   • Fine threads are particularly valuable in applications such as fluid and gas systems, where a reliable and durable seal is required to prevent leaks.
4. 2 Inch Diameter (Die Size):
   • The 2-inch diameter of the die ensures that it provides adequate surface area and stability during the threading process. This larger die size allows for uniform cutting and ensures smooth thread formation, contributing to the accuracy and reliability of the threads.
   • The 2-inch diameter also enhances the durability and life of the die by providing a solid, stable base during operation.
5. Carbon Steel Construction:
   • Made from carbon steel, this die is built for durability and long-lasting performance. Carbon steel is known for its strength, resilience, and wear resistance, making it ideal for heavy-duty use. This material helps maintain sharp cutting edges, ensuring consistent and precise thread cutting even under high-volume or industrial conditions.
   • The carbon steel composition also provides resistance to corrosion, which is particularly useful when working with brass components that may be exposed to moisture, chemicals, or harsh conditions.
6. Circular Die Design:
   • The circular design of the die ensures that the cutting force is evenly distributed, leading to smooth, uniform threads. The circular shape also helps to maintain the stability of the die, reducing the risk of wobbling or misalignment, which can cause uneven thread cuts.
   • This design promotes precision and accuracy, making it ideal for tasks where high-quality thread formation is essential.

Applications:

• Brass Fittings and Components:
  • The primary use of the NKP 1.1/16 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies is in cutting BSB threads on brass fittings. These fittings are commonly used in plumbing systems, mechanical assemblies, and gas installations, where strong, durable, and leak-proof connections are needed.
  • The die is perfect for producing threads on brass components such as nuts, bolts, valves, flanges, and other threaded brass components that require precise, fine threads.
• Plumbing and Fluid Systems:
  • BSB threads are widely used in plumbing, where brass fittings are preferred for their strength and resistance to corrosion. This die ensures secure, leak-free connections in water systems, heating systems, and gas pipelines.
  • It is also suitable for creating threads in other fluid systems that require a high degree of precision to prevent leaks and ensure efficient fluid flow.
• Mechanical and Electrical Systems:
  • Brass components with BSB threads are frequently used in mechanical systems and electrical systems where precision threading is required. This die helps produce threads on connectors and other mechanical parts that need to fit tightly and securely.
  • It is ideal for applications in automotive, industrial machinery, electrical equipment, and heavy-duty mechanical systems, ensuring strong, high-performance connections.
• Gas Systems:
  • In gas systems, the ability to create secure and reliable threaded connections is critical to prevent leaks. The fine 26 TPI threads produced by this die ensure strong, tight-fitting connections for gas fittings and connectors, providing a leak-proof seal essential for safe gas installations.

Conclusion:

The NKP 1.1/16 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies is an essential tool for creating fine BSB threads on brass fittings and components. With its 26 TPI pitch, the die produces threads that are ideal for creating strong, tight, and secure connections. Made from carbon steel, the die ensures durability, wear resistance, and long-lasting performance. The 2-inch diameter and circular design provide stability and help produce accurate, smooth threads. This die is highly suitable for use in plumbing, mechanical systems, gas installations, and electrical applications, ensuring precise and reliable threading for a wide range of industries.
