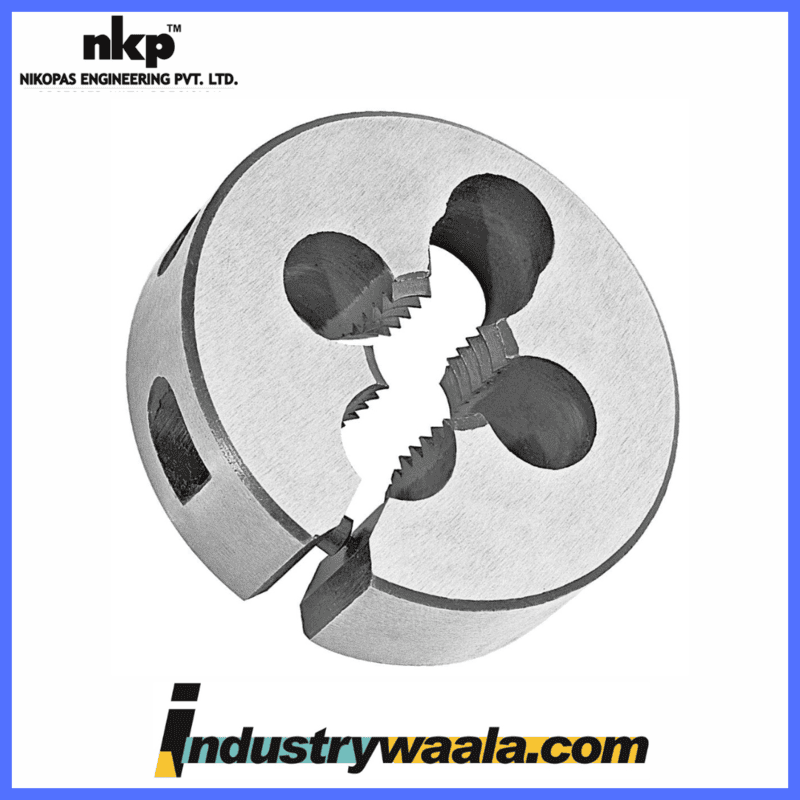

NKP 1 1/2"x 11 1/2 NPT 4 Inch Dia Carbon Steel Circular Dies

The NKP 1 1/2″ x 11 1/2 NPT 4 Inch Dia Carbon Steel Circular Dies are high-performance threading tools designed for cutting NPT (National Pipe Tapered) threads on 1 1/2-inch diameter pipes or rods. These dies are constructed from carbon steel, ensuring durability and long-lasting performance. Here’s a detailed breakdown of the key features and specifications of this tool:

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP refers to the brand or type of the tool. NKP is well-known for producing high-quality threading dies that are engineered for precision, reliability, and durability in industrial applications. The brand ensures that each die meets high performance standards.

2. 1 1/2″ x 11 1/2 NPT

• 1 1/2″ x 11 1/2 NPT specifies the size and thread type:
  • 1 1/2″ refers to the diameter of the pipe or rod being threaded, which is 1 1/2 inches (approximately 38.1 mm).
  • 11 1/2 NPT indicates the NPT (National Pipe Tapered) thread specifications, with 11 1/2 threads per inch (TPI). NPT threads are designed with a taper that allows for a tight, leak-proof seal when the threaded components are connected. The 11 1/2 TPI represents a fine thread pitch, allowing for precise and consistent threading.

3. 4 Inch Dia

• The 4-inch diameter (approximately 101.6 mm) refers to the diameter of the circular die. This larger die diameter ensures that the die can accommodate threading operations for 1 1/2-inch diameter pipes with stable and consistent cutting. A larger die diameter provides better support and alignment during the threading process.

4. Carbon Steel Construction

• The die is made from carbon steel, a material known for its strength, durability, and resilience. Carbon steel ensures that the die can withstand the mechanical stresses involved in threading, while also maintaining its sharpness and precision even with repeated use. Carbon steel is also resistant to wear and corrosion, making the die suitable for use in harsh industrial environments.

5. Circular Dies

• Circular dies are used for cutting external threads on cylindrical workpieces such as pipes, rods, and bolts. The die is typically mounted in a die stock or holder, which allows it to rotate while cutting threads into the workpiece. The circular design ensures that the die creates uniform and smooth threads for high-quality, precise results.

Applications:

• Pipe Threading: The NKP 1 1/2″ x 11 1/2 NPT 4 Inch Dia Carbon Steel Circular Die is ideal for cutting NPT threads on 1 1/2-inch diameter pipes, which are commonly used in plumbing, gas systems, oil pipelines, and hydraulic systems. NPT threads are particularly designed for tight, leak-proof seals in piping applications where pressure-tight connections are critical.
• Hydraulic and Pneumatic Systems: This die is widely used in the creation of NPT threads for hydraulic and pneumatic systems, where high-pressure and secure, leak-proof connections are essential.
• Industrial & Mechanical Work: Ideal for threading components used in machinery, mechanical systems, and other industrial systems, where precision and durability are critical for maintaining the integrity of the system.
• Fluid and Gas Systems: The NPT threads are specifically designed for fluid and gas systems, ensuring that threaded connections remain secure and leak-free even under high pressure.

Key Features:

• Threading Capacity: The 4-inch die diameter allows for efficient cutting of NPT threads on 1 1/2-inch diameter pipes. This die size provides a stable and consistent threading process, making it suitable for cutting larger diameter threads.
• Durability: Made from carbon steel, this die is highly durable and can withstand the mechanical forces encountered during repeated threading operations. The material ensures long-lasting performance, maintaining sharpness and precision over extended use.
• Precision: With 11 1/2 TPI NPT threads, this die ensures that the threads are fine, precise, and meet NPT standards for a tight seal. This precision is crucial in applications where leak-proof connections are necessary, such as in fluid or gas systems.
• Versatility: This die is suitable for a wide range of applications across industries like plumbing, mechanical systems, oil and gas, and hydraulic systems. It can be used for large diameter threading, ensuring reliable, leak-proof connections in various sectors.

Conclusion:

The NKP 1 1/2″ x 11 1/2 NPT 4 Inch Dia Carbon Steel Circular Die is a high-quality, durable, and precise threading tool designed for cutting NPT threads on 1 1/2-inch diameter pipes. Made from carbon steel, it offers exceptional strength, precision, and long-term durability. The 11 1/2 TPI NPT threads ensure that the die creates fine, precise threads, perfect for applications requiring secure, leak-proof seals. Whether you're working with plumbing, hydraulic systems, gas systems, or other industrial applications, this die provides consistent, high-quality results that are essential for creating tight, reliable connections.
