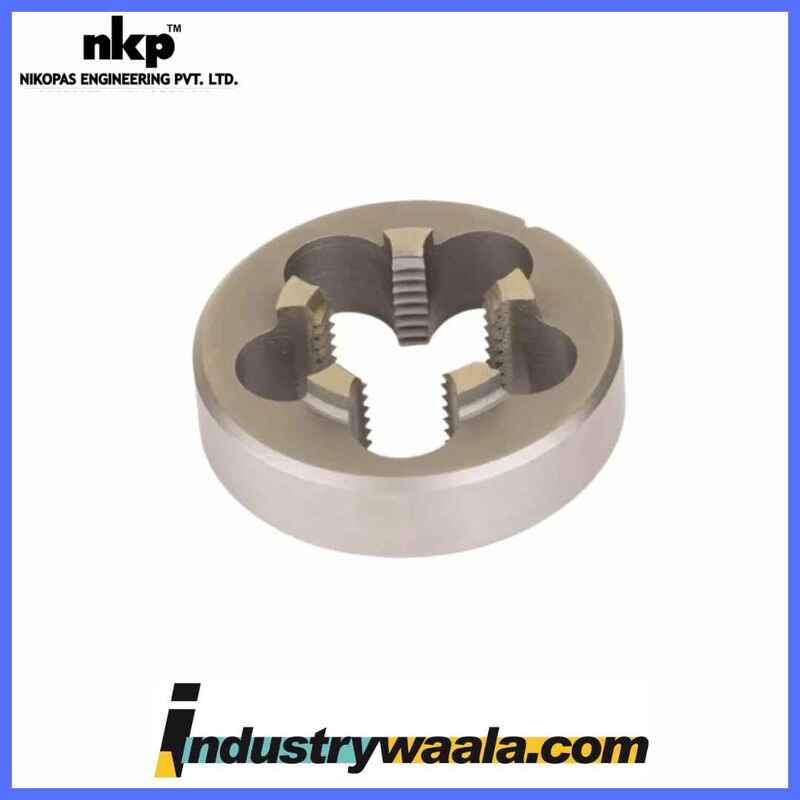

NKP 1 1/2"x 11 BSPT 4 Inch Dia Carbon Steel Circular Dies

The NKP 1 1/2″ x 11 BSPT 4 Inch Dia Carbon Steel Circular Dies are specialized tools designed for cutting BSPT (British Standard Pipe Tapered) threads on 1 1/2-inch diameter pipes or rods. Below is a detailed breakdown of the features and specifications of this die:

1. NKP (Brand/Type):

• NKP refers to the brand or product series of the die. Known for precision, durability, and high-quality performance, NKP dies are designed for cutting threads in industrial applications, ensuring reliability in demanding environments.

2. 1 1/2″ x 11 BSPT:

• 1 1/2″ x 11 BSPT specifies the size and thread type of the die:
  • 1 1/2″ refers to the diameter of the pipe or rod being threaded, which is 1 1/2 inches (approximately 38.1 mm).
  • 11 BSPT stands for British Standard Pipe Tapered (BSPT) threads, with 11 threads per inch (TPI), defining the pitch of the thread.
    • BSPT threads are tapered, which means the diameter decreases as the thread moves along the pipe. This taper allows for a tight, leak-resistant seal when threaded together, making BSPT threads ideal for fluid and gas systems.

3. 4 Inch Dia:

• The 4-inch diameter (approximately 4.000 inches or 101.6 mm) refers to the size of the die itself. The larger size of this die makes it suitable for threading larger components, typically in industrial and mechanical settings where higher strength and durability are required.

4. Carbon Steel:

• The die is made from carbon steel, a durable material known for its strength, resilience, and resistance to wear.
• Carbon steel is widely used in threading tools due to its ability to withstand the stresses involved in cutting threads, especially in tough materials or large-diameter applications. The carbon steel construction ensures the die has a long service life and maintains sharpness under heavy use.

5. Circular Dies:

• Circular dies are round tools that are used for cutting external threads on rods, pipes, bolts, or other cylindrical workpieces. These dies are typically used with a die stock, which holds the die in place and allows it to rotate as it cuts the threads.
• Circular dies are key tools in creating standardized external threads, and they are essential in industries such as plumbing, mechanical engineering, and construction.

Applications:

• Pipe Threading: This die is specifically designed for cutting BSPT threads on 1 1/2-inch diameter pipes, commonly required in plumbing, hydraulic systems, oil and gas installations, and other fluid or gas-related industries.
• Industrial Applications: Suitable for heavy-duty industrial applications, where large-diameter pipes or fittings need precise threading, this die is ideal for creating strong and reliable connections in machinery or piping systems.
• Fluid and Gas Systems: BSPT threads are tapered, ensuring a tight seal for gas, liquid, or pressure-related applications. This die is perfect for creating secure, leak-proof connections in systems that involve the transportation of gases, liquids, or pressurized fluids.
• Mechanical and Construction Work: Used in construction, manufacturing, and mechanical engineering applications where 1 1/2-inch BSPT threads are required for pipes, valves, and other fittings that need to withstand high pressure.

Key Features:

• Large Threading Capacity: The 4-inch diameter die allows it to handle 1 1/2-inch BSPT threads with ease, suitable for larger industrial pipes and fittings.
• Durability: Constructed from carbon steel, this die is resistant to wear and designed to endure the demands of industrial threading tasks, even when cutting through harder materials.
• Precision and Seal: The BSPT taper ensures that threads are cut with the appropriate pitch and angle for creating a tight, leak-resistant seal, ideal for fluid or gas transport systems.
• Versatility: This die is suitable for a wide range of applications, including plumbing, hydraulic systems, piping, and heavy-duty machinery.

Conclusion:

The NKP 1 1/2″ x 11 BSPT 4 Inch Dia Carbon Steel Circular Die is a high-performance tool designed for cutting BSPT threads on 1 1/2-inch diameter pipes or related components. Made from carbon steel, this die offers excellent durability and precision, making it suitable for large-scale, industrial threading applications. Its BSPT taper ensures that it creates tight, leak-proof seals in fluid and gas systems, and its 4-inch diameter makes it capable of handling larger pipe sizes. Ideal for mechanical, plumbing, and construction work, this die provides reliable, high-quality threading for demanding industrial applications.
