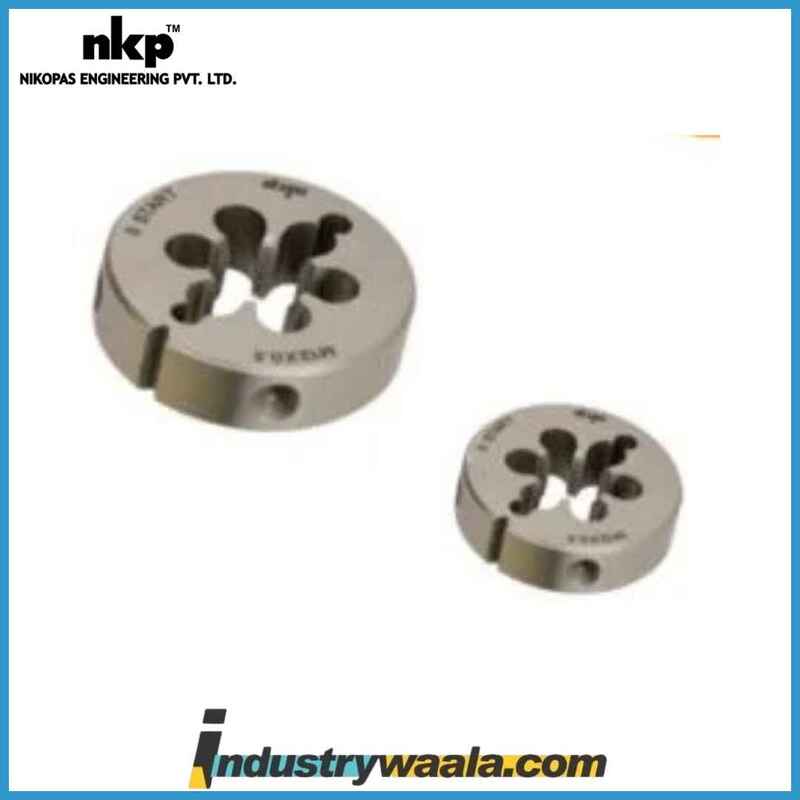

NKP 1.1/4 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies

The NKP 1.1/4 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies is a high-performance cutting tool designed for producing BSB (British Standard Brass) threads, typically used in the manufacturing of brass fittings for plumbing, mechanical, and electrical applications. This die is engineered for precise thread cutting, offering excellent durability, performance, and long service life. The tool is designed to create threads with a 26 TPI (Teeth Per Inch) pitch, ideal for applications that require fine threads. Fine threads are especially useful for creating strong, secure, and tight connections, ensuring a high-quality seal that is essential for preventing leaks and ensuring mechanical integrity.

Key Specifications:

1. NKP (Brand/Tool Series): NKP is a trusted brand known for producing high-quality cutting tools, specifically designed for use in industrial and mechanical settings. Their dies are built to withstand high-volume, heavy-duty threading applications while maintaining precision and durability.
2. 1.1/4 BSB (Size and Thread Type):
   • 1.1/4-inch size: This die is designed for cutting threads on components with a 1.1/4-inch diameter. The BSB (British Standard Brass) thread is commonly used for brass fittings in various industries, including plumbing, gas, electrical systems, and mechanical applications.
   • BSB Threads: BSB is a British standard for fine threads used in brass and other materials. These threads are typically found in brass components, where tight, secure, and high-strength connections are required. BSB threads are commonly used in applications that require the use of a high-quality sealing mechanism.
3. 26 TPI (Teeth Per Inch):
   • 26 TPI indicates that this die cuts fine threads, which are closely spaced. Fine threads are preferred in applications that require greater strength and stability, as they provide more surface area for better grip and a tighter seal.
   • Fine threads are particularly valuable in systems where the components must fit together with precision, such as in fluid or gas systems, where leakage must be minimized, or in mechanical assemblies that require strong, secure joins.
4. 2 Inch Diameter (Die Size):
   • The 2-inch diameter ensures that the die is large enough to handle 1.1/4-inch BSB threads efficiently, allowing for smooth and consistent thread formation. The larger die size provides stability during the threading process, reducing the risk of wobbling or inconsistent thread cutting.
5. Carbon Steel Construction:
   • Made from carbon steel, the die is built for durability and longevity. Carbon steel is highly resistant to wear and tear, and it retains sharp cutting edges for a longer time compared to other materials. This construction ensures that the die can withstand prolonged use, making it an excellent choice for high-volume threading applications in industrial settings.
   • Carbon steel also offers corrosion resistance, which is crucial when working with brass components, as they may be exposed to moisture or harsh environments.
6. Circular Die Design:
   • The circular design of the die ensures that the cutting force is evenly distributed during the threading process. This promotes smooth, uniform thread cuts, which is essential for producing high-quality, accurate threads.
   • The circular shape also helps to stabilize the die during use, preventing any wobbling or misalignment that could lead to uneven or faulty threads.

Applications:

• Brass Fittings and Connectors: The primary application for the NKP 1.1/4 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies is in cutting threads on brass components, such as brass fittings, connectors, valves, and flanges. These threads are used in plumbing systems, gas installations, and mechanical assemblies.
• Plumbing Systems: BSB threads are widely used in plumbing, where brass fittings are commonly employed due to their corrosion resistance and strength. This die helps produce secure, leak-proof connections between pipes and fittings in water systems, heating systems, and gas pipelines.
• Mechanical and Electrical Applications: Brass fittings with BSB threads are also used in mechanical and electrical systems where precision and strong connections are required. This die is suitable for creating threads on connectors and other components used in industrial machinery, automotive systems, and electrical equipment.
• Gas Systems: In gas installations, a tight, secure thread is necessary to ensure safety and prevent leaks. The fine 26 TPI threads produced by this die provide the necessary strength and reliability for use in gas fittings and connections, ensuring a leak-free, durable seal.
• Industrial Manufacturing: The carbon steel construction of this die makes it suitable for high-volume use in industrial manufacturing settings. The die can handle continuous, heavy-duty threading tasks, ensuring consistent and reliable performance across a range of manufacturing processes.

Conclusion:

The NKP 1.1/4 BSB 26 TPI 2 Inch Dia Carbon Steel Circular Dies is an essential tool for producing fine BSB threads on brass fittings and components. The die’s 26 TPI pitch ensures secure, tight, and precise threads, which are critical for ensuring reliable, leak-proof connections in plumbing, gas, mechanical, and electrical systems. Made from carbon steel, the die offers outstanding durability, wear resistance, and long-lasting performance, even under high-volume, industrial use. The 2-inch diameter and circular design provide stability and promote smooth, uniform threading, making it ideal for precision threading tasks in a variety of professional and industrial applications.
