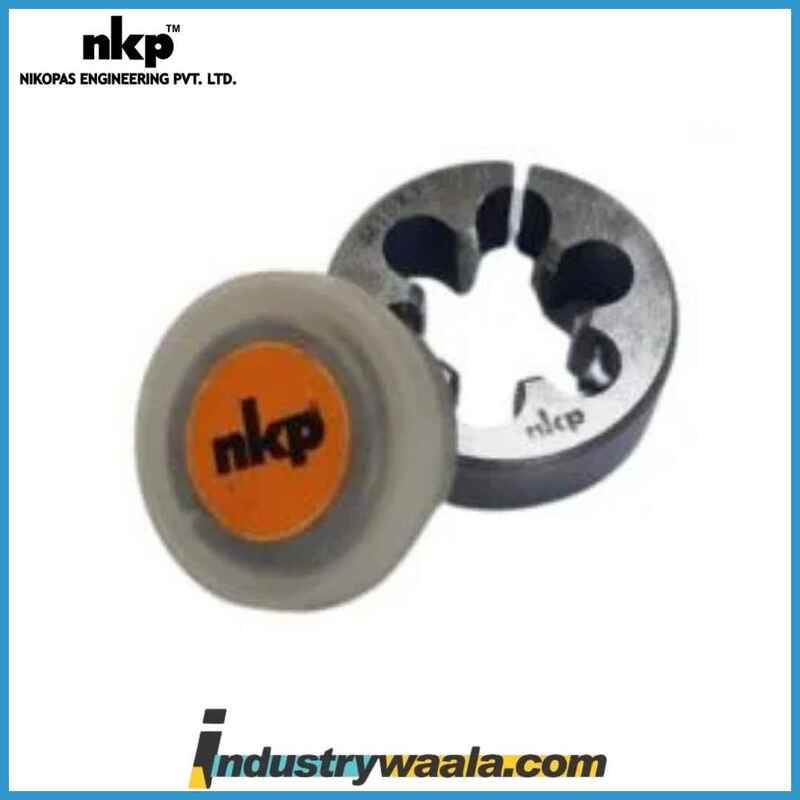

NKP 1 1/4"x 11 1/2 NPT 3 Inch Dia High Speed Steel Circular Dies

The NKP 1 1/4" x 11 1/2 NPT 3 Inch Dia High-Speed Steel Circular Die is a precision threading tool designed for cutting 1 1/4-inch NPT (National Pipe Tapered) threads with 11 1/2 threads per inch (TPI). It is ideally suited for industrial and mechanical applications, ensuring secure and leak-proof connections on pipes or fittings used in high-pressure systems. Below is a detailed breakdown of this tool's features:

Detailed Description:

1. NKP: Likely refers to the brand or manufacturer, known for producing high-quality industrial threading tools. NKP products are widely respected for their durability, precision, and reliability in various industrial settings.
2. 1 1/4" x 11 1/2 NPT:
   • 1 1/4" refers to the nominal size of the thread being cut, specifically 1 1/4 inches in diameter. This size is commonly used for medium to large pipe fittings and is typically found in applications requiring a secure seal under moderate to high-pressure conditions.
   • 11 1/2 TPI (Threads Per Inch) represents the thread pitch. A finer pitch like 11 1/2 TPI ensures more precise and tighter threads, allowing for enhanced sealing capabilities and better thread engagement.
   • NPT (National Pipe Tapered) is the standard for tapered pipe threads used in the U.S. The tapering ensures that as the components are screwed together, the threads form a tight seal, which prevents leaks and ensures a secure connection in piping systems, particularly under pressure.
3. 3 Inch Diameter:
   • The 3-inch diameter refers to the overall size of the die. This makes it suitable for threading medium to large pipes and fittings. The larger diameter provides greater stability and support during threading, ensuring precise cuts and reducing the likelihood of thread deformation or errors.
   • It is particularly effective for use in large-scale industrial applications, where threaded pipe fittings of 1 1/4-inch size are common.
4. High-Speed Steel (HSS):
   • Constructed from High-Speed Steel, this die offers remarkable hardness, durability, and resistance to heat and wear. HSS tools can maintain their cutting edge even at high speeds and under high temperatures, making them ideal for industrial applications that demand consistent performance.
   • The high wear resistance ensures that the die remains sharp for an extended period, even in continuous use, reducing downtime and the need for frequent tool replacements.
5. Circular Die Design:
   • The circular design of this die allows for use on external threading of pipes, rods, and other cylindrical components. The circular shape provides a uniform and smooth cutting action as the die rotates around the workpiece.
   • This design is compatible with various threading tools, including manual die holders, lathe machines, and other threading machines, offering flexibility and adaptability for different threading operations.

Applications:

• Pipe Threading: The 1 1/4" NPT threads are commonly used for medium to large-scale piping systems, particularly in industries that require secure, high-performance connections. These systems can include plumbing, gas, hydraulic, and oil & gas piping systems, where leak-proof connections are critical.
• Heavy Industrial Applications: This die is ideal for use in industries that require precise, durable threading of 1 1/4-inch pipes, such as construction, automotive, manufacturing, and chemical processing industries.
• High-Pressure Systems: NPT threads are essential in high-pressure environments because their tapered design forms a tight seal that resists leaks, which is critical in systems that transport fluids, gases, or other pressurized substances.

Advantages:

• Durable and Long-Lasting: The High-Speed Steel (HSS) construction of this die ensures that it remains sharp and effective for an extended period, even when used in heavy-duty, high-speed cutting operations. This durability reduces the frequency of tool changes and improves overall productivity.
• Precision and Accuracy: The 11 1/2 TPI fine pitch ensures that threads are cut with high precision, which is essential for secure, leak-proof connections in critical applications like hydraulic systems and gas lines.
• Leak-Proof Sealing: The NPT tapered thread design guarantees that the threads will form a tight, secure connection, essential for fluid and gas systems where leakage could cause serious safety concerns or system inefficiencies.
• Versatile and Stable: The 3-inch diameter provides ample support and stability, reducing the likelihood of uneven cutting or thread deformation, making it perfect for use with larger pipes and components.
• Time Efficiency: The die's HSS material offers extended service life, ensuring that users can complete multiple threading jobs without needing to replace or sharpen the tool frequently, reducing downtime.

Summary:

The NKP 1 1/4" x 11 1/2 NPT 3 Inch Dia High-Speed Steel Circular Die is a high-performance, durable tool designed for precision cutting of 1 1/4-inch NPT tapered threads. Constructed from High-Speed Steel, it offers superior wear resistance, ensuring long-lasting performance even in heavy-duty industrial applications. The 11 1/2 TPI fine pitch provides accurate and tight threading for leak-proof connections, making it ideal for high-pressure systems in industries like plumbing, gas, and hydraulic applications. The 3-inch diameter enhances stability and ensures a precise and reliable threading process, making this die essential for creating secure, high-performance connections in a wide range of industrial systems.
