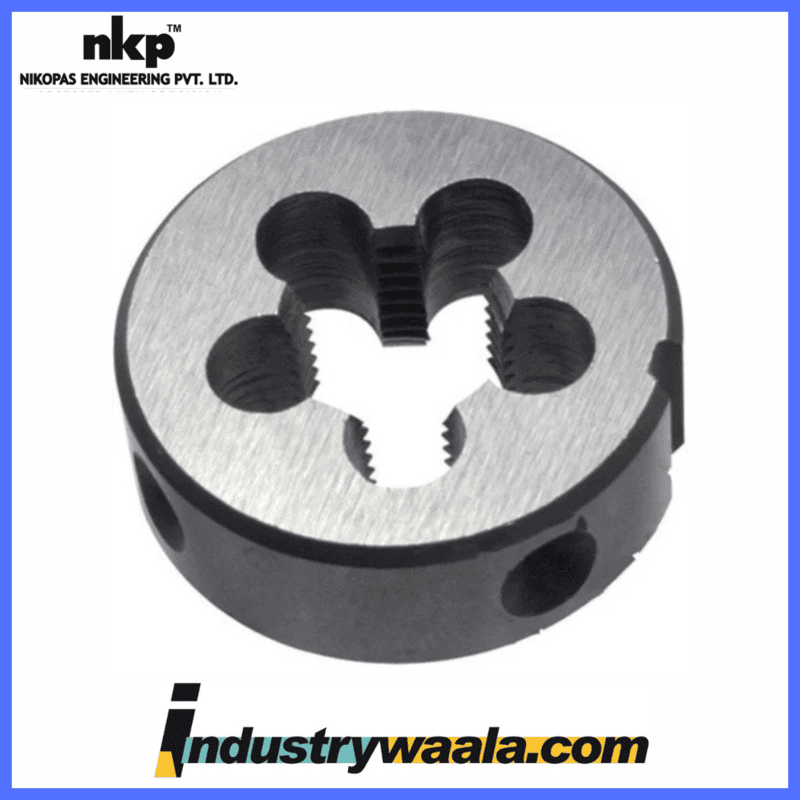

NKP 1 1/4"x 11 BSPT 3 Inch Dia Carbon Steel Circular Dies

The NKP 1 1/4″ x 11 BSPT 3 Inch Dia Carbon Steel Circular Dies are specialized threading tools designed for cutting BSPT (British Standard Pipe Tapered) threads on 1 1/4-inch diameter pipes or rods. Here’s a detailed breakdown of the features and specifications of this die:

1. NKP (Brand/Type):

• NKP refers to the brand or product series of the die. NKP dies are renowned for their reliability, precision, and high-performance capabilities. These dies are specifically designed to deliver accurate and clean threads in industrial, mechanical, and plumbing applications.

2. 1 1/4″ x 11 BSPT:

• 1 1/4″ x 11 BSPT refers to the size and thread type of the die:
  • 1 1/4″ refers to the diameter of the pipe or rod that the die is designed to cut threads on. It’s for 1 1/4-inch (31.75 mm) diameter materials.
  • 11 BSPT refers to British Standard Pipe Tapered (BSPT) threads, a commonly used standard for pipes in the UK and many other regions. 11 refers to the number of threads per inch (TPI), which helps determine the thread pitch. BSPT threads are tapered, meaning the diameter of the thread decreases as the die cuts along the length of the material, providing a tight, leak-proof seal when threaded together.

3. 3 Inch Dia:

• The 3-inch diameter (approximately 3.000 inches or 76.2 mm) refers to the diameter of the die itself.
• The larger diameter of the die allows it to cut threads on larger pipes, fittings, or rods that require a 1 1/4-inch BSPT thread.

4. Carbon Steel:

• The die is made of carbon steel, which is known for its strength, durability, and resistance to wear.
• Carbon steel is a preferred material for threading dies because it provides long-lasting performance and can withstand the mechanical stresses associated with cutting threads on tougher materials.

5. Circular Dies:

• Circular dies are round, tool-like devices used for cutting external threads on rods, pipes, or bolts.
• They are typically used with a die stock, a holding tool that allows the die to rotate as it cuts threads onto the workpiece.
• Circular dies are essential for creating standardized threads and are used in various industries, such as mechanical, plumbing, and automotive.

Applications:

• Pipe Threading: The die is used for cutting BSPT threads on 1 1/4-inch diameter pipes or rods. This is commonly required for plumbing systems, oil and gas systems, and fluid or gas transport where tight, leak-proof seals are crucial.
• Industrial Use: Ideal for industrial applications where larger diameter threaded connections are needed. This die is suitable for hydraulic systems, piping applications, and creating connections in heavy-duty machinery.
• Mechanical and Plumbing Work: Commonly used in applications that require precision threading for components like valves, fittings, and flanges in various mechanical or plumbing systems.
• Fluid and Gas Systems: BSPT threads are typically used in fluid and gas systems to ensure a secure and leak-resistant connection. The tapered nature of the threads creates a tight seal between two threaded components.

Key Features:

• Large Threading Capacity: The 3-inch diameter die is designed for larger pipes and fittings with 1 1/4-inch BSPT threads, making it ideal for industrial-scale applications.
• Durability: Made from carbon steel, the die is highly resistant to wear and provides long-lasting service, even in heavy-duty threading applications.
• Precision: The BSPT taper ensures that the threads cut by the die create a tight, leak-proof seal, which is critical in fluid, gas, and pressure-related applications.
• Versatility: Suitable for a wide range of applications, including plumbing, piping, hydraulic systems, and mechanical components.

Conclusion:

The NKP 1 1/4″ x 11 BSPT 3 Inch Dia Carbon Steel Circular Die is a heavy-duty, precision threading tool designed to cut BSPT threads on 1 1/4-inch diameter pipes or related components. With a 3-inch diameter and carbon steel construction, this die is built to handle large-scale, industrial threading jobs that require strength, accuracy, and durability. The BSPT threads ensure that the die produces tapered threads, creating tight, leak-resistant seals for use in fluid and gas systems. This die is perfect for mechanical, plumbing, and industrial applications that require large-diameter threading with precision.
