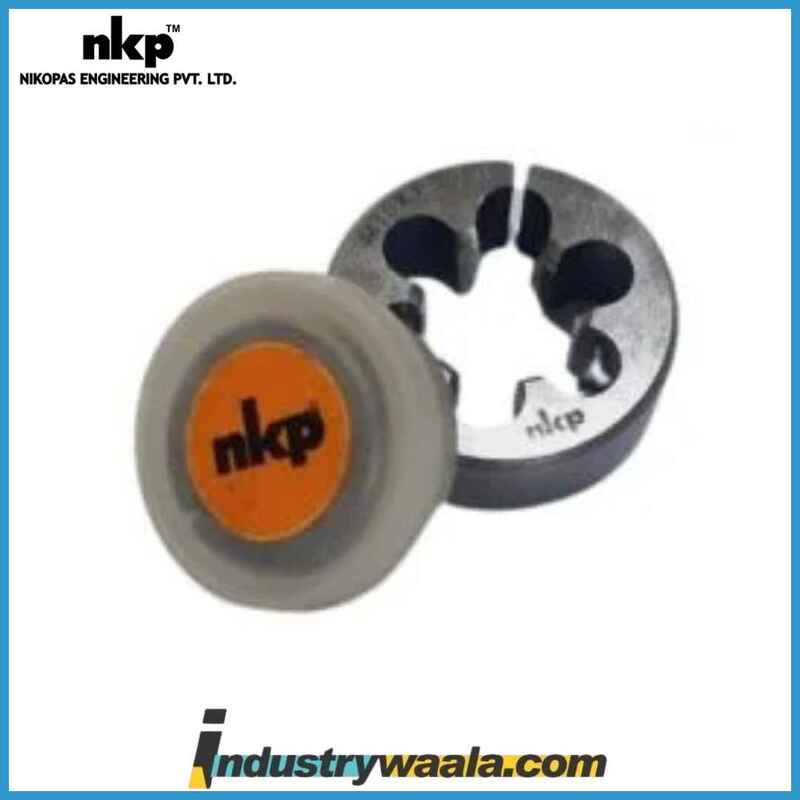

NKP 1.1/8 BS CYCLE 26 TPI 2 Inch Dia Carbon Steel Circular Dies

The NKP 1.1/8 BS CYCLE 26 TPI 2 Inch Dia Carbon Steel Circular Dies is a high-precision cutting tool designed for creating BS Cycle (British Standard Cycle) threads on components such as brass fittings, nuts, bolts, and other mechanical parts. With a 26 TPI (Teeth Per Inch) pitch, this die produces fine threads that are critical for achieving tight, strong, and reliable connections in mechanical and industrial applications, especially in the bicycle and automotive industries.

Key Features:

1. NKP Brand and Tool Series:
   • NKP is a well-respected brand known for manufacturing high-quality industrial tools. This die, part of their tool series, is engineered for precision, durability, and performance in demanding industrial applications.
2. 1.1/8 BS CYCLE (Thread Type and Size):
   • The 1.1/8-inch size refers to the diameter of the workpiece for which the die is designed. This size is perfect for cutting BS Cycle threads, which are widely used in the bicycle industry, specifically for creating threads on bicycle components like pedals, cranksets, headsets, and bottom brackets.
   • BS Cycle Threads are designed for components requiring precise, durable threading to ensure secure, long-lasting connections that handle regular stress and wear.
3. 26 TPI (Teeth Per Inch):
   • The 26 TPI pitch indicates that this die creates fine threads, which are more closely spaced. Fine threads are used where strength, precision, and tight connections are necessary. In applications like bicycle component assembly, fine threads ensure a more secure and tight-fitting connection that can withstand vibration and movement.
   • Fine threads also have the added benefit of being able to achieve higher levels of precision in the threading process, which is important in applications where small tolerances are critical.
4. 2 Inch Diameter (Die Size):
   • The 2-inch diameter of the die ensures stability and uniform cutting, providing consistent results throughout the threading process. A larger die size helps maintain smooth cuts and contributes to more accurate and reliable thread formation, essential for achieving the desired fit and performance in threaded components.
   • The 2-inch diameter is well-suited for cutting 1.1/8-inch BS Cycle threads, ensuring the die can effectively handle and stabilize the threading task.
5. Carbon Steel Construction:
   • The die is made from carbon steel, a material known for its strength, durability, and resilience. Carbon steel dies are particularly effective at maintaining sharp cutting edges and resist wear over time, even under heavy-duty, continuous use. This is essential for industries requiring long-lasting tools capable of delivering precise cuts over extended periods.
   • Carbon steel also provides enhanced resistance to corrosion and abrasion, which is beneficial for ensuring long-term performance, especially in environments where the die may come into contact with various oils, chemicals, or moisture.
6. Circular Die Design:
   • The circular design of this die ensures that cutting forces are distributed evenly, preventing wobbling and ensuring uniform, smooth thread formation. The design allows for efficient cutting, resulting in threads that meet high standards of precision and quality.
   • This design also promotes stability during the threading process, which is crucial when working with materials that require fine, precise threads.

Applications:

• Bicycle Industry:
  • The primary application for the NKP 1.1/8 BS CYCLE 26 TPI 2 Inch Dia Carbon Steel Circular Dies is in the bicycle industry. The BS Cycle thread is used for threaded components like pedals, bottom brackets, and cranksets. These components require precise, fine threads to ensure secure, long-lasting assemblies.
  • The die is suitable for bicycle repair shops, manufacturers, and custom builders who need to cut threads for bicycle components that need to withstand the stresses of cycling.
• Mechanical Assemblies:
  • The die can also be used in other mechanical assemblies where fine threads are necessary for secure, tight connections. This could include automotive or engineering applications where components with BS Cycle threads are required.
• Precision Threading:
  • This die is ideal for any application that demands high-precision threading, where the threads must be fine, accurate, and secure. The die’s ability to produce 26 TPI threads makes it highly valuable in applications where tight tolerances are critical.

Advantages:

• Durability and Longevity: Made from carbon steel, the die offers long-lasting performance even in high-volume and high-stress environments.
• Precision and Accuracy: The fine 26 TPI pitch ensures threads are cut with the precision necessary for tight, reliable connections, especially in high-precision applications like bicycle assembly.
• Versatility: While primarily used in the bicycle industry, the die’s features make it useful for a range of mechanical and industrial applications that require fine, secure threads.
• Efficiency: The circular design of the die ensures smooth and efficient cutting, allowing for high-quality thread formation with minimal effort and time.

Conclusion:

The NKP 1.1/8 BS CYCLE 26 TPI 2 Inch Dia Carbon Steel Circular Dies is an essential tool for anyone working with BS Cycle threads in the bicycle industry, mechanical assemblies, and precision engineering applications. Made from carbon steel, this die offers durability, longevity, and consistent performance. Its 26 TPI pitch ensures the creation of fine threads for secure, tight, and reliable connections. With its 2-inch diameter and circular design, the die guarantees stable, accurate thread cutting, making it a valuable tool for bicycle manufacturers, repair shops, and custom builders alike.
