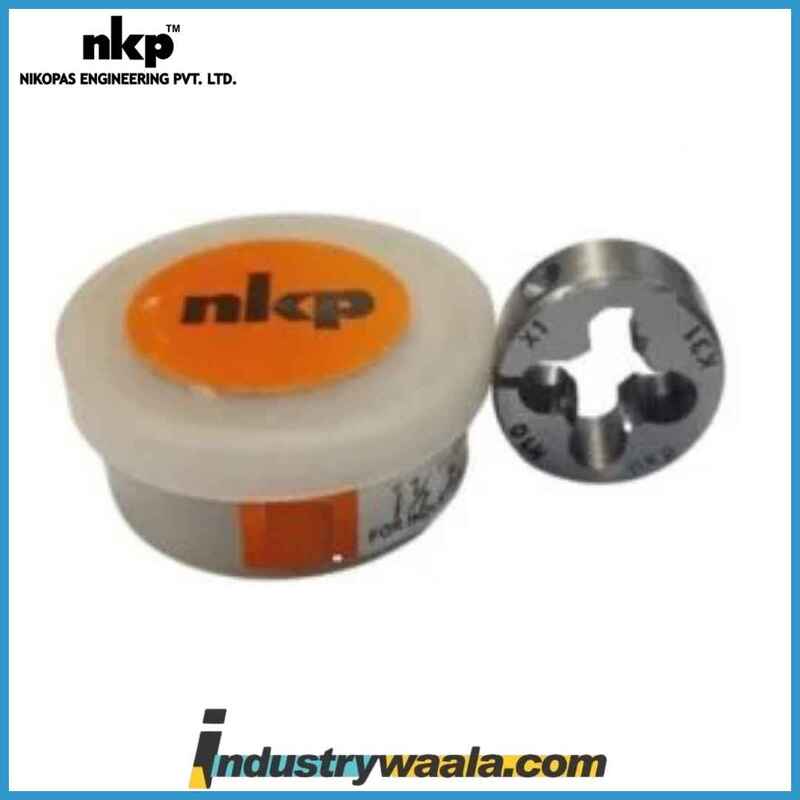

NKP 1/16 x 28 BSPT 1 Inch Dia High Speed Steel Circular Dies

The NKP 1/16 x 28 BSPT 1 Inch Dia High-Speed Steel Circular Die is a premium cutting tool designed for precision threading in industrial applications, specifically for BSPT (British Standard Pipe Tapered) threads. Below is a detailed description of this tool:

Detailed Description:

1. NKP: Likely refers to the manufacturer's name or product line designation. NKP could denote a specific series of threading dies, known for their durability and performance. It indicates the tool's manufacturer or brand, which is typically specialized in the production of high-quality, reliable cutting tools.
2. 1/16 x 28 BSPT:
   • 1/16 refers to the nominal size of the thread being cut, which is 1/16 inch. This indicates the external diameter of the pipe or component being threaded.
   • 28 indicates the number of threads per inch (TPI). In this case, the die cuts 28 threads within each inch of length, offering fine threads that are commonly used in plumbing, pipe fitting, and other mechanical systems requiring precise thread engagement.
   • BSPT (British Standard Pipe Tapered) is a type of pipe threading that ensures a tapered thread. This means that the diameter of the thread decreases along the length of the thread, providing a tighter, leak-proof seal when the threaded parts are connected. BSPT threads are widely used in piping systems for gas, water, and industrial fluid transport.
3. 1 Inch Diameter:
   • The die has an overall outer diameter of 1 inch. This measurement refers to the size of the die, making it compatible with a variety of threading tools and machine setups. The 1-inch diameter allows the die to be used for cutting threads on larger diameter pipes or components that require threading.
4. High-Speed Steel (HSS):
   • High-Speed Steel (HSS) is the material used for this circular die. HSS is known for its exceptional hardness and resistance to wear and heat, making it ideal for cutting tools. It maintains its sharpness even at high cutting speeds and temperatures. This durability allows the die to last longer, even when used on tough materials such as metals and alloys, making it ideal for industrial and mechanical applications.
5. Circular Die Design:
   • The die is circular in shape, designed to cut threads on external surfaces of pipes, rods, and other cylindrical materials. The circular design enables smooth and efficient threading as the die is rotated around the workpiece. Circular dies are typically used with lathe machines, hand-held die holders, or other threading equipment.

Applications:

• Pipe Threading: This die is ideal for creating BSPT threads in piping systems, commonly used in plumbing, gas, and hydraulic systems. The tapered design of the BSPT threads ensures a tight seal when connecting pipes and fittings, making it ideal for preventing leaks.
• Precision Thread Cutting: The 28 threads per inch (TPI) allows for fine, accurate threads, suitable for applications where high precision is required, such as in manufacturing or repair of threaded components.
• Manufacturing & Fabrication: This die is used in the machining of custom or repair threaded parts in industries like automotive, construction, and aerospace, where high precision is essential.

Advantages:

• High Durability: The use of High-Speed Steel ensures that the die resists wear and heat, providing a long service life, even in demanding threading applications.
• Precision: With 28 threads per inch, the die ensures finely cut threads that provide excellent fit and function, important for high-pressure systems where tight, leak-proof connections are needed.
• Versatility: The 1-inch diameter allows this die to be used in a wide variety of applications, suitable for different pipe sizes and threading systems, enhancing its flexibility across multiple industries.
• Leak-Proof Seal: The BSPT thread type is specifically designed for tapered fittings, ensuring that when two BSPT-threaded components are joined, they form a reliable, leak-proof seal, making it ideal for fluid and gas piping applications.

Summary:

The NKP 1/16 x 28 BSPT 1 Inch Dia High-Speed Steel Circular Die is a precision cutting tool designed for creating 1/16-inch BSPT tapered threads with 28 threads per inch. Constructed from high-speed steel, it offers excellent durability and wear resistance, making it ideal for use in pipe threading, mechanical applications, and precision machining. The 1-inch diameter makes it suitable for larger threaded components, ensuring a reliable, leak-proof seal for piping systems. This die is perfect for use in industries like plumbing, hydraulics, automotive, and manufacturing.
