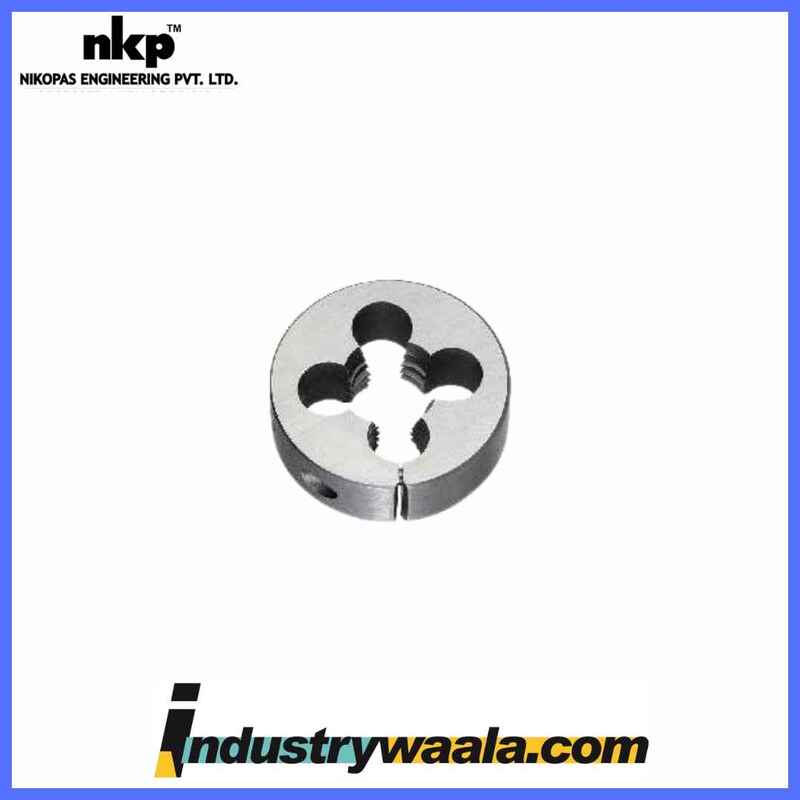

NKP 1/4 UNC LH 20 TPI 1 Inch Dia Left Hand Carbon Steel Circular Dies

The NKP 1/4 UNC LH 20 TPI 1 Inch Dia Left Hand Carbon Steel Circular Die is a tool used for cutting threads on metal parts, specifically designed for left-hand threading. Here's a detailed breakdown of its features and specifications:

1. NKP (Brand or Manufacturer Code)

• NKP is likely the brand or manufacturer's code for the die, which represents the quality and reliability associated with the product. The brand is typically known for producing durable and precise cutting tools used in various machining and threading operations.

2. 1/4 UNC (Unified National Coarse)

• 1/4 refers to the size of the threads that this die is designed to cut, specifically 1/4 inch (0.250 inches) in diameter.
• UNC stands for Unified National Coarse, a thread standard commonly used in the U.S. and Canada. Coarse threads are used when a stronger, more durable connection is needed and also provide easier assembly and disassembly compared to finer threads.
• The die cuts 1/4-inch UNC threads, which are common in standard fasteners like bolts and nuts.

3. LH (Left Hand Thread)

• This die is designed to cut left-hand threads, meaning the threads spiral in the opposite direction compared to standard right-hand threads.
• Left-hand threads are used in applications where there is a risk of the fastener loosening under normal right-hand threading, such as in rotating parts or situations where the fastener experiences force in the opposite direction.
• Common applications include bicycle pedals, some automotive components, and various mechanical machinery parts.

4. 20 TPI (Threads Per Inch)

• 20 TPI indicates the number of threads per inch. In this case, the die cuts threads at a density of 20 threads per inch, which is considered a fine thread for a 1/4-inch diameter bolt.
• Fine threads, such as those with 20 TPI, provide a tighter and more secure fit than coarser threads. They are often used when greater precision is required, or when a stronger, more reliable connection is necessary, particularly in small, high-stress applications.

5. 1 Inch Diameter

• The 1-inch diameter refers to the overall size of the die itself, not the thread size it cuts. This ensures that the die fits properly into a die holder or threading tool for use in threading operations.
• The 1-inch diameter is a standard size for circular dies used in general threading, ensuring it is versatile enough for use in various threading tools.

6. Material: Carbon Steel

• The die is made from carbon steel, a strong and durable material often used in cutting tools due to its ability to maintain sharpness and resist wear over time.
• Carbon steel provides the strength necessary to cut through harder metals such as steel, aluminum, and brass without quickly dulling, making it ideal for general-purpose threading operations.

7. Circular Die

• The die has a circular shape, which is typical for threading dies. It is a round, flat disk that is used in a die holder or threading tool.
• The circular design ensures smooth rotation during use, allowing the die to cut consistent, even threads along the workpiece.

Applications

• Metalworking: The die is used to cut 1/4-inch UNC left-hand threads in a variety of materials, including metals such as steel, aluminum, and brass.
• Automotive and Machinery: Left-hand threads are commonly used in automotive applications, such as left-hand bicycle pedals or parts that are exposed to vibration and movement. The die is also useful in machinery components where left-handed threads are necessary to prevent unintentional loosening.
• Repairs and Custom Manufacturing: It is ideal for repairing or creating left-hand threaded fasteners for custom machinery or equipment, as well as replacing damaged or worn threads in metal parts.

Advantages

• Precision and Strength: The die is designed to create clean, accurate, and strong threads, ensuring that the finished threads fit securely and can handle stress and load.
• Left-Hand Threading: The left-hand thread feature is essential for applications where the threaded component needs to rotate counterclockwise, preventing the fastener from loosening when subjected to movement or rotation.
• Durability: Made from carbon steel, the die is robust and built to withstand frequent use without prematurely wearing down.
• Versatility: With a 20 TPI fine thread, the die is versatile for a wide range of applications that require a fine, strong thread, offering both performance and reliability in creating and repairing threaded fasteners.

Summary

The NKP 1/4 UNC LH 20 TPI 1 Inch Dia Left Hand Carbon Steel Circular Die is a high-quality, durable tool used for cutting left-hand threads on 1/4-inch UNC threads. It is designed for applications requiring fine threads with 20 TPI for greater precision and strength, particularly in smaller components. The die is made from carbon steel, providing long-lasting performance and resistance to wear, making it suitable for a variety of automotive, machinery, and metalworking applications. This die is particularly useful when left-hand threading is required to prevent loosening due to rotational forces.
