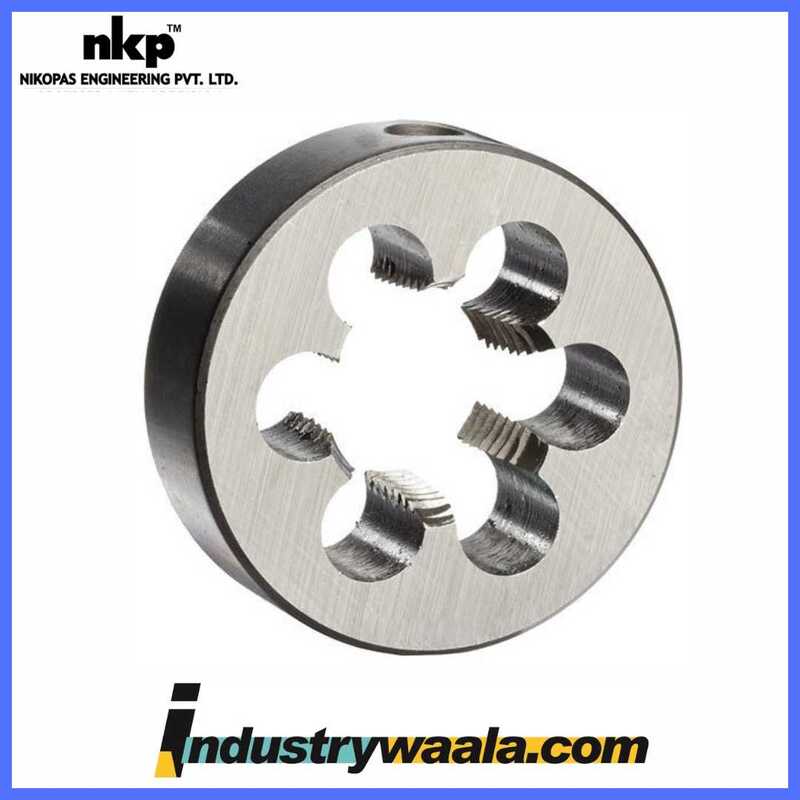

NKP 1/4 x 18 NPT 1.5/16 Inch Dia Carbon Steel Circular Dies

The NKP 1/4 x 18 NPT 1.5/16 Inch Dia Carbon Steel Circular Dies are precision tools designed for cutting NPT (National Pipe Tapered) threads on 1/4-inch diameter pipes or rods. These dies are made from high-quality carbon steel, ensuring they deliver accurate, durable, and long-lasting performance in various threading applications. Below is a detailed breakdown of the product’s key features and specifications:

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP is a well-known brand in the threading tool industry, recognized for producing high-quality and reliable threading tools. The NKP dies are engineered for precision, long-lasting durability, and optimal performance, making them a popular choice in industrial applications that require threading.

2. 1/4 x 18 NPT

• 1/4 x 18 NPT indicates the size and thread type:
  • 1/4″ refers to the diameter of the pipe or rod, which is 1/4 inch (approximately 6.35 mm).
  • 18 NPT indicates the use of NPT (National Pipe Tapered) threads, with 18 threads per inch (TPI). NPT threads are tapered, which ensures a tight and leak-proof seal when components are threaded together. These threads are specifically designed for use in pipe and fluid systems, where sealing under pressure is essential.

3. 1.5/16 Inch Dia

• The 1.5/16-inch diameter (approximately 41.28 mm) refers to the outer diameter of the circular die. A larger die diameter provides stability and alignment during the threading process, allowing for accurate and uniform cutting of threads. This helps in producing precise threads on smaller diameter pipes such as 1/4-inch diameter pipes.

4. Carbon Steel Construction

• The die is made from carbon steel, a material known for its strength, resilience, and abrasion resistance. Carbon steel is an excellent choice for threading tools, as it maintains its sharp cutting edge for longer periods, resists wear, and performs well even under heavy-duty usage in industrial environments.

5. Circular Dies

• Circular dies are used for cutting external threads on cylindrical workpieces like pipes or rods. These dies are mounted in a die stock or holder and rotated to create threads. The circular shape ensures that the threads are cut evenly and accurately, ensuring the integrity of the threaded connection and a secure fit.

Applications:

• Pipe Threading: The NKP 1/4 x 18 NPT 1.5/16 Inch Dia Carbon Steel Circular Die is designed for cutting NPT threads on 1/4-inch diameter pipes. These pipes are used in a variety of systems, including plumbing, gas systems, hydraulic systems, and pneumatic systems, where leak-proof seals are critical.
• Hydraulic and Pneumatic Systems: This die is ideal for creating high-pressure, leak-proof connections in hydraulic and pneumatic systems. The NPT threads ensure a tight fit, making them perfect for applications where tight seals are necessary to prevent leaks in pressure systems.
• Fluid and Gas Systems: The NPT threads created with this die provide secure and reliable seals in fluid and gas systems, ensuring system integrity under pressure.
• Industrial Applications: The die is suitable for industrial applications involving the cutting of threads on components like fittings, connectors, and valves, ensuring the parts fit together securely and remain tight under various conditions.

Key Features:

• Threading Capacity: The 1.5/16-inch die diameter ensures stability during the threading process, allowing for accurate and uniform thread cutting on 1/4-inch diameter pipes. This die size helps in producing threads that meet exact specifications.
• Durability: The carbon steel construction of the die ensures that it remains sharp and effective for long periods of use, even under harsh working conditions. It is resistant to wear and abrasion, making it ideal for industrial environments.
• Precision: The 18 TPI NPT threads provide fine, precise threads that create tight and secure seals. The tapered design of the threads ensures that the connection is leak-proof, making it suitable for high-pressure systems.
• Versatility: This die is ideal for applications in plumbing, gas systems, hydraulic systems, pneumatic systems, and mechanical systems that require high-quality, durable, and accurate threaded connections.

Conclusion:

The NKP 1/4 x 18 NPT 1.5/16 Inch Dia Carbon Steel Circular Die is a precision threading tool designed for cutting NPT threads on 1/4-inch diameter pipes. Constructed from carbon steel, it offers excellent durability, precision, and long-lasting performance. The 18 TPI NPT threads create tight, leak-proof connections, making this die ideal for use in plumbing, gas systems, hydraulic systems, and pneumatic systems. The 1.5/16-inch die diameter ensures stability and alignment during the threading process, delivering high-quality results. This die is perfect for professionals seeking a reliable and durable tool for creating precise, high-quality threads on 1/4-inch diameter pipes.
