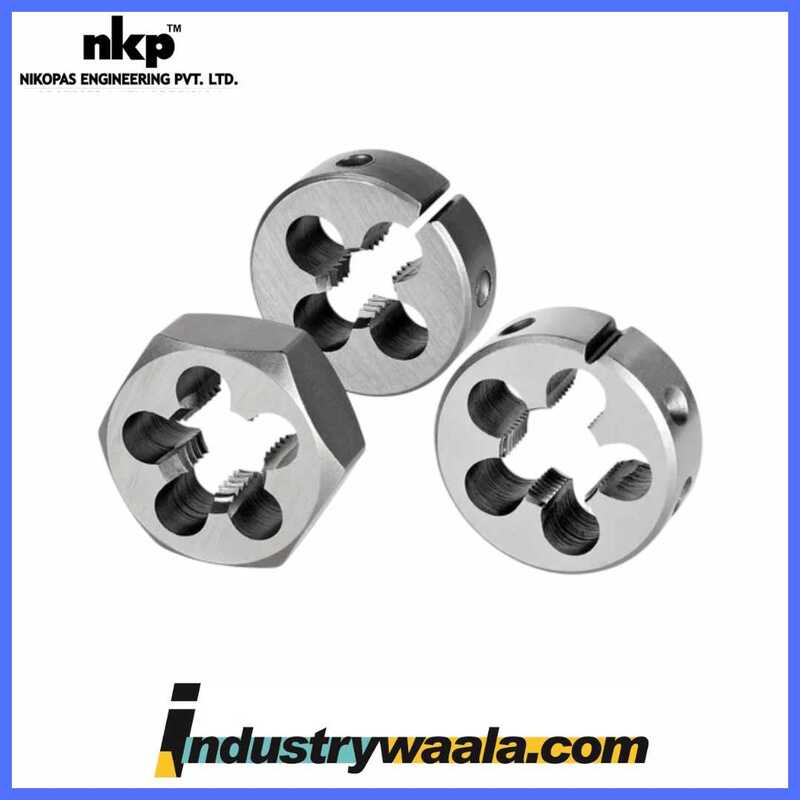

NKP 1/4 x 18 NPT 2 Inch Dia Carbon Steel Circular Dies

The NKP 1/4 x 18 NPT 2 Inch Dia Carbon Steel Circular Dies are designed for cutting NPT (National Pipe Tapered) threads on 1/4-inch diameter pipes or rods. Made from carbon steel, these dies are engineered for precision, durability, and long-lasting performance in industrial applications. Here's a detailed breakdown of the key features and specifications of this threading die:

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP refers to the brand or type of the die, recognized for its high-quality and precise threading tools. NKP dies are trusted in the industry for their reliability, performance, and ability to create uniform and durable threads.

2. 1/4 x 18 NPT

• 1/4 x 18 NPT specifies the size and thread pattern:
  • 1/4″ refers to the diameter of the pipe or rod being threaded, which is 1/4 inch (approximately 6.35 mm).
  • 18 NPT indicates the NPT (National Pipe Tapered) thread pattern with 18 threads per inch (TPI). NPT threads are tapered, ensuring a tight, leak-proof seal when threaded components are connected. The 18 TPI thread pitch is ideal for creating fine, precise threads with a medium thread pitch that provides a secure and leak-resistant seal.

3. 2 Inch Dia

• The 2-inch diameter (approximately 50.8 mm) refers to the diameter of the circular die. This larger die diameter provides greater stability and alignment during the threading process, allowing for the accurate and consistent creation of threads on the 1/4-inch diameter pipe or rod.

4. Carbon Steel Construction

• The die is made from carbon steel, known for its strength, resilience, and resistance to wear and corrosion. Carbon steel is a highly effective material for threading tools, offering durability even under harsh conditions and repetitive use. It helps maintain the sharpness of the die and ensures long-term performance.

5. Circular Dies

• Circular dies are used for cutting external threads on cylindrical workpieces, such as pipes, rods, or bolts. When mounted in a die stock or holder, the die rotates to cut the threads into the workpiece. The circular shape ensures uniform and precise threads, which are crucial for applications requiring exact specifications.

Applications:

• Pipe Threading: The NKP 1/4 x 18 NPT 2 Inch Dia Carbon Steel Circular Die is designed for cutting NPT threads on 1/4-inch diameter pipes. These pipes are commonly used in plumbing, gas systems, hydraulic systems, and pneumatic applications. The NPT threads ensure tight, leak-proof seals for safe and secure connections.
• Hydraulic and Pneumatic Systems: This die is ideal for hydraulic and pneumatic systems, where high-pressure and secure, leak-proof connections are critical for safe operation. The NPT threads provide the necessary sealing required in these systems.
• Industrial and Mechanical Systems: The die can also be used for threading components like fittings, valves, and connectors in industrial and mechanical systems where precise and durable threads are needed to maintain the integrity of the system.
• Fluid and Gas Systems: The NPT threads produced by this die ensure a tight, leak-proof seal, making it suitable for use in fluid and gas systems, where safety, security, and reliability are paramount.

Key Features:

• Threading Capacity: The 2-inch die diameter provides stability and ensures alignment during the threading process. This results in uniform, high-quality threads on the 1/4-inch diameter pipes.
• Durability: Constructed from carbon steel, the die is resistant to wear, abrasion, and corrosion, making it ideal for repeated use in demanding industrial applications.
• Precision: The 18 TPI NPT threads offer fine, precise threading for tight, secure connections. The fine pitch ensures that the threads are formed with accuracy and consistency.
• Versatility: The die is suitable for a wide variety of applications, including plumbing, hydraulics, gas systems, and mechanical systems, where high-quality, reliable threads are essential.

Conclusion:

The NKP 1/4 x 18 NPT 2 Inch Dia Carbon Steel Circular Die is an essential tool for cutting NPT threads on 1/4-inch diameter pipes. Made from carbon steel, the die is designed for long-lasting performance, precision, and durability. The 18 TPI NPT thread pattern ensures that threads are formed accurately, providing tight, leak-proof seals in a wide range of applications, including plumbing, hydraulics, gas systems, and mechanical systems. The 2-inch die diameter ensures proper alignment during the threading process, allowing for consistent and precise threads. This die is perfect for professionals seeking a reliable tool for creating high-quality, durable threads on smaller diameter pipes or rods.
