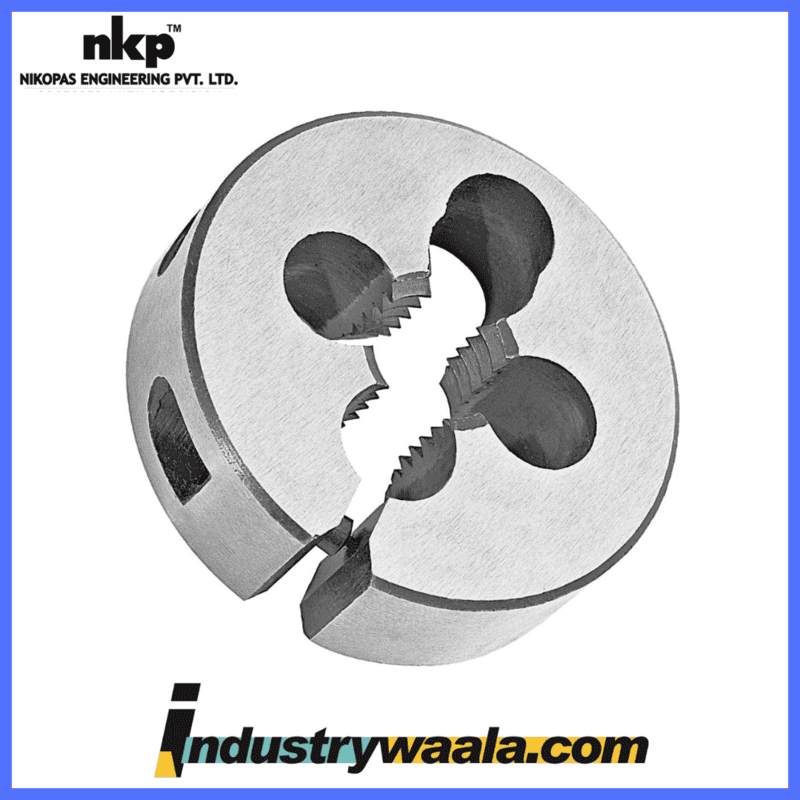

NKP 1/4 x 19 BSPT 1.1/2 Inch Dia Carbon Steel Circular Dies

The NKP 1/4 x 19 BSPT 1.1/2 Inch Dia Carbon Steel Circular Dies refer to a specific type of die used for threading or cutting external threads on pipes or rods. Below is a detailed breakdown of the components and features:

1. NKP (Brand/Type):

• NKP is the brand or series identifier, likely referring to a specific manufacturer or product line specializing in threading tools. The company or product line might offer precision and durable threading tools, designed for industrial applications.

2. 1/4 x 19 BSPT:

• 1/4 refers to the nominal size of the BSPT (British Standard Pipe Tapered) thread. In this case, it is 1/4 inch.
• 19 BSPT denotes the threads per inch (TPI) and that the die is designed to create a BSPT (British Standard Pipe Taper) thread. BSPT is a standard for pipe threading used in industries for creating a tight, leak-free seal between pipes and fittings.
  • BSPT threads have a tapered profile, meaning the diameter of the thread decreases along its length. This allows for a tight, leak-resistant connection when the fitting is tightened.

3. 1.1/2 Inch Dia:

• This refers to the diameter of the die itself, which is 1.5 inches (or 1.1/2 inches). The die is circular, and the diameter of the die is the distance across its widest part.
• The size of the die ensures compatibility with a specific range of workpieces, such as pipes or rods that require the BSPT threading.

4. Carbon Steel:

• The material used for the die is carbon steel, a robust and durable metal alloy composed primarily of iron and carbon.
• Carbon steel is commonly used for manufacturing industrial tools due to its excellent strength, hardness, and ability to withstand wear and tear. It also has a good balance of cost and performance.
• Carbon steel dies are particularly useful for cutting threads on harder materials and in environments where strength and wear resistance are essential.

5. Circular Dies:

• Circular dies are tools with a round shape, typically used in a die set, to cut external threads onto a rod or pipe.
• They are used in conjunction with a die stock (a tool holder) to rotate the die and apply cutting pressure to the material.
• These dies are designed to create precise threads that match specific threading standards such as BSPT.

Applications:

• Pipe and fitting threading: This die is used to cut threads on pipes for creating threaded connections in plumbing, gas, or other industrial piping systems.
• Industrial Manufacturing: Commonly used in workshops, factories, and fieldwork where pipes and other materials need to be threaded for assembly.
• Maintenance and Repairs: Ideal for use by technicians to thread pipes during the maintenance or repair of pipe systems.

Key Features:

• Durability: The carbon steel construction ensures a long lifespan and resistance to wear, even when used for frequent threading tasks.
• Precision: The die creates precise, standardized BSPT threads, which are vital for ensuring leak-tight connections.
• Versatility: Suitable for threading a variety of pipe sizes and materials, providing flexibility in various industrial applications.

Conclusion:

The NKP 1/4 x 19 BSPT 1.1/2 Inch Dia Carbon Steel Circular Die is an essential tool for cutting BSPT threads, designed for professionals working with pipes and fittings. Its carbon steel construction ensures longevity, while its specific sizing makes it compatible with a range of threading tasks in industrial environments. The tapered BSPT threading ensures a reliable, secure fit for pipe systems.
