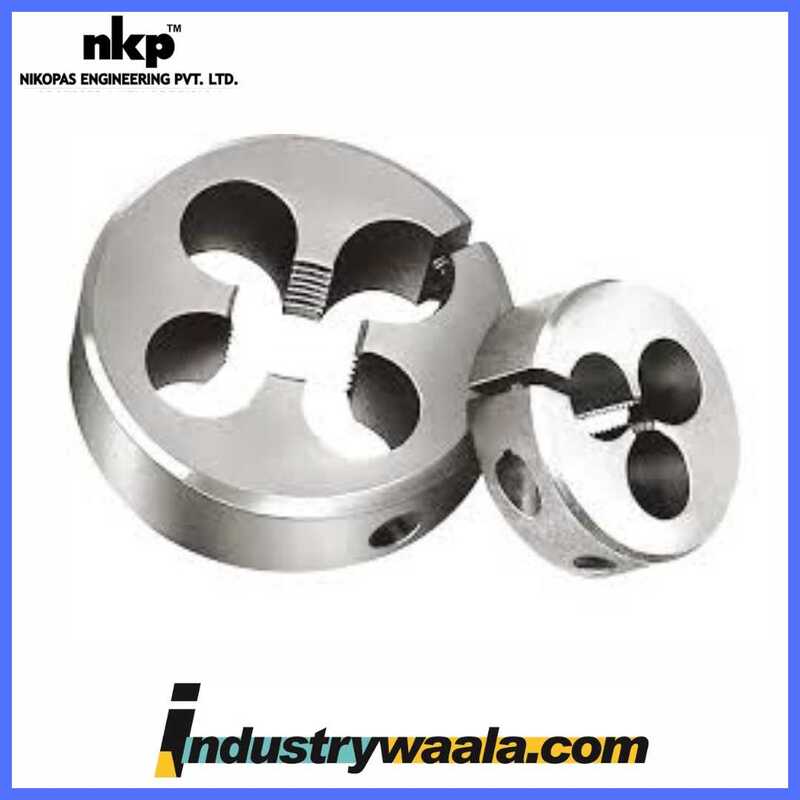

NKP 1/8 x 27 NPT 1 Inch Dia Carbon Steel Circular Dies

The NKP 1/8 x 27 NPT 1 Inch Dia Carbon Steel Circular Dies are precision-threading tools designed for cutting National Pipe Tapered (NPT) threads on 1/8-inch diameter pipes or rods. Made from high-quality carbon steel, these circular dies offer excellent durability, precision, and long-lasting performance. Below is a comprehensive breakdown of the product’s features, specifications, and potential applications.

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP is a renowned brand specializing in precision threading tools. Their products are known for high quality, durability, and performance in demanding industrial environments. The NKP dies are highly regarded for providing accurate and reliable thread cutting, making them ideal for use in plumbing, hydraulics, and mechanical systems.

2. 1/8 x 27 NPT

• 1/8 x 27 NPT indicates the thread size and type:
  • 1/8″ refers to the diameter of the pipe or rod (approximately 3.175 mm), indicating that the die is designed for threading 1/8-inch diameter pipes or rods.
  • 27 NPT refers to 27 threads per inch (TPI) and National Pipe Tapered (NPT) threads. NPT threads are tapered, meaning the diameter of the pipe decreases slightly along the length of the pipe, ensuring a tight and leak-proof seal. These are particularly useful in applications where a secure, pressure-tight fit is needed.

3. 1 Inch Dia

• The 1-inch diameter (approximately 25.4 mm) refers to the outer diameter of the circular die. A larger die diameter offers stability and ensures that the die remains well-aligned during the threading process. This helps ensure that the threads are cut accurately and consistently on the workpiece, allowing for a secure and uniform thread connection.

4. Carbon Steel Construction

• These dies are made from carbon steel, known for its strength, resilience, and wear resistance. Carbon steel provides the dies with excellent durability, ensuring that they can maintain a sharp cutting edge over extended periods of use. It is an ideal material for threading tools used in high-demand environments.

5. Circular Dies

• Circular dies are tools used to create external threads on cylindrical objects like pipes, rods, and bolts. They are mounted in a die stock or holder and rotated to cut threads. The circular shape helps maintain uniformity and ensures that the threads are cut evenly, providing a precise and secure fit.

Applications:

• Pipe Threading: The NKP 1/8 x 27 NPT 1 Inch Dia Carbon Steel Circular Die is perfect for cutting NPT threads on 1/8-inch diameter pipes. NPT threads are commonly used in plumbing, gas systems, water systems, and pneumatic applications where secure, leak-proof threaded connections are crucial.
• Hydraulic and Pneumatic Systems: These dies are highly suitable for creating high-pressure connections in hydraulic and pneumatic systems. The 27 TPI NPT threads ensure a tight fit and reliable seal under high pressure, preventing leaks.
• Fluid and Gas Systems: The NPT threads are used widely in fluid and gas systems to ensure tight, secure connections that do not leak. The tapered threads allow for a tight seal in pipe fittings used for transporting fluids or gases.
• General Industrial Applications: These dies are useful in various mechanical and industrial systems where precise, durable threading is required for components like connectors, valves, and fittings.

Key Features:

• Threading Capacity: The 1-inch die diameter provides stability and allows for a secure hold during the threading process. This helps create uniform, accurate threads on 1/8-inch diameter pipes.
• Durability: The carbon steel construction ensures that the die can withstand continuous use while maintaining its cutting edge for long periods. The die resists wear and tear, ensuring reliable performance for a long lifespan.
• Precision: The 27 TPI NPT threads are ideal for creating tight, leak-proof seals. The tapered design of the threads ensures that they create a secure fit, even under high-pressure conditions.
• Versatility: This die is ideal for use in plumbing, hydraulic, pneumatic, and mechanical systems, offering versatility in various industries that require precise, leak-proof threaded connections.

Conclusion:

The NKP 1/8 x 27 NPT 1 Inch Dia Carbon Steel Circular Die is a premium tool for creating NPT threads on 1/8-inch diameter pipes. Constructed from high-quality carbon steel, it offers durability, precision, and long-lasting performance. With a 1-inch die diameter, it ensures stability and accurate thread cutting, while the 27 TPI NPT threads create tight, leak-proof connections. Whether used in plumbing, hydraulics, gas systems, or other industrial applications, this die is an essential tool for professionals who demand reliable, precise results when creating high-quality threaded connections.
