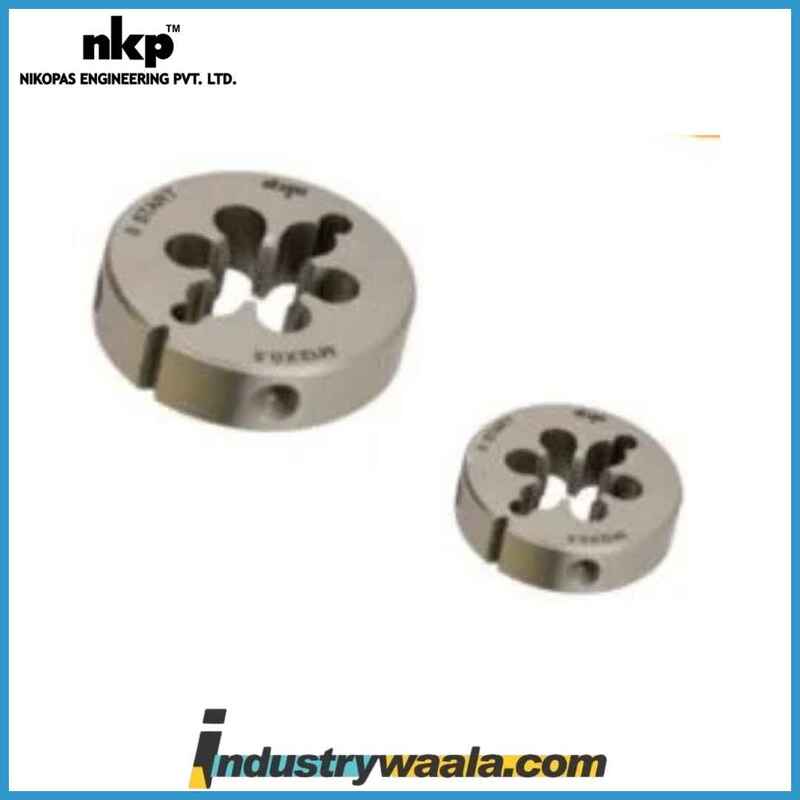

NKP 1" x 11 1/2 NPT 3 Inch Dia High Speed Steel Circular Dies

The NKP 1" x 11 1/2 NPT 3 Inch Dia High-Speed Steel Circular Die is a robust, high-performance tool designed for cutting 1-inch NPT (National Pipe Tapered) threads with 11 1/2 threads per inch (TPI). This die is intended for industrial and mechanical applications, offering precision and reliability in creating secure, leak-proof threaded connections. Below is a detailed breakdown of the product:

Detailed Description:

1. NKP: This likely refers to the manufacturer's brand or product series. NKP is known for producing high-quality threading tools designed for precision, durability, and reliability in demanding industrial environments.
2. 1" x 11 1/2 NPT:
   • 1" refers to the nominal size of the thread being cut, which is 1 inch in diameter. This is a common pipe size for medium-pressure systems, where secure connections are required for fluid and gas transport.
   • 11 1/2 TPI (Threads Per Inch) indicates the thread pitch. An 11 1/2 threads per inch pitch is relatively fine, ensuring a smooth and precise thread that contributes to tight, secure connections.
   • NPT (National Pipe Tapered) is the thread type used in the United States for tapered pipe threads. The taper ensures that the threads become progressively tighter as the components are screwed together, creating a leak-proof seal that is ideal for high-pressure systems.
3. 3 Inch Diameter:
   • The 3-inch diameter refers to the overall size of the die, which makes it suitable for threading pipes or components with a 1-inch nominal size. The larger diameter ensures stability during use, reducing vibrations and improving the precision of the threading process.
   • The 3-inch diameter die is perfect for cutting threads on medium-to-large pipes or fittings, often found in hydraulic, plumbing, and industrial piping systems.
4. High-Speed Steel (HSS):
   • Made from High-Speed Steel (HSS), this die is designed to handle heavy-duty, high-speed cutting operations while maintaining exceptional hardness, wear resistance, and heat resistance.
   • HSS tools are ideal for applications requiring continuous cutting or when working with harder materials. They retain their sharpness and cutting performance over time, extending the tool's lifespan and reducing the frequency of tool changes.
5. Circular Die Design:
   • The circular shape of the die is designed to be used for external threading on cylindrical objects such as pipes, rods, and other threaded components. The die rotates around the workpiece, cutting the precise threads needed for a proper fit.
   • This design allows for smooth, consistent cuts and is compatible with manual die holders, lathe machines, and other threading equipment, making the die versatile and adaptable to various threading methods.

Applications:

• Pipe Threading: The 1" NPT threads are commonly used in plumbing, gas, and hydraulic systems, especially in applications that require secure, leak-proof connections. The tapered threads form tight, reliable joints, making them ideal for medium-pressure fluid transport systems.
• Industrial Use: This die is designed for creating threads on medium-sized components, such as pipes, fittings, and valves, found in industries such as construction, oil and gas, automotive, and heavy machinery.
• High-Pressure Systems: The NPT thread design is specifically engineered for high-pressure systems where tight, leak-proof seals are required, making this die a critical tool for ensuring the integrity of fluid or gas transport systems.

Advantages:

• High Durability: Constructed from High-Speed Steel, the die is highly resistant to wear, heat, and abrasion, providing long-lasting performance even under challenging cutting conditions.
• Precision: With 11 1/2 TPI, this die provides fine, accurate threads that ensure a secure and reliable fit. This is essential in applications where tight connections are critical for the system's safety and performance.
• Leak-Proof Connections: The NPT tapered threads are specifically designed for creating tight, leak-proof seals, making them ideal for use in fluid and gas systems, where any leakage could compromise the system's integrity.
• Versatile Use: The 3-inch diameter makes this die ideal for cutting threads on a wide variety of pipes and fittings, suitable for medium-to-large applications in a range of industries.
• Reduced Downtime: The High-Speed Steel composition ensures that the die remains sharp and performs consistently over time, reducing the frequency of tool replacements and improving overall productivity.

Summary:

The NKP 1" x 11 1/2 NPT 3 Inch Dia High-Speed Steel Circular Die is a durable, precision threading tool designed to create 1-inch NPT tapered threads with 11 1/2 threads per inch. Constructed from High-Speed Steel, it ensures high resistance to wear, heat, and abrasion, making it ideal for use in plumbing, gas, hydraulic, and other high-pressure systems. The 3-inch diameter makes it suitable for threading medium-to-large pipes or fittings, providing a tight, leak-proof seal essential for fluid and gas transport systems. This die is built for durability, precision, and long-lasting performance, making it a crucial tool for industries requiring reliable and secure threaded connections.
