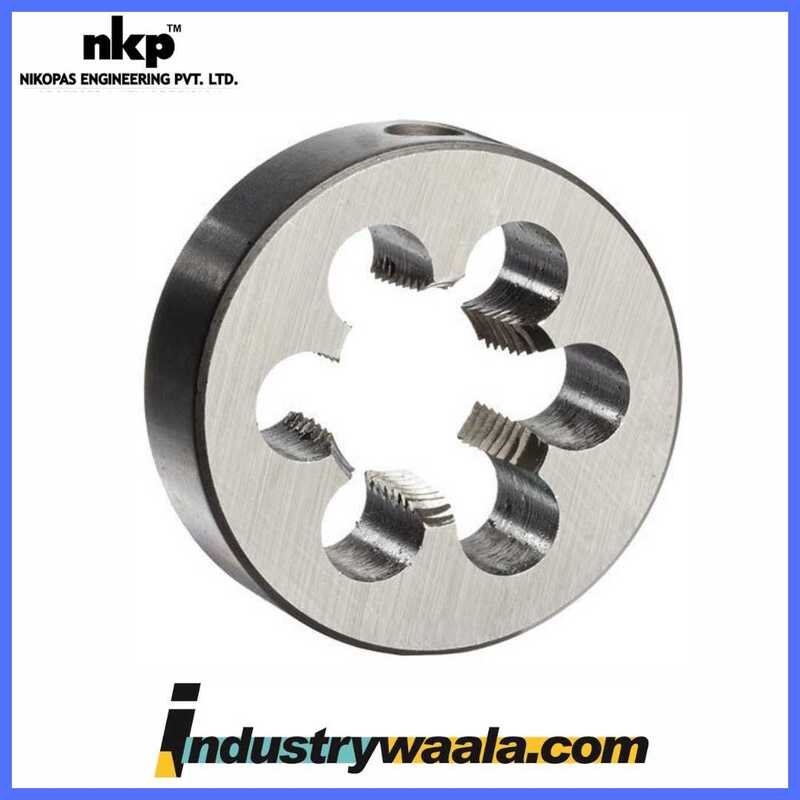

NKP 1" x 11 BSPT 2.1/2 Inch Dia Carbon Steel Circular Dies

The NKP 1" x 11 BSPT 2 1/2 Inch Dia Carbon Steel Circular Dies are specialized tools designed for cutting BSPT (British Standard Pipe Tapered) threads on 1-inch diameter pipes or rods. Below is a detailed description of the features and specifications of this die:

1. NKP (Brand/Type):

• NKP refers to the brand or product line of the die. Known for high-quality and durable threading tools, NKP dies are engineered for precision, long-lasting performance, and reliability in industrial applications.

2. 1″ x 11 BSPT:

• 1″ x 11 BSPT refers to the size and thread type of the die:
  • 1″ refers to the diameter of the pipe or rod being threaded, specifically 1 inch (approximately 25.4 mm).
  • 11 BSPT indicates the BSPT (British Standard Pipe Tapered) thread, with 11 threads per inch (TPI). The BSPT thread is tapered, meaning the diameter of the threads gradually decreases along the length of the pipe. This feature ensures that the connection made between two threaded components is secure and leak-resistant.

3. 2 1/2 Inch Dia:

• The 2 1/2-inch diameter (approximately 2.500 inches or 63.5 mm) refers to the diameter of the circular die itself. This die is designed to handle cutting threads on 1-inch BSPT pipes, providing sufficient capacity for effective and precise thread cutting on pipes of that size.

4. Carbon Steel:

• The die is made from carbon steel, which is known for its strength, toughness, and wear resistance. Carbon steel is ideal for cutting tools because it can withstand the mechanical stresses of threading operations and will maintain its sharpness over time.
• Carbon steel also provides excellent durability, ensuring the die can endure heavy-duty applications without losing effectiveness or wearing out prematurely.

5. Circular Dies:

• Circular dies are round, flat tools used to cut external threads on cylindrical workpieces like rods, pipes, or bolts. The die is inserted into a die stock or holder, which allows it to rotate as it cuts the threads into the workpiece.
• Circular dies are critical for creating standardized, functional threads that ensure a secure fit and proper function of the threaded components.

Applications:

• Pipe Threading: The die is designed to cut BSPT threads on 1-inch diameter pipes. These threads are essential for creating secure connections in plumbing, hydraulics, and oil & gas systems where the tight, leak-proof connection of pipes is required.
• Industrial Use: The die is suitable for industrial applications involving mechanical work and piping systems that require precision threading for fittings, valves, or flanges.
• Fluid & Gas Systems: BSPT threads are specifically designed for fluid and gas transmission systems. The tapered thread ensures a tight seal, making this die ideal for piping systems in industries that require high-pressure and leak-resistant connections.
• Construction and Maintenance: This die can be used in construction and maintenance tasks where 1-inch BSPT threads are needed for plumbing and industrial pipework.

Key Features:

• Large Threading Capacity: The 2 1/2-inch die diameter allows the tool to handle threading tasks on 1-inch BSPT pipes and related components, ensuring that the die can accommodate larger workpieces.
• Durability: Made from carbon steel, this die is resistant to wear, ensuring that it maintains its cutting edge over time, even under continuous use.
• Precision Cutting: The BSPT taper provides the correct thread pitch and angle for creating secure, leak-proof seals on threaded pipe joints, ensuring optimal performance in systems that require a tight, reliable connection.
• Versatility: The die is ideal for a range of applications, including plumbing, mechanical, hydraulic, and industrial piping systems, making it a versatile tool for a variety of tasks.

Conclusion:

The NKP 1″ x 11 BSPT 2 1/2 Inch Dia Carbon Steel Circular Die is a high-performance threading tool designed for cutting BSPT threads on 1-inch diameter pipes or related components. Constructed from carbon steel, it is both durable and wear-resistant, ensuring it can withstand heavy-duty use while maintaining sharpness for precise thread cutting. The BSPT taper guarantees the production of tight, leak-proof seals, making it ideal for fluid and gas systems, hydraulics, and plumbing applications. With a 2 1/2-inch diameter, this die is built for larger, industrial threading tasks, providing reliable and consistent performance in demanding environments.
