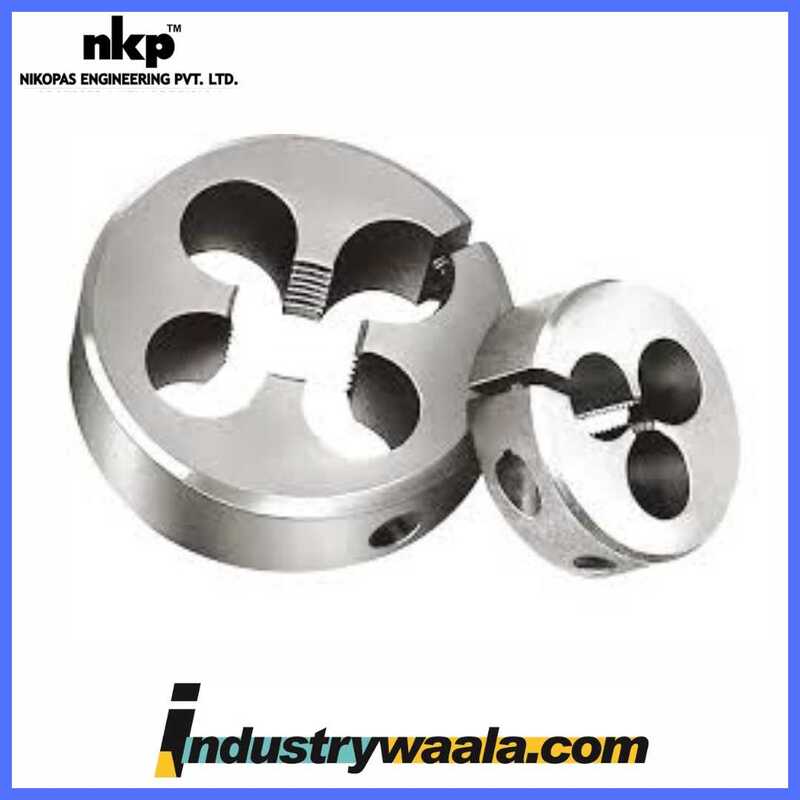

NKP 1"x 11 BSPT 3 Inch Dia Carbon Steel Circular Dies

The NKP 1″ x 11 BSPT 3 Inch Dia Carbon Steel Circular Dies are specialized tools designed for cutting BSPT (British Standard Pipe Tapered) threads on 1-inch diameter pipes or rods. Here's a detailed description of the features and specifications of this die:

1. NKP (Brand/Type):

• NKP refers to the brand or product line of the die, which is known for its reliability, precision, and high-performance threading tools. NKP dies are designed to ensure accuracy and durability in demanding industrial applications.

2. 1″ x 11 BSPT:

• 1″ x 11 BSPT indicates the size and thread type of the die:
  • 1″ refers to the diameter of the pipe or rod being threaded, specifically 1 inch (approximately 25.4 mm).
  • 11 BSPT indicates the BSPT (British Standard Pipe Tapered) threads, with 11 threads per inch (TPI), which refers to the thread pitch. BSPT threads are tapered, meaning that as the threads are cut along the length of the pipe, the diameter gradually decreases. This taper helps create a tight, leak-resistant seal when two threaded components are connected.

3. 3 Inch Dia:

• The 3-inch diameter (approximately 3.000 inches or 76.2 mm) refers to the size of the die itself.
• This larger die size is designed for cutting threads on larger components or pipes, making it suitable for industrial and mechanical applications that require precision threading for 1-inch BSPT pipes or fittings.

4. Carbon Steel:

• The die is made of carbon steel, a material known for its strength, durability, and resistance to wear.
• Carbon steel is ideal for threading tools because it can endure the mechanical stresses that come with cutting threads, especially on tough or harder materials. The durable nature of carbon steel ensures the die has a long service life and remains sharp during use.

5. Circular Dies:

• Circular dies are round cutting tools that are used for cutting external threads onto cylindrical workpieces such as rods, pipes, or bolts.
• Circular dies are typically used with a die stock or die holder, which holds the die in place and enables it to rotate as it cuts threads onto the material.
• These dies are essential for creating standardized threads, ensuring the proper fit and function of threaded components.

Applications:

• Pipe Threading: The die is designed for cutting BSPT threads on 1-inch diameter pipes or related components. These threads are essential for creating secure connections in plumbing, fluid systems, and gas lines where a tight seal is required.
• Industrial Applications: The die is suitable for heavy-duty industrial applications involving large-diameter pipes, fittings, or flanges. It is ideal for hydraulic systems, mechanical systems, or any application requiring precise, reliable threaded connections.
• Hydraulic and Fluid Systems: BSPT threads are commonly used in industries like oil and gas, plumbing, and hydraulics. The tapered nature of BSPT threads ensures a secure, leak-resistant connection, which is crucial in fluid and gas transport systems.
• Mechanical Work: This die is ideal for manufacturing, construction, and other mechanical applications that require precision threading for 1-inch BSPT pipes or components, such as valves, fittings, or flanges.

Key Features:

• Large Threading Capacity: The 3-inch diameter die allows the tool to handle 1-inch BSPT threads for large pipes, ensuring that it can cut threads efficiently and effectively on industrial-grade materials.
• Durability: Made of carbon steel, the die is resistant to wear and tear, ensuring long-lasting performance even during heavy or frequent use.
• Precision: The BSPT taper ensures that the die produces threads with the correct angle and pitch, creating a tight, leak-proof seal that is essential in high-pressure fluid and gas systems.
• Versatility: This die is suitable for use in plumbing, hydraulics, piping systems, construction, and mechanical engineering, where precise, leak-resistant threaded connections are necessary.

Conclusion:

The NKP 1″ x 11 BSPT 3 Inch Dia Carbon Steel Circular Die is a high-performance tool designed for cutting BSPT threads on 1-inch diameter pipes or related components. Made from carbon steel, the die is highly durable and resistant to wear, ensuring long-lasting performance in industrial and mechanical applications. The BSPT taper ensures that the die creates a tight, leak-resistant seal, making it ideal for fluid and gas systems. Its 3-inch diameter provides the capacity to handle larger components, making it a versatile and reliable tool for heavy-duty threading tasks. Whether used in hydraulic systems, plumbing, or construction, this die ensures accurate and secure threading for critical applications.
