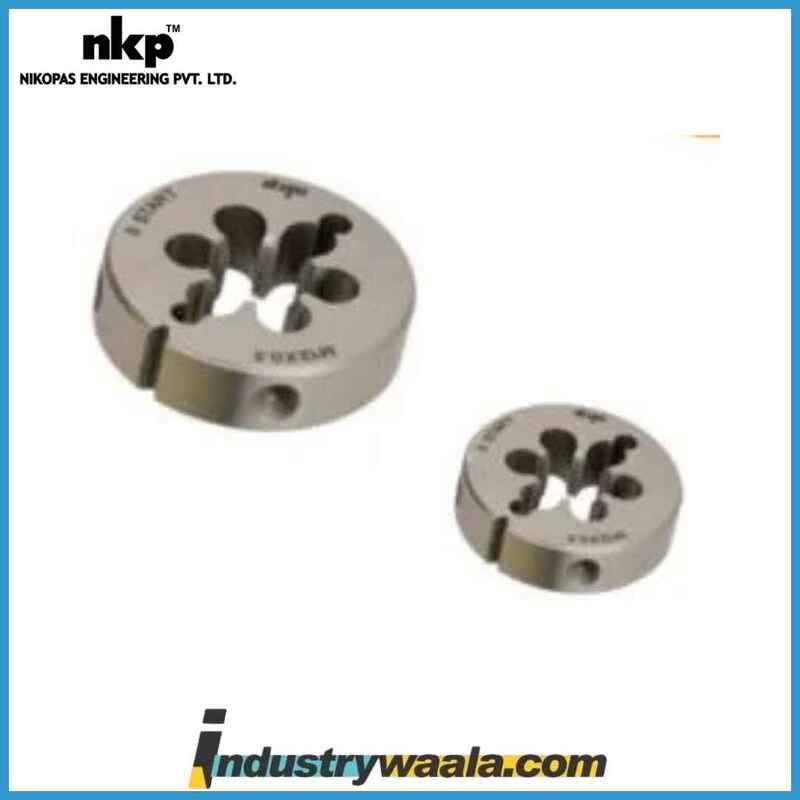

NKP 10 X 1.5 MM 1 Inch Dia High Speed Steel Circular Dies

The NKP 10 X 1.5 MM 1 Inch Dia High-Speed Steel (HSS) Circular Die is a precision cutting tool designed for threading or repairing external threads on cylindrical workpieces such as rods, bolts, and fasteners. With a 10 mm nominal thread diameter and 1.5 mm pitch, this die is well-suited for creating or restoring medium-pitched threads on smaller to medium-sized components. It is crafted from high-speed steel, a material renowned for its durability, resistance to heat, and ability to maintain its cutting edge even under high-temperature conditions. This makes the die especially valuable for industries that require reliable performance over long periods of use.

NKP 10 X 1.5 MM 1 Inch Dia High-Speed Steel Circular Die: Detailed Description

1. Size and Thread Specifications:
   • Diameter: 1 Inch (approximately 25.4 mm). This size allows the die to fit securely into die stocks or die holders, facilitating stable operation during the threading process. The 1-inch diameter ensures smooth handling and ease of use in both professional and DIY environments.
   • Thread Size: 10 X 1.5 mm. The die is specifically designed for 10 mm nominal diameter threads with a 1.5 mm pitch:
     • 10 mm: The nominal diameter of 10 mm makes the die ideal for threading smaller to medium-sized fasteners, including bolts, rods, and threaded components used in industrial machinery, automotive applications, and various mechanical systems.
     • 1.5 mm pitch: The 1.5 mm pitch represents the distance between adjacent threads. This medium pitch is often used in applications requiring threads that are neither too coarse nor too fine, providing a good balance between strength and ease of engagement.
2. Material:
   • High-Speed Steel (HSS): Constructed from high-speed steel, the die offers excellent hardness, resistance to wear, and the ability to retain its cutting edge even at high temperatures. High-speed steel is ideal for threading hard metals and ensures the die can endure extensive use without compromising performance. This material also helps reduce friction, extending the lifespan of the tool and minimizing overheating during operation.
3. Design and Construction:
   • Circular Die Shape: The die has a traditional circular design with cutting edges along its perimeter. This design ensures consistent and smooth cutting as it is rotated around the workpiece. The die’s sharp cutting edges help create clean, uniform threads that fit securely with minimal effort.
   • Central Hole: The die typically features a central hole that aligns with the workpiece, helping to guide the cutting process and ensuring the threads are applied evenly and precisely.
   • Multiple Cutting Edges: The die is designed with multiple cutting edges along its circumference, enabling efficient thread cutting with reduced wear on any individual edge. This design contributes to the overall longevity of the tool and ensures more even thread cutting.
4. Purpose:
   • Thread Cutting and Repair: The primary purpose of the NKP 10 X 1.5 MM die is for cutting or restoring external threads on fasteners, pipes, and rods. The die is designed to help in both creating new threads and repairing damaged or worn-out threads, which is crucial for maintaining the functionality of mechanical and industrial systems.
   • Medium Pitch Threading: The 1.5 mm pitch of this die is commonly used for threading applications where a moderate thread engagement is needed. This makes it ideal for creating threads in components that will experience a combination of moderate stress and vibration.
5. Features:
   • Precision and Accuracy: The die is designed for accurate and precise threading. This ensures that the threads cut are clean, even, and meet the specified tolerances for a secure fit, especially in applications requiring a strong and consistent thread engagement.
   • Durability: Made from high-speed steel, the NKP 10 X 1.5 MM die is highly durable, resisting wear from continuous use. This makes the die ideal for high-volume or heavy-duty operations where tool longevity and reliability are essential.
   • Efficiency: The multiple cutting edges along the perimeter of the die allow for efficient cutting, requiring less effort from the user and reducing the time needed for each threading operation.
6. Applications:
   • Industrial Manufacturing: In industrial settings, the NKP 10 X 1.5 MM die is used for producing or repairing threads on components such as bolts, rods, and threaded parts used in machinery, automotive systems, and structural applications.
   • Automotive and Mechanical Repairs: Automotive and mechanical industries frequently use this die for cutting or repairing threads on engine parts, transmission components, or other mechanical systems requiring precision threading.
   • Metalworking: Professionals in metalworking and machining use this die to cut external threads on various metal components, ensuring the threads are uniform and fit the required specifications.
   • DIY and Home Projects: DIY enthusiasts and hobbyists often use this die for threading components in home workshops, where precise thread cutting is needed for custom projects, repairs, or adjustments.
7. Advantages:
   • Extended Tool Life: The high-speed steel construction provides a tool with superior wear resistance and heat resistance, extending the die’s lifespan and making it more cost-effective over time.
   • Versatility: This die can be used in a wide variety of threading applications, including industrial, automotive, and DIY tasks. Its medium pitch makes it suitable for a range of different materials and components.
   • Precision Threading: The die creates precise, clean threads, ensuring that components fit securely and that the threading meets required specifications. This is essential for maintaining the integrity and safety of threaded parts in critical applications.
   • Heat Resistance: The high-speed steel material helps the die withstand the heat generated during the threading process, allowing it to perform efficiently and maintain sharpness for longer periods.
8. Handling and Usage:
   • Using with Die Stock: To use the NKP 10 X 1.5 MM die effectively, it is typically mounted in a die stock or die holder. This tool provides leverage and control during the threading process, ensuring that the die remains aligned with the workpiece.
   • Threading Process: To create or repair threads, position the die on the workpiece and rotate it in a clockwise direction while applying consistent pressure. The die will create threads as it moves along the surface, ensuring that the threads are uniform and precise. For thread repair, align the die with the existing threads and rotate to restore them.

Summary:

The NKP 10 X 1.5 MM 1 Inch Dia High-Speed Steel Circular Die is a durable, efficient, and precise tool for cutting or repairing external threads on cylindrical components. With a 10 mm nominal diameter and 1.5 mm pitch, it is well-suited for medium-sized fasteners and applications that require moderate thread engagement. Made from high-speed steel, this die offers excellent heat and wear resistance, ensuring a long tool life. Its versatility makes it suitable for a variety of industries, including industrial manufacturing, automotive repair, and metalworking, as well as for DIY projects that require precision threading.
