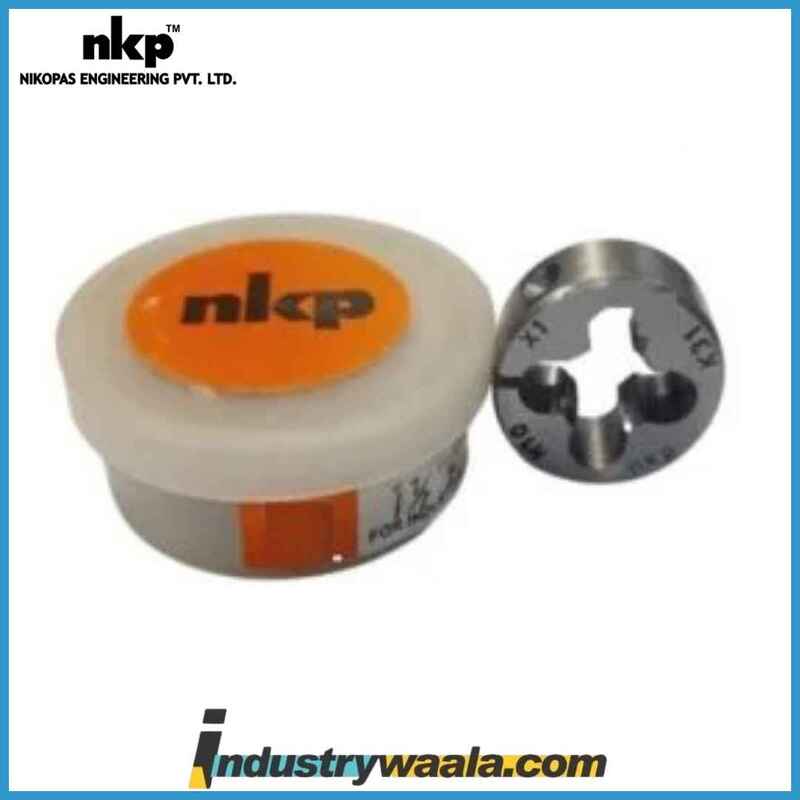

NKP 11/2 UNC LH 6 TPI 3 Inch Dia Left Hand High Speed Steel Circular Dies

The NKP 11/2 UNC LH 6 TPI 3 Inch Dia Left Hand High-Speed Steel Circular Dies are robust, precision-engineered tools designed for left-hand coarse threading applications. Crafted from High-Speed Steel (HSS), these dies offer exceptional durability, wear resistance, and heat resistance, ensuring reliable performance even in demanding environments.

The 11/2 UNC indicates a Unified National Coarse (UNC) thread with a 6 TPI (Threads Per Inch) pitch, which is ideal for creating coarse threads that provide a secure, strong grip in applications requiring high torque. The 3-inch diameter ensures the die is large enough to handle threading large components such as bolts, pipes, and mechanical parts.

These dies are left-hand (LH), meaning they are designed to cut threads that rotate counterclockwise, which is necessary for systems that need reverse rotational motion, such as certain automotive, plumbing, and machinery applications.

Detailed Breakdown of Features:

1. NKP 11/2 UNC LH 6 TPI:
   • NKP: Refers to the brand or product line, which is known for its precision engineering and quality in manufacturing dies.
   • 11/2 UNC: Indicates the Unified National Coarse (UNC) thread type with a size of 11/2. The UNC thread standard is commonly used for creating coarse threads, suitable for applications where strength and ease of assembly are important.
   • LH (Left-Hand): Refers to the direction of the thread. These dies create left-hand threads, meaning they rotate counterclockwise. Left-hand threads are often required in applications where reverse rotation is needed to prevent loosening or to engage with a system that operates in reverse.
   • 6 TPI: Refers to the 6 threads per inch (TPI) pitch, which is a coarse thread pitch. Coarse threads like 6 TPI are ideal for high-torque, heavy-duty applications because they offer better resistance to stripping, are easier to assemble, and can handle greater loads.
2. 3 Inch Diameter:
   • The 3-inch diameter ensures the die is large and stable enough to thread larger components. This size is ideal for creating deep, strong threads in thick materials such as metal or large mechanical parts. The size helps with thread cutting stability and accuracy, making it suitable for high-torque applications.
3. High-Speed Steel (HSS):
   • High-Speed Steel (HSS) is known for its exceptional hardness, wear resistance, and heat resistance. HSS maintains its cutting edge even under high temperatures, ensuring consistent performance and longevity. This makes it ideal for threading operations in tough materials where heat and friction are generated.
4. Left-Hand Threading (LH):
   • Left-hand threading is required in specific systems where reverse rotation is necessary. Left-hand threads are often used in applications such as automotive, machinery, and plumbing where components need to engage with reverse rotational systems to prevent loosening under pressure or vibration.
5. Coarse Thread Pitch (6 TPI):
   • The 6 TPI pitch creates coarse threads, which are ideal for applications that require greater strength and robust assembly. Coarse threads are easier to install, have better grip, and can handle higher torque loads compared to fine threads. They are commonly used in heavy-duty mechanical applications.

Applications:

1. Automotive and Machinery:
   • These dies are perfect for automotive and machinery applications, particularly for parts that require left-hand threads and are exposed to high rotational forces. Left-hand threads are commonly used in automotive, machinery, and industrial components where reverse rotation is needed to ensure parts stay secure.
2. Plumbing and Pipe Fitting:
   • The 3-inch diameter and left-hand threads make these dies ideal for plumbing and pipe fitting applications. They can be used for threading pipes and fittings in reverse-threaded systems where reverse motion is required to secure the connection. The coarse 6 TPI thread pitch ensures a strong, secure fit in larger pipes and fittings.
3. Heavy-Duty Threading:
   • These dies are suitable for heavy-duty threading applications, particularly when creating threads on large components like bolts, fasteners, or mechanical parts. The coarse 6 TPI ensures that threads can withstand high torque and mechanical stress, making them ideal for industrial and construction applications.
4. Thread Repair and Restoration:
   • The UNC 6 TPI thread pitch is ideal for thread restoration and repairing damaged threads in larger mechanical components and fasteners. These dies can restore the functionality of parts requiring coarse, left-hand threads, making them valuable for repairing damaged threaded parts.
5. Construction and Industrial Applications:
   • These dies are also used in the construction and industrial sectors for cutting threads in large structural components. The coarse threads and left-hand threading make them ideal for use in large-scale machinery, equipment, and building systems requiring strong, reverse-threaded components.

Key Advantages:

• Durability: HSS construction ensures longevity and sharpness even under high stress, making these dies ideal for long-term, heavy-duty use.
• Coarse Thread Pitch (6 TPI): The coarse 6 TPI pitch ensures threads are easier to install and capable of handling heavy-duty mechanical applications.
• Left-Hand Threading: Left-hand threading is perfect for reverse-motion systems, ensuring secure fastening and preventing loosening under high mechanical stress.
• Large Diameter: The 3-inch diameter allows the die to handle larger components, cutting deep, stable threads with precision.
• Versatility: These dies are used across a range of industries, including automotive, machinery, plumbing, construction, and industrial manufacturing.

Conclusion:

The NKP 11/2 UNC LH 6 TPI 3 Inch Dia Left Hand High-Speed Steel Circular Die is an essential tool for creating left-hand coarse threads in heavy-duty industrial applications. With a 3-inch diameter, 6 TPI coarse pitch, and High-Speed Steel construction, this die ensures durability, precision, and reliable performance under high-stress conditions. Whether used for automotive, plumbing, machinery, or construction applications, the die offers excellent strength and long-lasting performance, making it a versatile choice for professionals requiring reverse rotation threading.
