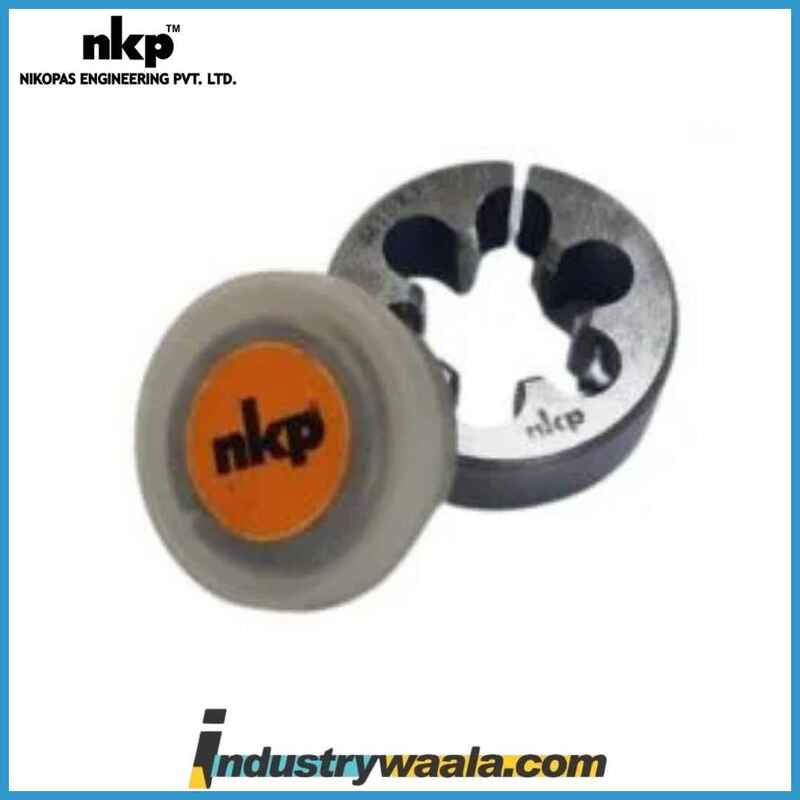

NKP 11 X 1 MM 1.1/2 Inch Dia High Speed Steel Circular Dies

The NKP 11 X 1 MM 1.1/2 Inch Dia High-Speed Steel (HSS) Circular Die is a robust and highly precise threading tool, specifically designed for creating or restoring external threads on cylindrical workpieces such as rods, bolts, and fasteners. With a 11 mm nominal diameter and 1 mm pitch, this die is ideal for applications requiring fine, secure threads. The die is made from high-speed steel, known for its exceptional durability, heat resistance, and wear resistance. This material ensures the die can perform under high stress and temperature conditions, making it highly reliable for both industrial and mechanical use.

NKP 11 X 1 MM 1.1/2 Inch Dia High-Speed Steel Circular Die: Detailed Description

1. Size and Thread Specifications:
   • Diameter: 1.1/2 Inches (approximately 38.1 mm). This size allows the die to be securely mounted in die stocks or holders, making it easy to handle during the threading process. The 1.1/2-inch diameter is particularly useful for precise thread cutting on medium-sized components.
   • Thread Size: 11 X 1 mm. The die is designed to cut threads with a nominal diameter of 11 mm and a 1 mm pitch:
     • 11 mm: The nominal diameter of 11 mm makes this die perfect for threading medium-sized fasteners, including bolts, rods, and other cylindrical components used in various mechanical systems and machinery.
     • 1 mm pitch: The 1 mm pitch indicates that the die creates fine threads with a 1 mm distance between each thread. This fine threading is essential for applications requiring a secure and accurate fit.
2. Material:
   • High-Speed Steel (HSS): The die is made from high-speed steel, a material that retains its hardness even at high temperatures. HSS is designed to resist wear, corrosion, and heat, making it ideal for use in high-performance environments where long-lasting durability is critical. This material ensures that the die performs consistently over time, providing smooth and precise threading for extended periods.
3. Design and Construction:
   • Circular Die Shape: The NKP 11 X 1 MM die is a circular tool with multiple sharp cutting edges along its perimeter. The circular design ensures that the die can smoothly rotate around the workpiece while cutting threads, allowing for a consistent thread pattern.
   • Central Hole: Like most circular dies, it features a central hole, which helps in aligning the die with the workpiece, ensuring that the threads are created evenly and accurately.
   • Multiple Cutting Edges: The die is engineered with multiple cutting edges, which reduces the workload on any single edge. This allows for more efficient cutting and prolongs the life of the die, making it suitable for high-volume threading tasks.
4. Purpose:
   • Thread Cutting and Repair: The NKP 11 X 1 MM die is designed for creating or repairing external threads on fasteners, rods, bolts, and other cylindrical components. It can be used to restore damaged or worn-out threads or to create new threads in mechanical systems.
   • Fine Threading: The 1 mm pitch provides fine threads, making it ideal for applications where a precise, tight fit is required. Fine threads are commonly used in precision engineering, machinery, and automotive components.
5. Features:
   • Precision Threading: The NKP 11 X 1 MM die is designed for fine, precise threading. The accuracy of the threading process ensures that the threads are smooth, even, and meet exact specifications.
   • Durability: Made from high-speed steel, the die resists wear and heat, ensuring long-lasting performance. It is ideal for use in high-stress environments where longevity and reliability are essential.
   • Efficiency: The die's multiple cutting edges allow for quick and smooth thread cutting, reducing effort and time during the threading process.
6. Applications:
   • Industrial Manufacturing: In industrial applications, the NKP 11 X 1 MM die is commonly used for threading medium-sized components, such as bolts, rods, and parts used in machinery, automotive, and other mechanical systems.
   • Automotive: Automotive mechanics use this die for creating or repairing threads on engine components, bolts, and fasteners, where fine threads are often necessary for a secure fit.
   • Metalworking: The NKP 11 X 1 MM die is used in metalworking to cut external threads on metal rods, pipes, and other components. Its precise threading ability ensures that the resulting parts fit correctly and securely.
   • DIY and Home Use: DIY enthusiasts use this die for threading parts in home workshops, whether they are repairing existing threads or creating new threads for custom projects.
7. Advantages:
   • Extended Tool Life: The high-speed steel construction ensures that the die is durable and resistant to wear. This makes it a cost-effective tool, as it can handle long-term use without the need for frequent replacement.
   • Precision and Accuracy: The die provides clean, uniform threads with minimal effort, ensuring the components fit securely and operate efficiently.
   • Versatility: The NKP 11 X 1 MM die is versatile and can be used across various applications, including industrial manufacturing, automotive, and metalworking, as well as in home workshops.
   • Heat Resistance: The die's high-speed steel composition ensures that it can withstand the heat generated during the threading process without losing its cutting ability.
8. Handling and Usage:
   • Using with Die Stock: The die is typically used with a die stock or die holder, which helps apply the necessary leverage for efficient cutting. The die stock also ensures that the die remains securely aligned with the workpiece during operation.
   • Threading Process: When using the die, align it with the workpiece and rotate it while applying consistent pressure. The die will cut threads as it rotates around the cylindrical surface. For thread repair, the die should be aligned with the existing threads and rotated to restore them to their original condition.

Summary:

The NKP 11 X 1 MM 1.1/2 Inch Dia High-Speed Steel Circular Die is a precision tool designed for cutting or repairing external threads on fasteners and cylindrical components. With a nominal thread diameter of 11 mm and a 1 mm pitch, the die is perfect for creating fine threads in medium-sized fasteners. Constructed from high-speed steel, the die offers excellent durability, heat resistance, and wear resistance, ensuring consistent performance in high-volume and heavy-duty applications. Whether used in industrial, automotive, or metalworking applications, the NKP 11 X 1 MM die is an essential tool for precise threading tasks.
