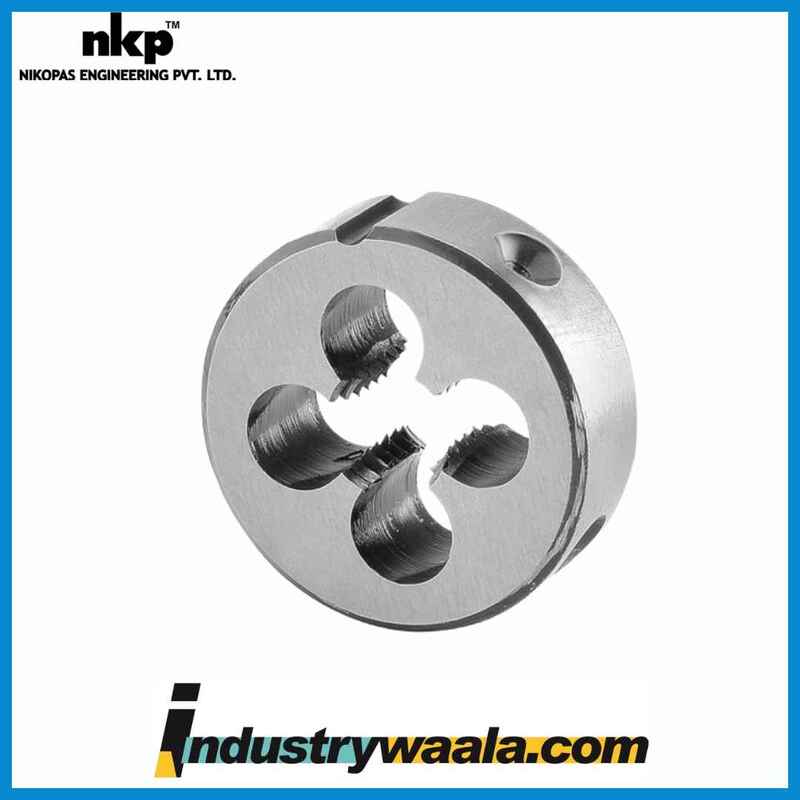

NKP 3/4 x 14 BSPT 2.1/2 Inch Dia Carbon Steel Circular Dies

The NKP 3/4 x 14 BSPT 2 1/2 Inch Dia Carbon Steel Circular Dies are high-quality threading tools designed for cutting BSPT (British Standard Pipe Tapered) threads on 3/4-inch diameter pipes or rods. Here’s a detailed breakdown of the features and specifications:

1. NKP (Brand/Type):

• NKP is the brand or series name of the die. It represents a high standard of manufacturing, known for producing durable, high-precision threading tools used in various industrial applications.

2. 3/4 x 14 BSPT:

• 3/4 x 14 BSPT indicates the size and thread type:
  • 3/4″ refers to the diameter of the pipe or rod being threaded, specifically 3/4 inch (approximately 19.05 mm).
  • 14 BSPT refers to the BSPT (British Standard Pipe Tapered) thread, with 14 threads per inch (TPI). BSPT threads are tapered, meaning the diameter gradually decreases along the length of the pipe, providing a tight seal when components are connected, ideal for use in plumbing, hydraulic, or gas systems.

3. 2 1/2 Inch Dia:

• The 2 1/2-inch diameter (approximately 2.500 inches or 63.5 mm) refers to the size of the circular die. This size allows the die to cut threads on 3/4-inch BSPT pipes efficiently, providing ample space for the threading operation.

4. Carbon Steel:

• Made from carbon steel, the die is known for its strength, durability, and wear resistance. Carbon steel is a commonly used material for threading tools as it offers high resistance to wear and can endure the stresses of cutting threads into tough materials. It also maintains a sharp cutting edge, ensuring consistent performance over time, even in heavy-duty use.

5. Circular Dies:

• Circular dies are round, flat tools that cut external threads on cylindrical workpieces such as pipes, rods, or bolts. They are mounted into a die stock or holder, which allows them to rotate while cutting threads. This die is used to create precision threads with a standardized pitch, ensuring the threads are compatible with BSPT fittings and components.

Applications:

• Pipe Threading: This die is specifically designed to cut BSPT threads on 3/4-inch diameter pipes. The die is commonly used in plumbing, hydraulic systems, and oil & gas applications where secure, leak-resistant connections are essential.
• Industrial and Mechanical Work: Ideal for threading pipes or rods for industrial applications, the die is suitable for use in machinery, piping systems, and equipment assembly requiring BSPT threads.
• Fluid and Gas Systems: BSPT threads are commonly used in fluid and gas transmission systems because the tapered design ensures a tight seal, making the die perfect for high-pressure applications where leak-proof connections are critical.
• Hydraulic and Pneumatic Systems: The die is widely used in hydraulics and pneumatics, where reliable, durable threads are needed for components such as fittings, valves, and flanges.

Key Features:

• Threading Capacity: The 2 1/2-inch die diameter allows the die to accommodate the 3/4-inch BSPT pipe, offering the capability to handle medium-sized pipe threading efficiently.
• Durability: The carbon steel construction ensures the die is resistant to wear and tear, providing long-lasting performance even under tough working conditions.
• Precision: The BSPT taper ensures precise threading with the proper angle and pitch, helping to create tight, leak-proof seals.
• Versatility: This die is ideal for use in a variety of applications, including plumbing, hydraulics, mechanical, and industrial systems where high-quality threads are needed.

Conclusion:

The NKP 3/4 x 14 BSPT 2 1/2 Inch Dia Carbon Steel Circular Die is a high-performance threading tool designed for cutting BSPT threads on 3/4-inch diameter pipes or related components. Made from carbon steel, the die is engineered for durability and precision in high-demand industrial applications. The BSPT taper ensures tight, leak-proof seals for fluid, gas, and pressure systems. With a 2 1/2-inch die diameter, the tool is ideal for handling medium-sized pipe threading, making it suitable for plumbing, mechanical, hydraulic, and industrial piping systems.
