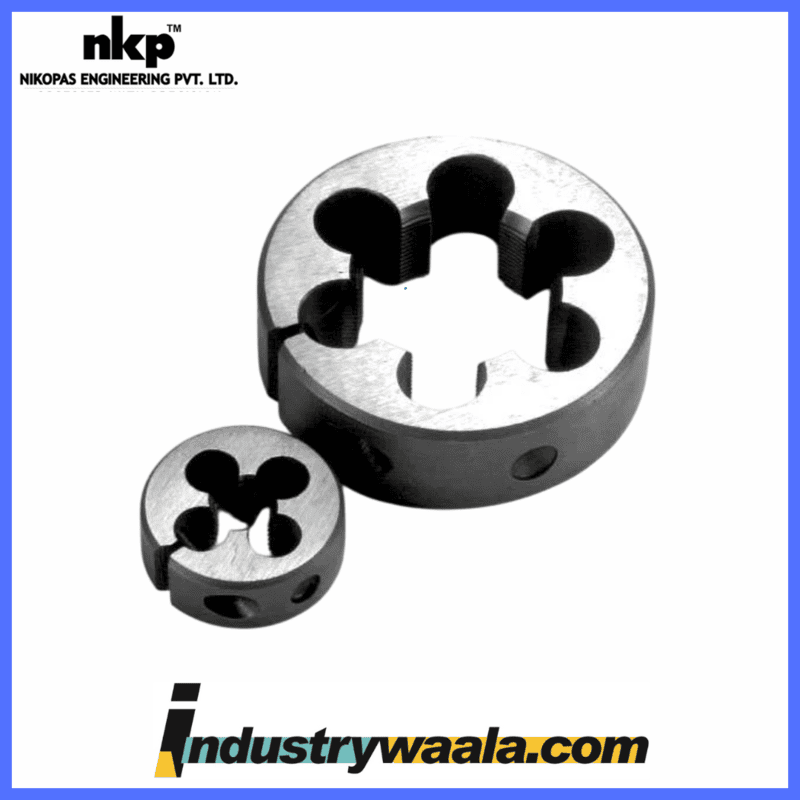

NKP 3/4 x 14 NPT 2.1/2 Inch Dia Carbon Steel Circular Dies

The NKP 3/4 x 14 NPT 2 1/2 Inch Dia Carbon Steel Circular Dies are high-quality, precision-engineered threading tools designed to cut NPT (National Pipe Tapered) threads on 3/4-inch diameter pipes or rods. These dies are made from carbon steel, offering strength, durability, and long-lasting performance in industrial environments. Below is a detailed breakdown of the key features and specifications of this threading die:

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP refers to the brand or type of the die. NKP is recognized for manufacturing high-quality threading tools that offer precision, reliability, and durability. Their products are trusted by professionals for various industrial threading applications.

2. 3/4 x 14 NPT

• 3/4 x 14 NPT specifies the size and thread type:
  • 3/4 refers to the diameter of the pipe or rod being threaded, which is 3/4 inches (approximately 19.05 mm).
  • 14 NPT indicates the NPT (National Pipe Tapered) thread pattern, with 14 threads per inch (TPI). NPT threads are tapered, which ensures a tight, leak-proof seal when threaded components are joined. The 14 TPI offers a medium thread pitch, which is ideal for a variety of applications requiring a secure connection.

3. 2 1/2 Inch Dia

• The 2 1/2-inch diameter (approximately 63.5 mm) refers to the diameter of the circular die. This die size ensures the tool can handle 3/4-inch diameter pipes with precision. The larger die diameter provides stability and accurate cutting, which helps in producing uniform, high-quality threads.

4. Carbon Steel Construction

• The die is constructed from carbon steel, which is known for its strength, resilience, and durability. Carbon steel can withstand high-stress operations, making it ideal for repeated threading tasks. It also offers excellent resistance to wear and corrosion, ensuring the die maintains sharpness and effectiveness over time, even with prolonged use.

5. Circular Dies

• Circular dies are used to cut external threads on cylindrical workpieces like pipes, rods, or bolts. The die is typically mounted in a die stock or holder, allowing it to rotate while cutting the threads into the workpiece. The circular shape ensures that the die produces uniform and precise threads that meet the required specifications.

Applications:

• Pipe Threading: The NKP 3/4 x 14 NPT 2 1/2 Inch Dia Carbon Steel Circular Die is specifically designed to cut NPT threads on 3/4-inch diameter pipes, which are commonly used in plumbing, gas systems, hydraulic systems, and pneumatic applications. The NPT threads ensure a tight, leak-proof seal in high-pressure systems, making this die ideal for various industries.
• Hydraulic and Pneumatic Systems: This die is perfect for creating NPT threads in hydraulic and pneumatic systems, where secure, leak-proof and high-pressure connections are critical.
• Industrial & Mechanical Systems: The die is used in industrial and mechanical applications for creating reliable, precise threads in components like fittings, valves, and connectors.
• Fluid and Gas Systems: The NPT threads ensure a tight seal in fluid and gas systems, making this die essential for applications where safety and leak-proof connections are a top priority.

Key Features:

• Threading Capacity: The 2 1/2-inch die diameter provides stability and alignment during the threading process, ensuring accurate and consistent cutting of NPT threads on 3/4-inch diameter pipes.
• Durability: Made from carbon steel, this die is highly resistant to wear and tear, allowing it to handle repeated use while maintaining its sharpness and effectiveness. It is designed to perform well in demanding environments, such as industrial and mechanical applications.
• Precision: The 14 TPI NPT threads allow for fine and accurate threading, ensuring the die produces uniform threads that provide a tight, leak-proof seal.
• Versatility: This die is suitable for a wide range of applications, including plumbing, hydraulics, gas systems, and mechanical work, where precise, durable threaded connections are essential.

Conclusion:

The NKP 3/4 x 14 NPT 2 1/2 Inch Dia Carbon Steel Circular Die is a high-quality, durable, and reliable tool designed to cut NPT threads on 3/4-inch diameter pipes. Constructed from carbon steel, the die is built to withstand wear and corrosion, ensuring long-lasting performance. The 14 TPI NPT threads provide a precise and tight fit, perfect for applications in plumbing, hydraulic systems, gas systems, and mechanical systems. With its 2 1/2-inch die diameter, the die ensures stable cutting and accurate thread formation, making it an essential tool for industrial professionals who need to create high-quality, leak-proof threaded connections.
