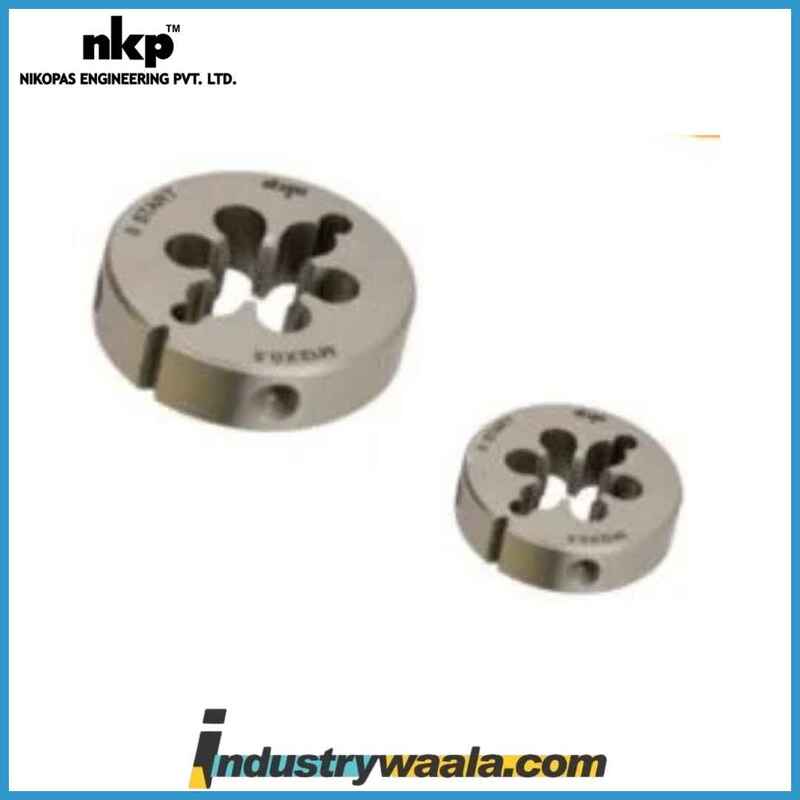

NKP 3/8 NPSM 18 TPI 2 Inch Dia Carbon Steel Circular Dies

The NKP 3/8 NPSM 18 TPI 2 Inch Dia Carbon Steel Circular Die is a precision tool designed for cutting 3/8-inch NPSM (National Pipe Straight Mechanical) threads with an 18 threads per inch (TPI) pitch. This die is constructed from high-quality carbon steel, providing durability and long-lasting performance, even under heavy use. It is ideal for industrial and mechanical applications that require precise, secure threading for pipes, tubes, rods, or other cylindrical workpieces. Below is a detailed description of this product:

Product Overview:

The NKP 3/8 NPSM 18 TPI 2 Inch Dia Carbon Steel Circular Die is designed to cut 3/8-inch NPSM threads with an 18 TPI pitch. The 2-inch diameter of the die ensures optimal performance, allowing for precise cutting of threads on cylindrical workpieces. Constructed from carbon steel, the die offers excellent wear resistance and durability, making it suitable for repeated use in various threading operations. This die can be used in manual or machine-assisted threading tools, offering flexibility for different threading tasks across a range of industries.

Key Specifications:

1. 3/8 NPSM (National Pipe Straight Mechanical):
   • 3/8 NPSM refers to the 3/8-inch NPSM threads, which are designed for mechanical applications that require straight-thread connections. NPSM threads are typically used for mechanical joining, unlike NPT (National Pipe Tapered) threads, which are used for sealing. NPSM threads are suitable for applications in plumbing, fluid systems, and other industrial systems requiring secure, precise mechanical connections.
2. 18 TPI (Threads Per Inch):
   • The 18 TPI pitch refers to the number of threads per inch, indicating that the threads are relatively fine. The 18 TPI provides a high level of precision, ensuring that the threads are tight and secure for strong mechanical connections. Fine threads like these are commonly used in applications requiring a high degree of accuracy and strength.
3. 2 Inch Diameter:
   • The 2-inch diameter of the die ensures that it can be used to cut threads on 3/8-inch diameter workpieces effectively. The 2-inch diameter offers a stable cutting surface, allowing for smooth, precise threading. It provides enough cutting area to ensure accuracy and reduce wear over time.
4. Carbon Steel Construction:
   • The carbon steel material provides durability, wear resistance, and strength. It ensures that the die maintains its cutting sharpness even after repeated use, making it an ideal choice for heavy-duty industrial environments where long-lasting performance is required. Carbon steel is a reliable material that can withstand the rigors of threading tough metals such as steel, brass, or aluminum.
5. Circular Die Design:
   • The circular die design makes it compatible with a wide range of die holders or wrenches for both manual and machine-assisted threading operations. The design ensures that the die can be easily mounted and provides consistent, accurate threads, whether used in a workshop or industrial setting.

Applications:

• Thread Cutting: The NKP 3/8 NPSM 18 TPI die is primarily used for cutting 3/8-inch NPSM threads with an 18 TPI pitch. NPSM threads are used to create strong mechanical connections in piping systems, rods, tubes, and other cylindrical components. This die is ideal for cutting threads on materials such as steel, brass, aluminum, and other metals.
• Mechanical and Plumbing Systems: NPSM threads are widely used in plumbing, fluid systems, and mechanical systems where strong, secure connections are needed. The 3/8-inch NPSM threads are ideal for use in pipe fittings, flanges, and mechanical joints that will experience pressure and mechanical stress but do not require sealing like tapered threads.
• Industrial Applications: The 18 TPI fine thread pitch is suitable for applications requiring precise threads. It ensures a secure, tight fit for mechanical connections, making it ideal for industrial machinery, piping, and manufacturing applications that require high accuracy and thread integrity.

Key Features and Benefits:

1. Fine Thread Pitch (18 TPI):
   • The 18 TPI pitch ensures that threads are tight and precise, ideal for applications that require high accuracy. This fine thread pitch allows for a stronger mechanical connection, ensuring that the joint remains secure even under stress or vibration.
2. Durable Carbon Steel Construction:
   • The carbon steel material offers superior wear resistance, ensuring the die maintains its cutting edge and provides reliable performance over time. It is designed to handle tough materials and repeated use, making it ideal for heavy-duty applications.
3. Precision Thread Cutting:
   • This die is designed for precise thread cutting, ensuring that the threads are accurately cut with minimal wear. The 18 TPI ensures tight, consistent threads that provide secure connections and withstand mechanical stress.
4. Versatility in Use:
   • The circular die design allows for compatibility with a variety of die holders or wrenches, making it versatile for both manual and machine-assisted threading operations. This flexibility allows it to be used in a wide range of industries, including plumbing, fluid systems, mechanical engineering, and manufacturing.
5. Long-Lasting Performance:
   • The combination of carbon steel construction and a fine thread pitch ensures that the die provides long-lasting, reliable performance, even under heavy use. This makes it an excellent choice for industrial applications requiring repeated threading tasks.

Conclusion:

The NKP 3/8 NPSM 18 TPI 2 Inch Dia Carbon Steel Circular Die is a high-performance tool designed for cutting 3/8-inch NPSM threads with an 18 TPI pitch. Constructed from durable carbon steel, it ensures long-lasting, precise thread cutting, making it ideal for mechanical, plumbing, and industrial applications. The 18 TPI fine threads provide strong, secure connections for mechanical systems that require a high level of precision. Whether used in manual or machine-assisted operations, this die offers versatility, accuracy, and durability, ensuring reliable results in various industries.
