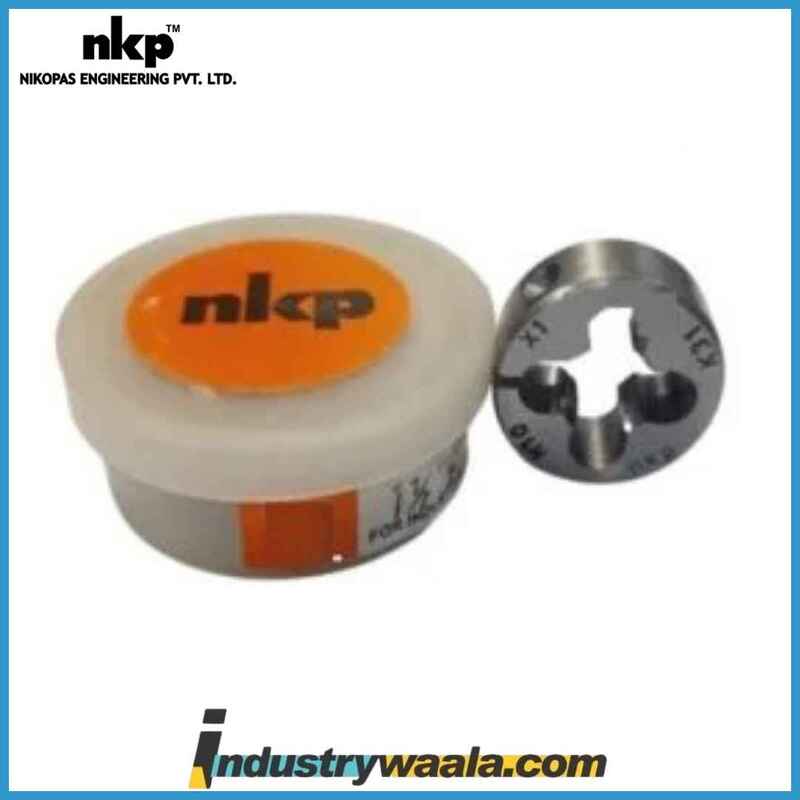

NKP 3/8 x 18 NPT 1.1/2 Inch Dia High Speed Steel Circular Dies

The NKP 3/8" x 18 NPT 1.1/2 Inch Dia High-Speed Steel Circular Die is a specialized threading tool designed to create 3/8-inch NPT (National Pipe Tapered) threads with an 18 threads per inch (TPI) pitch. Crafted from High-Speed Steel (HSS), this die delivers exceptional durability, wear resistance, and heat tolerance, making it ideal for use in high-demand industrial environments. The 1.1/2-inch diameter enhances stability and precision during threading, ensuring smooth, consistent thread profiles that result in secure, leak-proof connections. Here's a comprehensive breakdown of its features:

Detailed Description:

1. NKP:
   • NKP is the brand or manufacturer of the die, recognized for producing high-quality, durable threading tools suited for both manual and machine threading operations. NKP threading tools are known for their precision and reliability in industrial applications.
2. 3/8" x 18 NPT:
   • 3/8" indicates the nominal pipe size, meaning this die is designed to cut threads for pipes or fittings that are 3/8 inches in diameter. This size is common for smaller piping systems used in plumbing, gas, and fluid transport.
   • 18 TPI (Threads per Inch) refers to the pitch of the threads, meaning there are 18 threads for every inch of pipe. The 18 TPI pitch is fine, allowing for precise and tight threading that is ideal for pressure-tight seals and secure fittings.
   • NPT (National Pipe Tapered) threads are specifically designed with a taper (gradually widening thread profile), making them perfect for creating tight, leak-proof connections. The tapered design ensures that the threads compress and form a tight seal when the components are threaded together.
3. 1.1/2 Inch Diameter:
   • The 1.1/2-inch diameter of the die provides superior stability while cutting the threads. A larger die diameter enhances the die’s grip on the workpiece, reducing the chances of misalignment or threading errors.
   • The 1.1/2-inch diameter also ensures that the die is robust enough to handle extended use in demanding industrial environments, delivering reliable performance over time.
4. High-Speed Steel (HSS):
   • High-Speed Steel (HSS) is the material used for the die, chosen for its exceptional hardness and wear resistance. This material allows the die to maintain its sharp cutting edges during prolonged use, even when cutting through tough materials.
   • HSS also has heat resistance, meaning it can withstand the high temperatures generated during threading without losing its cutting ability, making it ideal for heavy-duty applications.
5. Circular Die Design:
   • The circular die design is meant for creating external threads, which is essential for threading pipes, rods, or other cylindrical materials. The die cuts as it rotates around the workpiece, ensuring a consistent and smooth thread profile.
   • This die can be used manually with a die stock or machine-operated threading tools, offering versatility in how it can be applied to different threading setups.

Applications:

• Plumbing: The 3/8-inch NPT threads are used in plumbing for creating leak-resistant connections, particularly in systems that carry water, gas, or other fluids under pressure. The die is perfect for use with smaller pipes and fittings that require precision.
• Gas and Fluid Systems: NPT threads are widely used in gas lines, hydraulic, and pneumatic systems to ensure that the connections are secure and can handle pressure without leaking.
• Hydraulic Systems: The die is ideal for creating threads in hydraulic systems, where a strong and durable seal is essential for preventing leaks in high-pressure piping systems.
• Pneumatic Systems: The NPT threads produced by this die are suitable for pneumatic systems, where precision threading is needed to maintain the pressure-tight seals required in pressurized air systems.

Advantages:

• Durability: Made from High-Speed Steel (HSS), the die offers exceptional wear resistance, ensuring long-term use without the need for frequent replacements.
• Precision: The 18 TPI pitch ensures that the die produces accurate and consistent threads, resulting in tight, leak-resistant connections in high-pressure environments.
• Leak-Proof Seals: The NPT tapered thread design provides the ideal threading geometry for creating pressure-tight, leak-proof seals, critical for systems that transport liquids and gases under pressure.
• Stability and Accuracy: The 1.1/2-inch diameter ensures stability during the threading process, reducing the risk of misalignment and increasing the accuracy of each threaded connection.
• Versatility: The die’s circular design makes it compatible with both manual and machine threading tools, allowing for flexible use in various industrial applications.

Summary:

The NKP 3/8" x 18 NPT 1.1/2 Inch Dia High-Speed Steel Circular Die is a reliable and durable threading tool designed for creating 3/8-inch NPT tapered threads with an 18 TPI pitch. Made from High-Speed Steel (HSS), it offers excellent wear resistance, heat tolerance, and long-lasting performance. The 1.1/2-inch diameter enhances stability and precision, while the NPT threads ensure tight, leak-proof connections in plumbing, gas, hydraulic, and pneumatic systems. Whether used with manual tools or threading machines, this die provides accurate, consistent, and secure thread cuts for a wide range of industrial applications.
