| Brand | Nkp |
| Model | NKP 5/16 UNC LH |
| Thread Type | Left Hand |
| Thread Pitch | 18 TPI |
| Material | Carbon Steel |
| Diameter | 1 Inch |

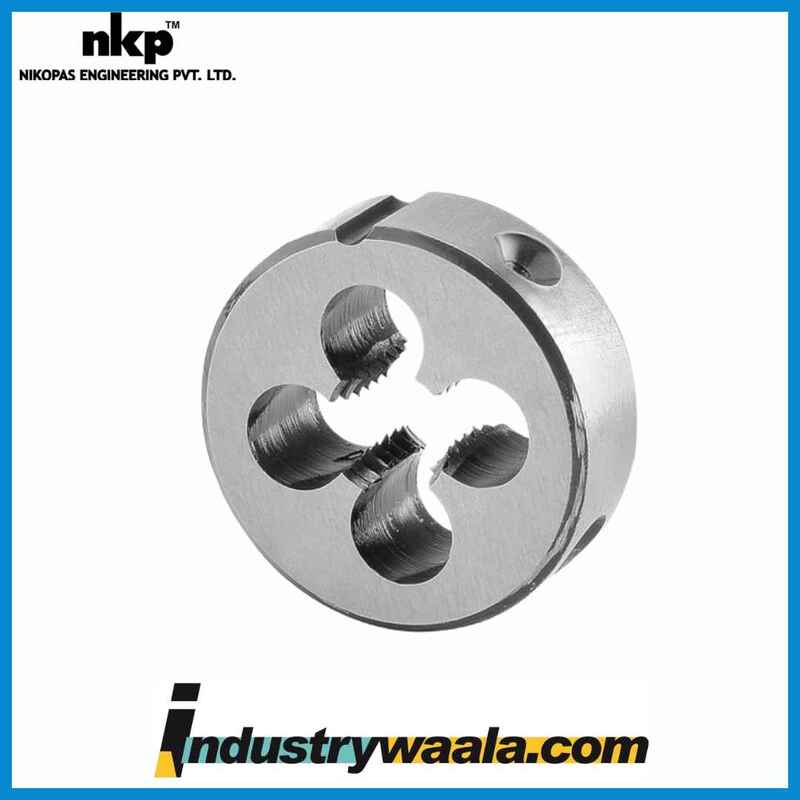

The NKP 5/16 UNC LH 18 TPI 1 Inch Dia Left Hand Carbon Steel Circular Die is a precise tool used for threading operations, typically applied in metalworking. It is specifically designed to cut threads on a rod or bolt in a left-hand (LH) direction, which is the opposite of the standard right-hand threads. Here's a detailed breakdown of its features:
1. NKP (Brand or Manufacturer Code)
- NKP likely refers to the brand or a manufacturer code, which signifies the quality, standards, and possibly the material used in the die.
- This would help distinguish it from other dies made by different manufacturers, ensuring you can trust the product's reliability and performance.
2. 5/16 UNC (Unified National Coarse)
- 5/16 refers to the size of the threads being cut, in inches. In this case, it's a 5/16-inch diameter (0.3125 inches) bolt or rod.
- UNC stands for Unified National Coarse, which is a standardized thread type used in the U.S. and Canada. Coarse threads are used when a stronger connection is required and in applications where ease of assembly and disassembly is important.
- This means the die is designed to cut 5/16-inch UNC threads, commonly found in standard bolts and fasteners.
3. LH (Left Hand Thread)
- This die is designed to cut left-hand threads, meaning the threads spiral in the opposite direction compared to right-hand threads. Left-hand threads are typically used in applications where a standard right-hand thread could loosen under the load or stress (e.g., rotating machinery parts or bicycle pedals).
- Left-hand threads are common in automotive and mechanical applications.
4. 18 TPI (Threads Per Inch)
- 18 TPI refers to the number of threads per inch. In this case, the die cuts threads at a rate of 18 threads per inch, indicating it is relatively fine in terms of threading.
- A higher TPI is often used when a finer, more precise thread is required for holding a more secure and tighter connection.
5. 1 Inch Diameter
- This die has a 1-inch diameter. This is typically the overall size of the die, not the thread size it cuts.
- It ensures that the die is large enough to fit into a suitable die holder or tool for cutting the left-hand threads.
6. Material: Carbon Steel
- The die is made of carbon steel, which is a durable and cost-effective material widely used in manufacturing cutting tools.
- Carbon steel provides the strength and hardness necessary to cut through various metals, including softer steel, aluminum, and some other alloys, without excessive wear or damage to the tool itself.
- It is a practical material choice for general-purpose cutting dies, balancing performance and cost.
7. Circular Die
- This die is circular, meaning it is shaped as a round, flat disk. Circular dies are commonly used in manual or machine threading operations, typically with a die holder or tool.
- The circular shape allows for easy rotation and ensures the die maintains a consistent cutting path along the length of the material being threaded.
Applications
- This die is typically used in metalworking, machining, and repair applications where left-hand threaded bolts or rods are needed.
- It is used to create or repair threads on rods, bolts, and other cylindrical objects.
- Common uses include automotive, machinery repairs, and manufacturing operations requiring left-handed threading to prevent parts from loosening.
Key Advantages
- Precision threading ensures a tight fit and secure hold for fasteners.
- Left-hand threading is crucial for preventing unintentional loosening of fasteners.
- High-quality carbon steel ensures durability and a longer service life of the tool.
- The die's design allows for smooth and consistent cutting for creating standard, coarse, and durable threads.
