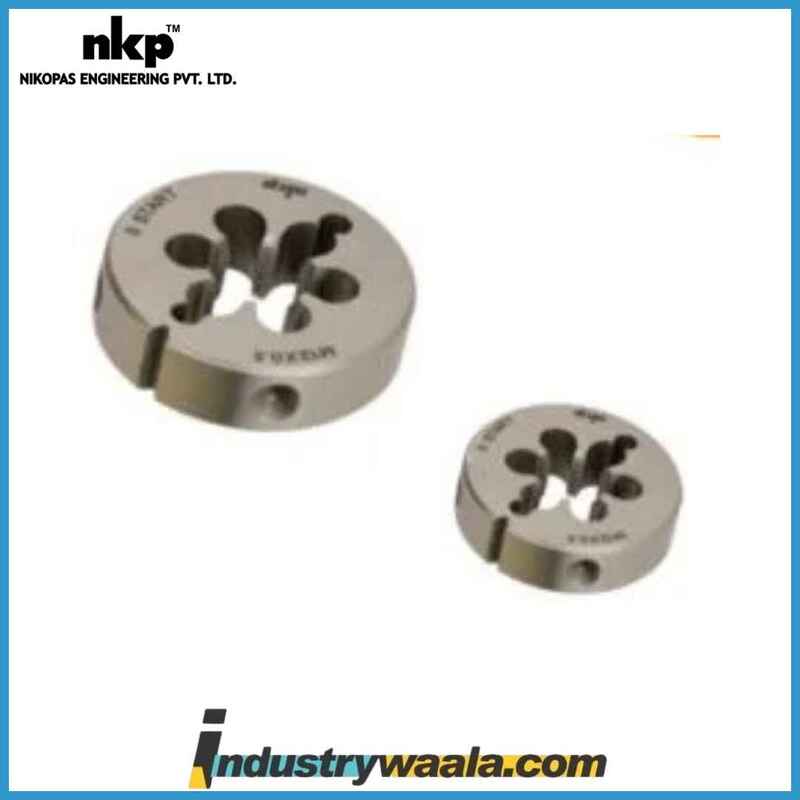

NKP 5/16 UNEF 32 TPI 1 Inch Dia High Speed Steel Circular Dies

The NKP 5/16 UNEF 32 TPI 1 Inch Dia High-Speed Steel Circular Dies are premium, high-performance tools designed for precision threading in professional environments. Made from high-speed steel (HSS), these circular dies provide the durability, sharpness, and long-lasting performance necessary to handle tough materials and high-speed operations. With a 32 TPI fine thread pitch and a 1-inch diameter, this die is specifically engineered to produce smooth, precise threads for a wide range of industrial and mechanical applications. Whether you are threading small fasteners or larger components, the NKP die ensures clean, accurate threads every time.

Designed for Unified National Extra Fine (UNEF) threading, this die is a perfect tool for applications in industries such as aerospace, automotive, precision manufacturing, and electronics, where fine, high-precision threads are required.

Key Features:

1. High-Speed Steel Construction for Exceptional Durability
   • Made from high-speed steel (HSS), the NKP circular die is designed to provide exceptional wear resistance and heat resistance. HSS is ideal for high-speed cutting tasks and helps the die maintain its sharpness and cutting efficiency over extended periods of use. This durability ensures reliable performance and reduces the frequency of tool replacement, making it an ideal choice for both high-volume and long-term threading applications.
2. 32 TPI for Fine and Precise Threading
   • The 32 TPI (Threads Per Inch) specification ensures that the die produces fine, accurate threads. Fine threads are essential for applications that require tight tolerances, smooth engagement, and strong, secure fittings. The 32 TPI pitch is perfect for industries such as aerospace, automotive, and electronics, where precision is critical for ensuring the proper fit and functionality of components.
3. 1-Inch Diameter for Stability and Control
   • Featuring a 1-inch diameter, this die offers enhanced stability during the threading process. A larger diameter minimizes flexing, which allows for greater control and ensures that threads are cut accurately and consistently. The increased diameter also enhances the versatility of the die, allowing it to handle both small and large components with ease while maintaining high-quality results.
4. 5/16 UNEF Thread Form for Compatibility with Unified National Extra Fine Threads
   • The 5/16 UNEF thread form is designed to produce Unified National Extra Fine (UNEF) threads. UNEF threads are commonly used in high-precision applications where a finer, tighter thread is required. This makes the NKP die ideal for industries like aerospace, automotive, and electronics, where extra fine threads are crucial for ensuring secure and stable connections. The die ensures perfect compatibility with UNEF standards, providing consistent, reliable thread formation.
5. Long Design for Deep, Precise Threading
   • The long design of this die allows for deeper and more consistent threading, making it ideal for working with longer components like rods, bolts, or pipes. The extended length of the die provides better control and ensures that the thread depth remains uniform throughout the threading process. This is particularly beneficial for applications where deep threading is required, ensuring that threads are cut precisely and consistently along the full length of the component.

Conclusion:

The NKP 5/16 UNEF 32 TPI 1 Inch Dia High-Speed Steel Circular Dies are high-quality, reliable tools designed for precision threading in professional applications. Constructed from high-speed steel (HSS), the die offers excellent durability and longevity, making it suitable for demanding tasks where consistent, high-quality results are required. The 32 TPI fine-thread specification ensures that threads are cut with precision, while the 1-inch diameter provides the stability and control necessary for accurate threading.

The 5/16 UNEF thread form ensures that this die is perfect for producing Unified National Extra Fine threads, which are commonly used in industries requiring ultra-precise components. The long design adds to the versatility of the die, allowing for deeper threading operations with consistency and accuracy.

Whether you are threading small fasteners or larger components, the NKP 5/16 UNEF High-Speed Steel Circular Die offers the durability, precision, and performance required for professional-grade results. Ideal for use in aerospace, automotive, and manufacturing applications, this die is an indispensable tool for any machinist, engineer, or professional requiring fine, accurate threading.
