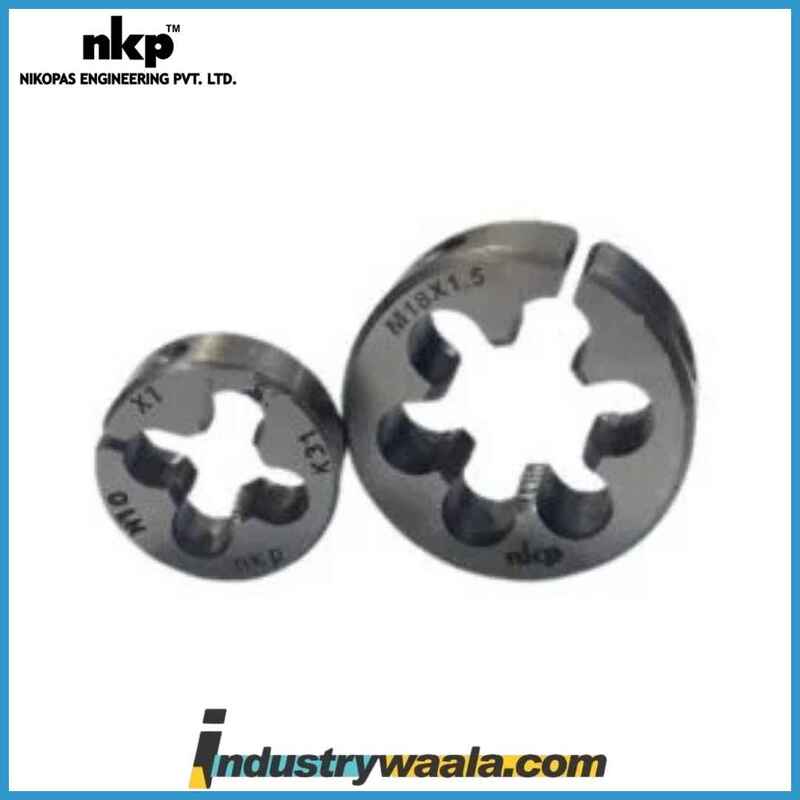

NKP 6 X 0.5 MM 1 Inch Dia High Speed Steel Circular Dies

The NKP 6 X 0.5 MM 1 Inch Dia High-Speed Steel (HSS) Circular Die is a precision tool designed for cutting and repairing external threads on components requiring a 6 mm nominal diameter and a 0.5 mm pitch. It is a highly effective tool for creating fine-pitch threads, commonly used in applications where tight tolerances and strong thread connections are necessary.

Key Features and Description:

1. Thread Specifications:
   • 6 mm Diameter: The die is made to cut or repair external threads with a 6 mm diameter, which is commonly found in smaller bolts, rods, and fasteners used in mechanical and industrial components.
   • 0.5 mm Pitch: The 0.5 mm pitch creates closely spaced threads, ensuring a fine and strong fit. This fine pitch makes it ideal for applications where precise, secure threading is necessary for component strength and performance.
2. Material Construction:
   • High-Speed Steel (HSS): Constructed from high-speed steel (HSS), the die offers superior wear resistance, heat resistance, and durability. HSS is designed to withstand the high friction and heat generated during the cutting process, ensuring the die maintains its sharpness over an extended period of use.
   • Long-Lasting Performance: The HSS construction allows the die to withstand continuous use in high-speed cutting operations without degrading, making it a reliable tool for threading tasks that require longevity and performance.
3. Precision Thread Cutting:
   • The NKP 6 X 0.5 MM die is engineered to create precise external threads with 0.5 mm pitch, ensuring that the threads are consistent and tight. This is ideal for applications where high precision and thread integrity are essential.
   • Smooth, Clean Cuts: The die design ensures smooth and clean thread cutting, preventing any damage to the workpiece and ensuring high-quality thread formation.
4. Design and Dimensions:
   • 1-Inch Diameter: The 1-inch diameter ensures that the die is compatible with most standard die stocks or die holders. This allows for easy and secure mounting during operation, providing greater control during the threading process.
   • Circular Shape: The die’s circular shape helps distribute the cutting pressure evenly, ensuring consistent and accurate threads are cut along the entire length of the component.
5. Applications:
   • Thread Cutting and Repair: The NKP 6 X 0.5 MM die is primarily used for cutting or repairing external threads on 6 mm diameter components. It is commonly used for threading smaller fasteners, bolts, rods, and other components requiring a precise thread pitch.
   • Fine-Pitch Threading: Due to its 0.5 mm pitch, this die is well-suited for fine-pitch threading applications, offering a strong and secure thread fit that is necessary for smaller, high-performance parts in machinery, automotive, and precision engineering.
6. Advantages:
   • Durability: The HSS material provides superior durability and long-term performance, with the ability to withstand high temperatures and wear, even under continuous use.
   • Precision: The 0.5 mm pitch allows for the creation of fine, accurate threads that meet the requirements of tight tolerance applications, making it suitable for tasks requiring precise fit and strong mechanical connections.
   • Versatility: This die can be used across a variety of applications in automotive, industrial machinery, and metalworking, making it a versatile tool for threading tasks.
7. Operating Instructions:
   • Mounting the Die: Place the die securely into a die stock or die holder, which provides the necessary leverage and stability during use. Ensure the die is firmly in place to avoid any wobbling or misalignment during cutting.
   • Cutting the Threads: Position the die on the component and rotate it clockwise to begin cutting. Apply light, consistent pressure to ensure even and smooth threading.
   • Lubrication: For optimal performance, apply cutting oil or lubricant to the die and workpiece. This will reduce friction, extend the life of the die, and ensure smoother cutting.

Summary:

The NKP 6 X 0.5 MM 1 Inch Dia High-Speed Steel Circular Die is a high-quality threading tool designed for creating or repairing external threads on 6 mm diameter components with a 0.5 mm pitch. Its HSS construction ensures durability and resistance to wear and heat, allowing for extended use even under demanding conditions. The 1-inch diameter ensures compatibility with standard die holders, and the 0.5 mm pitch creates finely spaced threads, making it ideal for applications in automotive, machinery, and metalworking industries that require precision, strength, and reliability in thread formation. This die is essential for tasks that require strong, durable, and accurate threading, making it a reliable tool for industrial professionals.
