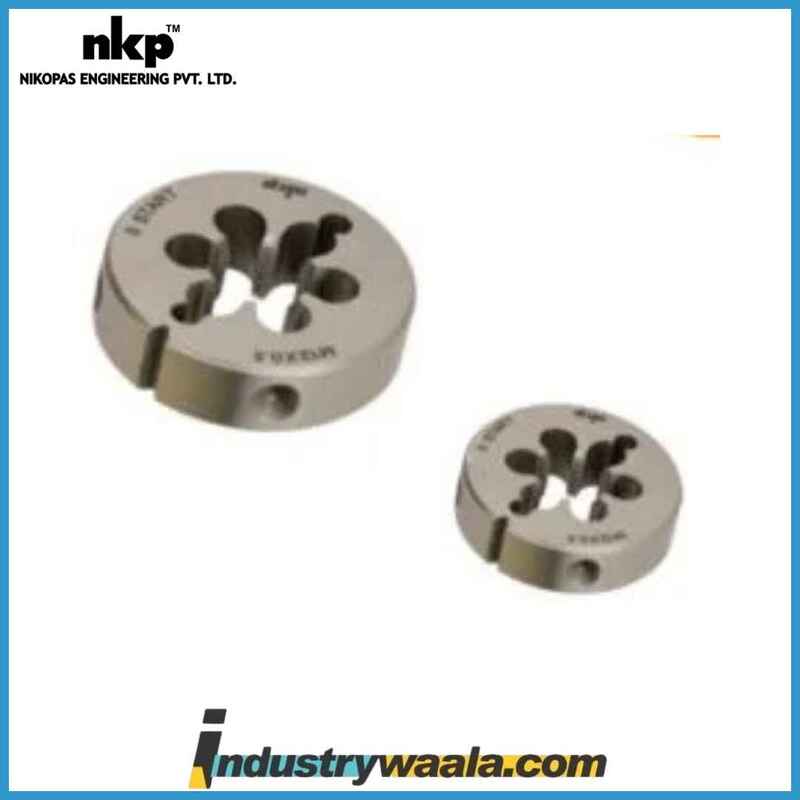

NKP 8 X 0.75 MM 1 Inch Dia High Speed Steel Circular Dies

The NKP 8 X 0.75 MM 1 Inch Dia High-Speed Steel (HSS) Circular Die is a specialized tool engineered to produce or repair external threads with precision. This die has a 7 mm nominal diameter and a 0.75 mm pitch, making it particularly suitable for fine-pitch threading tasks where higher thread counts are required. The 1-inch diameter ensures compatibility with standard die holders, allowing for secure mounting and easy handling during the threading process.

Crafted from high-speed steel (HSS), this die offers excellent wear resistance, hardness, and heat resistance. These characteristics make it durable even in high-speed or high-temperature operations, ensuring a longer tool life and consistent performance.

NKP 8 X 0.75 MM 1 Inch Dia High-Speed Steel Circular Die: Detailed Description

1. Size and Thread Specifications:
   • Diameter: 1 Inch (approximately 25.4 mm). This allows for easy mounting of the die onto standard die holders, providing optimal support and stability during threading.
   • Thread Size: 8 X 0.75 mm. This die is designed for cutting external threads with a 8 mm nominal diameter and a 0.75 mm pitch:
     • 8 mm Diameter: The 8 mm diameter is ideal for creating or repairing medium-sized threads, ensuring a strong and secure connection between components.
     • 0.75 mm Pitch: The 0.75 mm pitch ensures fine, closely spaced threads, making it suitable for applications requiring precision and high thread engagement.
2. Material:
   • High-Speed Steel (HSS): The NKP 8 X 0.75 MM die is made from high-speed steel (HSS), known for its superior hardness, wear resistance, and heat tolerance. HSS allows the die to withstand the heat generated during high-speed threading, ensuring a longer service life and sharp cutting edges over time.
3. Design and Construction:
   • Circular Die Shape: The die is designed in a circular shape, which facilitates smooth rotation during the threading process. This design helps ensure the even distribution of cutting forces and consistent thread quality.
   • Central Hole for Alignment: The die includes a central hole that assists in aligning the die with the workpiece, ensuring precise thread cutting and reducing the chance of misalignment.
   • Multiple Cutting Edges: The die features multiple cutting edges around the perimeter, which helps distribute the cutting forces evenly and ensures consistent cutting performance throughout the die's lifespan.
4. Purpose:
   • Thread Cutting and Repair: The primary purpose of the NKP 8 X 0.75 MM die is for cutting or repairing external threads on rods, bolts, and other mechanical components. It is ideal for fine-pitch threading, which is used for applications requiring precision and higher thread counts.
   • Fine-Pitch Threading: The 0.75 mm pitch makes this die suitable for creating fine-pitch threads, which are ideal for applications that require greater precision, higher strength, and secure engagement of threaded components.
5. Features:
   • Precision Thread Cutting: The NKP 8 X 0.75 MM die is engineered to produce highly accurate and consistent threads. The fine-pitch threading ensures that the threads are evenly spaced, providing a strong and reliable fit.
   • Durable Material: The use of high-speed steel (HSS) ensures that the die maintains its cutting performance and sharpness for a long time, even during high-volume use.
   • Efficient Cutting: The die is designed to cut threads smoothly and efficiently, reducing the effort required to create accurate threads, while maintaining high thread quality.
6. Applications:
   • Industrial Manufacturing: The NKP 8 X 0.75 MM die is used extensively in industrial applications where precision threading is required. It is suitable for cutting or repairing threads on mechanical components such as bolts, rods, and fasteners, ensuring that threads are strong and durable.
   • Automotive Industry: In the automotive sector, this die is used for creating or restoring threads on various components like engine parts, transmission elements, and mechanical fasteners, ensuring tight, secure fits.
   • Metalworking and Machining: Metalworkers and machinists use the NKP 8 X 0.75 MM die for creating or repairing fine-pitch threads on metal parts. It is essential for components that need to fit together with high precision and strength.
   • DIY and Home Workshops: This die is also useful for hobbyists and DIY enthusiasts who need to cut or repair threads in their personal projects. The fine-pitch threading allows for the creation of durable, secure connections in a variety of applications.
7. Advantages:
   • Long-Lasting Performance: The high-speed steel (HSS) construction ensures that the die will stay sharp and effective over a long period of time, reducing the need for frequent replacements.
   • High Precision: The 0.75 mm pitch guarantees that the die will produce fine, closely spaced threads, ideal for precision applications where accuracy is essential.
   • Heat Resistance: The HSS material ensures that the die can withstand the high temperatures generated during threading, preserving the tool's sharpness and performance.
   • Versatile: The NKP 8 X 0.75 MM die is versatile enough to be used in a range of industries, including machinery, automotive, and general manufacturing.
8. Handling and Usage:
   • Using with Die Stock: The NKP 8 X 0.75 MM die is used with a die stock or die holder to provide leverage and control during the threading process. The die stock ensures that the die remains securely mounted, allowing for accurate and steady thread cutting.
   • Threading Process: To use the die, align it properly with the workpiece and rotate it slowly while applying even pressure. Proper alignment is crucial to ensure that the threads are cut accurately, without damaging the die or workpiece.

Summary:

The NKP 8 X 0.75 MM 1 Inch Dia High-Speed Steel Circular Die is an essential tool for cutting or repairing fine-pitch external threads. It is constructed from high-speed steel (HSS), which provides excellent hardness, heat resistance, and wear resistance for consistent and long-lasting performance. With an 8 mm nominal diameter and 0.75 mm pitch, this die is perfect for precision threading tasks where finely spaced threads are required. It is widely used in industries such as industrial manufacturing, automotive, metalworking, and machining to ensure that threaded components have the durability and precision needed for secure mechanical connections.
