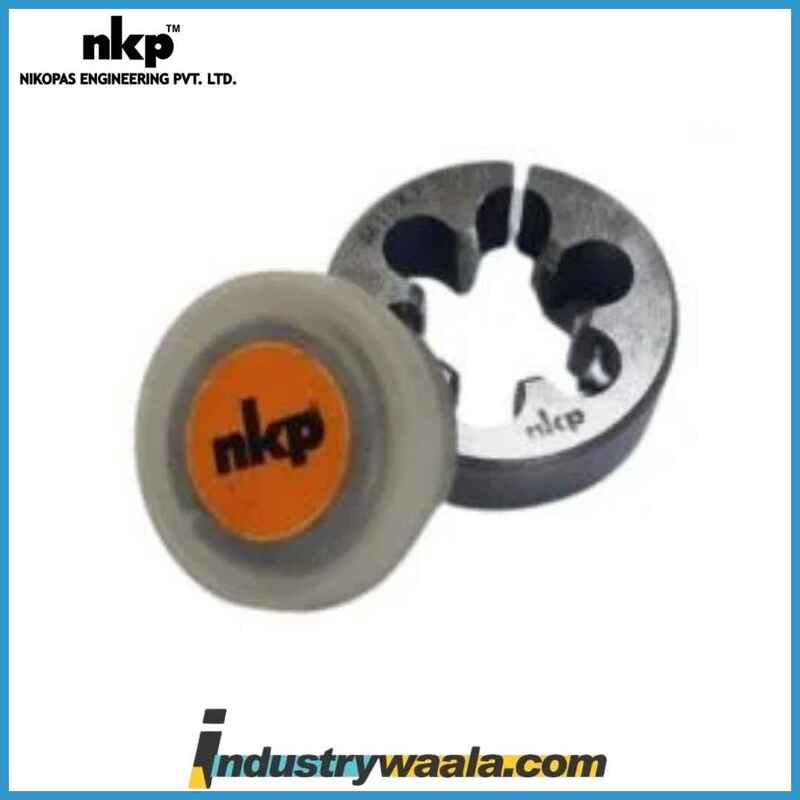

NKP 9 X 0.5 MM 1 Inch Dia High Speed Steel Circular Dies

The NKP 9 X 0.5 MM 1 Inch Dia High-Speed Steel (HSS) Circular Die is an essential tool for cutting or repairing external threads on components requiring fine-pitch threads. Designed with a 9 mm nominal diameter and a 0.5 mm pitch, this die is ideal for applications that require high-precision threading with closely spaced threads. The 1-inch diameter ensures compatibility with common die stocks and holders, providing a stable and secure fit during use.

Key Features and Description:

1. Thread Specifications:
   • 9 mm Diameter: The die is crafted to create or restore threads with a 9 mm nominal diameter. This makes it suitable for threading bolts, rods, screws, and other components commonly used in industrial, automotive, and machinery applications.
   • 0.5 mm Pitch: The 0.5 mm pitch means that the threads are finely spaced, providing greater strength and a tighter fit between components. Fine threads are ideal for applications where high precision and secure engagement are required.
2. Material Construction:
   • High-Speed Steel (HSS): Made from high-speed steel (HSS), this die is known for its durability and heat resistance. HSS allows the die to maintain its cutting performance even under high-speed and high-temperature conditions, making it ideal for industrial and professional use.
   • Wear Resistance: The HSS construction ensures the die stays sharp for longer periods, even with repeated use, providing excellent resistance to wear, which helps maintain consistent performance and quality of the threads cut.
3. Precision Thread Cutting:
   • The NKP 9 X 0.5 MM die is engineered to create accurate external threads with tight tolerances. The 0.5 mm pitch ensures fine-threaded cuts, which are ideal for parts that require precise mechanical connections.
   • Smooth Cutting Performance: The die ensures smooth operation, minimizing friction, heat buildup, and thread damage during cutting. The uniformity of the threads helps to improve the overall fit of the components.
4. Design and Dimensions:
   • 1-Inch Diameter: The die has a 1-inch diameter, which allows it to fit easily into standard die holders. This standard size ensures secure and stable handling, which is crucial for achieving accurate and precise threads.
   • Circular Design: The circular shape of the die ensures even pressure distribution during operation, promoting smoother cutting and reducing the risk of damaging the threads. The design also helps prevent the die from binding or seizing during use.
5. Applications:
   • Thread Cutting and Repair: The NKP 9 X 0.5 MM die is ideal for cutting or repairing external threads on 9 mm diameter components. It is commonly used in industries such as automotive, metalworking, machinery, and engineering, where precise threading is required for bolts, fasteners, rods, and other components.
   • Fine-Pitch Threading: The fine-pitch nature of this die makes it suitable for applications where high-strength threading and a secure mechanical connection are necessary. The 0.5 mm pitch ensures the threads are closely spaced and highly precise, providing a strong fit between threaded parts.
6. Advantages:
   • Durability: The HSS construction provides exceptional durability, ensuring the die remains effective even after extensive use. It resists heat and wear, maintaining sharpness and cutting efficiency.
   • High Precision: The 0.5 mm pitch provides fine, accurate threads, which are essential for applications requiring high precision and strength.
   • Longevity: The die’s construction makes it highly resistant to wear and heat, ensuring a long lifespan and reducing the need for frequent replacements.
   • Versatility: The NKP 9 X 0.5 MM die is suitable for a wide range of industries, from automotive manufacturing to precision engineering, making it an invaluable tool for various threading tasks.
7. Operating Instructions:
   • Mount the Die in a Die Stock: Ensure the die is securely mounted in a die stock or die holder. The die stock provides leverage and control during the threading process, ensuring straight and precise cuts.
   • Threading Process: Align the die with the workpiece and rotate it slowly while applying consistent pressure to cut the threads. Take care to keep the die aligned to prevent cross-threading or misalignment.
   • Lubrication: For best results, use a suitable cutting lubricant or oil to reduce friction, prevent heat buildup, and prolong the die’s life. The lubrication also improves cutting performance and ensures smoother thread formation.

Summary:

The NKP 9 X 0.5 MM 1 Inch Dia High-Speed Steel Circular Die is a versatile, durable tool used to create or repair fine-pitch external threads on 9 mm diameter components. Its HSS construction provides superior resistance to heat and wear, ensuring long-lasting performance even under high-speed cutting conditions. The 0.5 mm pitch allows for precise and secure threading, making it ideal for applications in industries such as automotive, machinery, and precision engineering. This die’s 1-inch diameter ensures compatibility with standard die holders, making it an essential tool for thread cutting and repair tasks.
