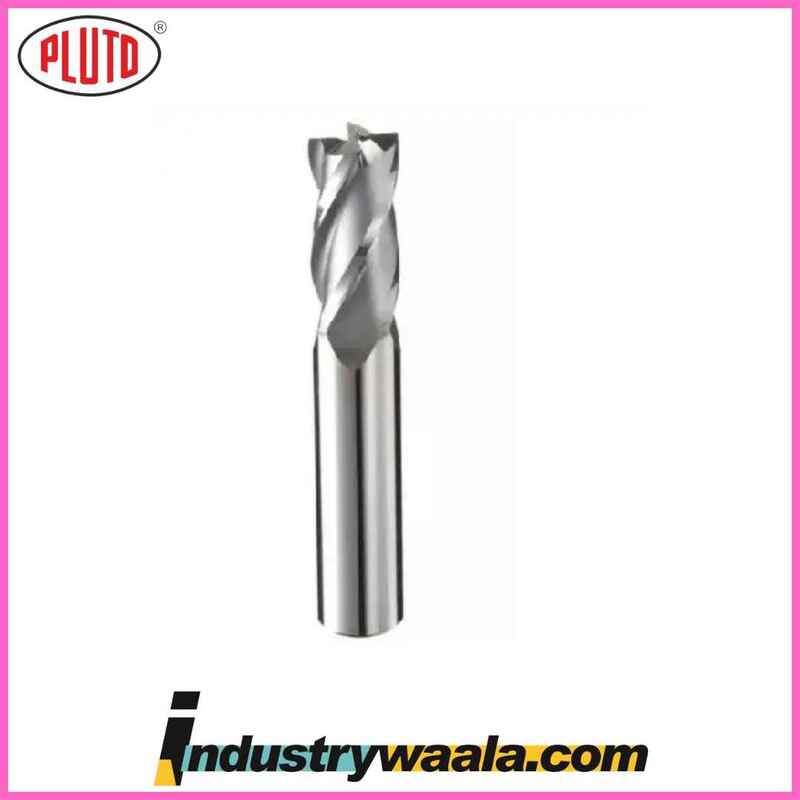

Pluto 1.3/8 X 1 X 2.1/8 X 4.5/8 Inch End Mills With Parallel Shank

Key Features:

1. End Mill Diameter (1.3/8 inches):
   • The cutting diameter of 1.3/8 inches (approximately 34.925mm) makes this end mill suitable for medium to large milling tasks. This size is perfect for cutting larger features on workpieces or finishing cuts in various industrial applications. It’s ideal for slotting, profiling, and contour milling.
2. Shank Diameter (1 inch):
   • The parallel shank has a diameter of 1 inch (approximately 25.4mm), which is a standard size for tool holders that can securely hold the end mill during milling operations. The parallel shank design ensures a stable grip in the machine’s tool holder without the risk of taper fit issues, providing greater tool control during cutting.
3. Flute Length (2.1/8 inches):
   • The flute length of 2.1/8 inches (approximately 54mm) refers to the portion of the end mill that cuts into the workpiece. This length allows the tool to reach into deeper cavities or perform more extensive cuts on larger workpieces. The longer flute length offers more cutting engagement, making it suitable for deeper milling applications.
4. Overall Length (4.5/8 inches):
   • The overall length of 4.5/8 inches (approximately 118mm) includes both the shank and flute length. The length is designed to provide adequate reach for larger or deeper milling tasks while maintaining tool rigidity and precision.
5. Material and Coating:
   • The end mill is made from high-quality material, typically High-Speed Steel (HSS) or Carbide, depending on the specific product. The material provides a good balance between toughness and hardness, making it suitable for a variety of materials. The tool may also be coated (such as with TiN, TiAlN, or Diamond coatings) to improve wear resistance, cutting performance, and tool life when working with tougher materials.
6. Flute Design:
   • The end mill features spiral or helical flutes, which aid in chip removal during the cutting process. The flute design is essential for maintaining a clean cutting area, reducing heat buildup, and preventing chip clogging. These features ensure efficient operation and longer tool life.
7. Cutting Type:
   • The end mill is suitable for a variety of cutting operations such as:
     • Slotting and grooving.
     • Profile milling.
     • Side milling and face milling.
     • Contour milling.
     • Roughing and finishing operations.
   • It can be used to mill a wide variety of materials, including steel, aluminum, brass, and plastics, depending on the coating and material grade.

Applications:

1. Machinery Manufacturing:
   • The Pluto 1.3/8 X 1 X 2.1/8 X 4.5/8 Inch End Mill is ideal for machinery manufacturing, where precision milling is required for larger workpieces. Its 1.3/8-inch cutting diameter and long flute length make it effective for creating complex shapes, profiles, and slots in larger components.
2. Tool and Die Making:
   • In tool and die making, this end mill can be used to create molds, dies, or other custom tooling that require high precision and smooth finishes. Its long flute length is especially useful for creating deeper features or slots in molds and dies.
3. Aerospace and Automotive:
   • This end mill is highly suited for the aerospace and automotive industries, where precision cutting of large or complex components is crucial. Whether working with aluminum, steel, or composite materials, the tool's versatility and parallel shank design ensure a stable and accurate cutting experience.
4. Custom Fabrication and Prototyping:
   • In custom fabrication and prototyping, the end mill is often used for shaping, profiling, and slotting in custom-designed parts. Its large cutting diameter and extended flute length are particularly useful for deep milling operations and tasks requiring larger cuts or shaping on larger workpieces.
5. Metalworking and Production Milling:
   • Production milling in high-volume settings often requires durable tools capable of consistent performance. The Pluto 1.3/8 X 1 X 2.1/8 X 4.5/8 Inch End Mill can handle high-speed operations in materials like mild steel, stainless steel, and alloys, offering efficiency and long tool life even during prolonged cutting sessions.

Benefits:

• High Precision: The Pluto end mill provides precise and accurate cuts, making it ideal for applications where dimensional accuracy and a fine surface finish are required.
• Durability and Long Tool Life: Constructed from high-quality HSS or carbide materials, this end mill is built to handle demanding milling tasks, providing long tool life and resistance to wear during extended cutting cycles.
• Stable Cutting: The parallel shank ensures a secure fit in tool holders, reducing vibration and tool deflection, which results in smoother, more stable cutting, especially during deep cuts.
• Efficient Chip Removal: The spiral flute design of the end mill helps with effective chip evacuation, preventing clogging and minimizing heat buildup, which in turn extends tool life and improves cutting efficiency.
• Versatility: Suitable for a wide range of materials and milling operations, including slotting, profiling, side milling, and roughing, the end mill is adaptable to various production needs.
• Enhanced Cutting Performance: The large cutting diameter and long flute length allow for handling larger cuts and deeper features, providing better performance on larger workpieces or deeper milling tasks.

Conclusion:

The Pluto 1.3/8 X 1 X 2.1/8 X 4.5/8 Inch End Mill with Parallel Shank is a high-performance tool designed for demanding milling operations, offering precision, durability, and versatility. Its 1.3/8-inch cutting diameter and extended flute length make it ideal for a wide range of machining applications, including slotting, profiling, and deep-hole milling. With its parallel shank, the tool provides a stable fit in machine tool holders, ensuring consistent and accurate cutting. Whether you're working in machinery manufacturing, tooling, aerospace, or custom fabrication, the Pluto End Mill provides the reliability and performance required for high-quality results in complex and high-demand milling tasks.
