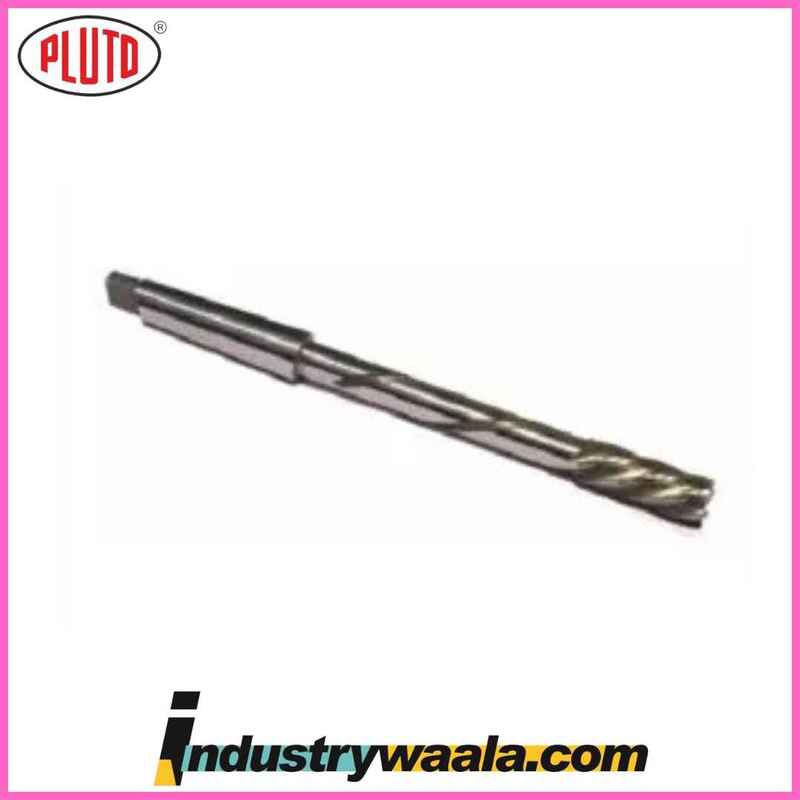

Pluto 11.8 X 112 X 35 X 190 X1 MM Hole Mills Unguided - Type 'B'

The Pluto 11.8 x 112 x 35 x 190 x 1 mm Hole Mills Unguided - Type 'B' are precision milling tools designed for hole making, milling, and boring applications in a variety of materials. These hole mills feature an unguided Type 'B' design, making them ideal for deep hole milling and precise hole geometry in complex machining tasks. The Pluto Unguided Hole Mills are known for their ability to handle high cutting loads, maintain dimensional accuracy, and produce excellent surface finishes.

Key Features:

1. Precision Hole Milling:
   • The Pluto Unguided Hole Mills are designed for hole milling applications, offering high precision and smooth finishes. They are ideal for producing holes with tight tolerances, including deep-hole applications where traditional drilling or boring methods may not be suitable.
   • The unguided design offers freedom of movement during milling, which can be beneficial for applications where guided tooling is not necessary or where flexibility in operation is required.
2. Optimized Dimensions for Versatility:
   • Cutting Diameter: 11.8 mm (0.464 inches)
   • Shank Diameter: 1 mm (0.039 inches)
   • Length of Cut: 112 mm (4.409 inches)
   • Overall Length: 190 mm (7.480 inches)
   • Flute Length: 35 mm (1.378 inches)

   These dimensions make the Pluto Hole Mills suitable for a variety of hole milling and boring tasks in medium to large hole applications. The cutting diameter of 11.8 mm allows for precise material removal in various workpieces, while the cutting length of 112 mm ensures the tool is capable of handling deep-hole milling jobs.

3. Unguided Type 'B' Design:
   • The Type 'B' unguided design of the hole mills offers freedom during milling without being restricted by a guide mechanism. This flexibility allows the tool to mill holes and contours with ease while still maintaining accuracy. The unguided design is particularly suitable for milling tasks that require high mobility or for operations in deep or complex workpieces.
4. Durable High-Quality Construction:
   • Pluto Hole Mills are crafted from high-quality materials, typically high-speed steel (HSS) or carbide, ensuring excellent cutting performance and long tool life:
     • High-Speed Steel (HSS): Provides a good balance of toughness and wear resistance for a variety of general-purpose milling applications.
     • Carbide: Offers superior hardness and wear resistance, making these hole mills perfect for high-performance applications, including milling through tougher or harder materials like stainless steel, high-strength alloys, and titanium.
5. Efficient Chip Removal:
   • The flute design is engineered to promote efficient chip removal during milling operations, especially when dealing with deeper holes. The flute length of 35 mm ensures that chips are effectively cleared from the cutting area, preventing clogging and overheating, which helps extend the life of the tool and ensures more consistent cutting performance.
6. Stable and Accurate Milling:
   • The Pluto Unguided Hole Mills are designed to provide stable and accurate milling during operations. Their flexibility in design allows them to handle intricate and detailed hole milling without losing accuracy, and they are engineered to minimize vibration and tool deflection during operation.
7. Versatile Material Compatibility:
   • The Pluto Hole Mills are versatile tools that can be used on a variety of materials, including:
     • Metals: Suitable for use on steel, stainless steel, cast iron, aluminum, brass, and other metals.
     • Plastics and Composites: Can be used on plastics like PVC, acrylic, and polycarbonate, as well as composite materials like fiberglass and carbon fiber.
     • Wood: While generally used for metals and plastics, some versions of these hole mills can also handle certain woodworking applications, depending on the material.
8. Long Tool Life:
   • The high-quality construction of the tool, combined with efficient chip removal and resistance to wear, ensures the Pluto Unguided Hole Mills provide long tool life even under challenging working conditions, such as high-speed milling or tough material removal tasks.

Technical Specifications:

• Cutting Diameter: 11.8 mm (0.464 inches)
• Shank Diameter: 1 mm (0.039 inches)
• Length of Cut: 112 mm (4.409 inches)
• Overall Length: 190 mm (7.480 inches)
• Flute Length: 35 mm (1.378 inches)
• Material Options: High-Speed Steel (HSS) or Carbide
• Tool Type: Unguided Hole Mill – Type 'B'

Benefits:

• High Precision and Accuracy: The Pluto Unguided Hole Mills offer excellent hole geometry and finish quality, making them perfect for applications where precise hole milling is critical.
• Versatile Use: These tools can be used across a wide range of materials, from metals to plastics and composites, making them versatile for different industries.
• Long Tool Life: The HSS or carbide construction provides durability, reducing the frequency of tool changes and minimizing downtime.
• Efficient Chip Removal: The flute design is optimized for chip clearance, ensuring the tool performs efficiently, especially during deep hole milling operations.
• Stable and Accurate Milling: The unguided Type 'B' design allows for precise milling in a variety of applications, offering flexibility without compromising accuracy.

Applications:

• Deep Hole Milling: These hole mills are ideal for deep hole milling where high accuracy and consistent hole geometry are required.
• Hole Boring and Enlarging: Used for boring or enlarging holes with precision, especially in deep workpieces or parts with complex geometries.
• Tool and Die Making: Suitable for toolmaking operations where precise hole milling is necessary, such as for molds, dies, and jigs.
• Machine Shops: Commonly used in machine shops for various hole milling tasks, including the creation of deep or precision holes in a wide range of materials.
• Aerospace and Automotive:Aerospace and automotive industries can benefit from these tools when milling holes in critical components where high precision and surface finish are required.
• Mold and Die Making: Essential in mold and die making for creating holes, cooling channels, and other features in mold cavities.
• General Milling and Boring Operations: Ideal for general-purpose hole milling in manufacturing and fabrication shops where deep holes or high-precision work is required.

Summary:

The Pluto 11.8 x 112 x 35 x 190 x 1 mm Hole Mills Unguided - Type 'B' are precision tools designed for hole milling, boring, and finishing applications. These tools feature an unguided design, which offers flexibility and accuracy in milling operations, especially for deep holes or intricate geometries. The cutting diameter of 11.8 mm, flute length of 35 mm, and cutting length of 112 mm make them suitable for deep-hole milling tasks in various materials, including metals, plastics, and composites. Available in HSS or carbide, these hole mills offer long tool life, stable cutting performance, and high precision, making them ideal for use in machine shops, toolmaking, mold manufacturing, and aerospace or automotive applications where precision and performance are critical.
