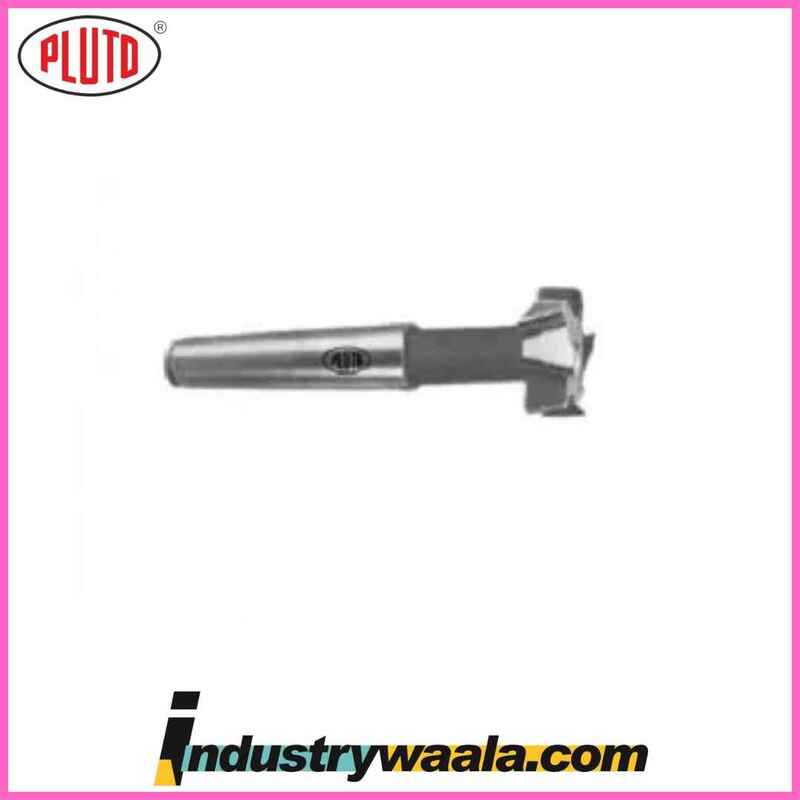

Pluto 22 X 40 X 18 X 138 X 3 MM T-Slot Cutters With Tapper Shank

The Pluto 22 x 40 x 18 x 138 x 3 mm T-Slot Cutters with Taper Shank are high-performance milling tools designed for cutting T-slots in a variety of workpieces. These cutters are typically used in industries such as toolmaking, fixturing, machining, and assembly processes where T-slot milling is essential for holding, clamping, or adjusting components during machining operations.

Key Features:

1. T-Slot Cutting for Precision and Versatility:
   • The T-Slot Cutter is specifically engineered for making T-shaped slots in workpieces, which are essential for securing or clamping components in milling machines, fixtures, and other machining setups.
   • The 22 mm diameter cutter is ideal for cutting medium-sized T-slots, which are commonly required in precision machining and tooling applications.
2. Optimized Dimensions for Versatile Applications:
   • Diameter (D): 22 mm
   • Width of Cut (W): 40 mm
   • Length of Cut (L): 18 mm
   • Overall Length (OAL): 138 mm
   • Shank Diameter: 3 mm
   • The cutter's dimensions ensure it is suitable for a wide range of T-slot cutting applications, with a good balance of cutting depth and slot width for a variety of workpiece sizes.
3. Taper Shank for Secure Fit and Stability:
   • The taper shank allows for a secure and stable fit into the tool holder or spindle, minimizing deflection and vibration during operation. This ensures better control over the cutting process and improves the overall cutting accuracy.
   • The taper design also ensures easy tool changeability and can be used with various types of milling machines and tool holders.
4. Material Options for Durability and Performance:
   • The Pluto T-Slot Cutter is typically made from High-Speed Steel (HSS) or Carbide to deliver excellent cutting performance:
     • HSS (High-Speed Steel) is known for its toughness, wear resistance, and heat resistance, making it suitable for general-purpose cutting of a variety of materials.
     • Carbide offers superior hardness, wear resistance, and tool longevity, making it ideal for high-volume or heavy-duty machining of harder materials.
   • These materials ensure that the cutter maintains its sharpness and durability over extended periods of use, even under demanding conditions.
5. Clean, Smooth Cuts with High Precision:
   • The Pluto T-Slot Cutter features precisely ground cutting edges that ensure clean, smooth cuts with minimal burr formation. This is essential for creating accurate T-slots with tight tolerances.
   • These clean cuts reduce the need for secondary finishing operations, such as deburring or polishing, resulting in better efficiency and cost savings.
6. Efficient Chip Removal for Enhanced Performance:
   • The cutter's flute design promotes efficient chip removal, ensuring that chips are cleared away from the cutting area to prevent clogs and overheating.
   • Effective chip clearance improves the tool's performance, allowing for faster cutting speeds and reducing wear, leading to longer tool life and increased machining efficiency.
7. Wide Range of Applications:
   • Toolmaking and Fixturing: Used for cutting T-slots in fixture plates, tooling, and clamping devices used in precision machining setups.
   • Automotive and Aerospace: Ideal for producing mounting slots and clamping slots for parts in assembly jigs, robotic systems, and machining centers.
   • Mold and Die Making: Perfect for creating T-slots in molds and dies to facilitate adjustments or mounting during manufacturing operations.
   • General Manufacturing and Milling: Suitable for use in milling operations where T-slots are needed to secure workpieces in place during machining or assembly processes.
8. Stable Cutting Action for Consistency:
   • The taper shank ensures stable cutting by reducing deflection and vibration during the milling process. This contributes to consistent, high-quality cuts and ensures tighter tolerances and better surface finishes.
   • The stability provided by the taper shank is particularly useful when cutting deep slots or during extended machining runs.

Technical Specifications:

• Diameter (D): 22 mm
• Width of Cut (W): 40 mm
• Length of Cut (L): 18 mm
• Overall Length (OAL): 138 mm
• Shank Diameter: 3 mm
• Shank Type: Taper Shank
• Material Options: High-Speed Steel (HSS) or Carbide
• Tool Type: T-Slot Cutter with Taper Shank

Benefits:

• High Precision: Produces clean, precise T-slot cuts with minimal burr formation, ideal for applications requiring tight tolerances.
• Durability and Long Tool Life: Made from HSS or Carbide, the cutter is designed for high wear resistance, enabling it to last longer even under demanding machining conditions.
• Stable Cutting Action: The tapered shank ensures reduced vibration and tool deflection, improving cutting stability and consistent results.
• Versatile Applications: Suitable for a variety of industries such as toolmaking, automotive, aerospace, mold and die making, and general milling operations.
• Efficient Chip Removal: The flute design ensures effective chip clearance, enhancing cutting speed and reducing tool wear for better efficiency.

Applications:

• Toolmaking and Fixturing: Perfect for creating T-slots in fixture plates and clamping devices used in milling machines and machining centers.
• Automotive and Aerospace Manufacturing: Used to create T-slots for securing parts in assembly jigs, robotic machining systems, and precision machining operations.
• Mold and Die Making: Ideal for cutting T-slots in molds, dies, and tools for use in manufacturing or molding processes.
• General Milling and Machining: Suitable for cutting T-slots in a variety of materials such as metal, plastics, and composites during milling or machining operations.

Summary:

The Pluto 22 x 40 x 18 x 138 x 3 mm T-Slot Cutters with Taper Shank are precision milling tools specifically designed for cutting T-slots in workpieces. Featuring a taper shank for secure fitment and stable cutting action, these cutters are ideal for use in toolmaking, fixturing, machining, and other applications that require precise T-slot milling. Made from durable HSS or Carbide, these cutters offer long-lasting performance, clean cuts, and high precision in a variety of industries such as automotive, aerospace, mold making, and general manufacturing. With their stable cutting and efficient chip removal, they provide consistent results, longer tool life, and improved machining efficiency.
