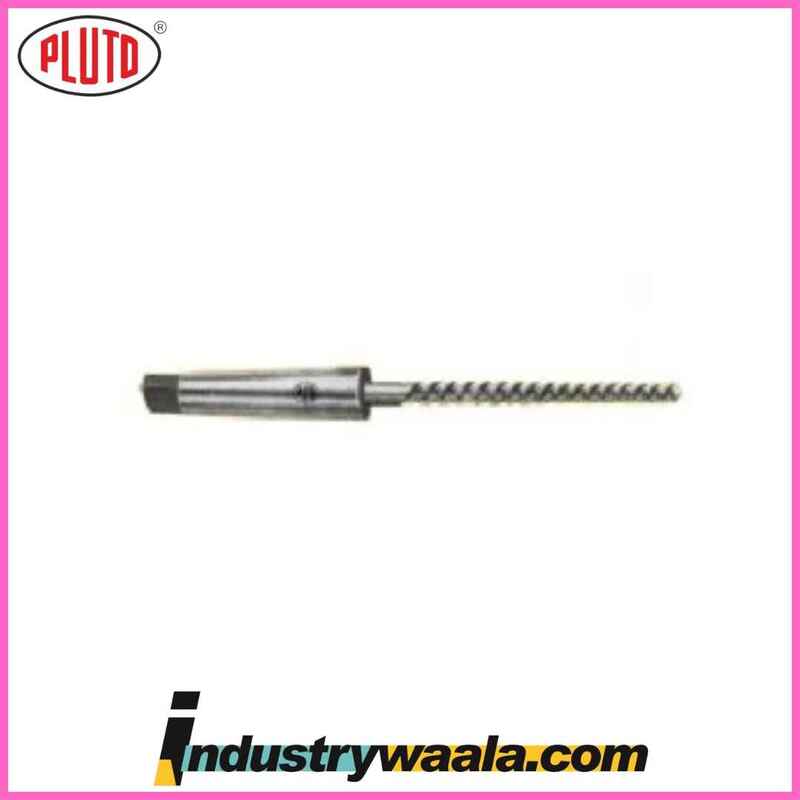

Pluto 3/16 X 3.1/8 X 6.1/16 X 0.195 Inch Machine Taper Pin Reamers

The Pluto 3/16 X 3.1/8 X 6.1/16 X 0.195 Inch Machine Taper Pin Reamers are specialized precision tools designed for reaming tapered holes, particularly in machine shops, factories, and industrial settings where high-accuracy and efficient machining are essential. These reamers are specifically designed for use with tapered pins, often used in applications like fastening, alignment, or mechanical assembly.

Let’s break down the specifications of the Pluto Machine Taper Pin Reamers:

Pluto 3/16 X 3.1/8 X 6.1/16 X 0.195 Inch Machine Taper Pin Reamers: Detailed Description

Tool Overview:

Pluto's Machine Taper Pin Reamers are designed to refine and finish tapered holes, ensuring smooth, accurate fits for taper pins. These reamers are engineered for use in various mechanical assembly processes, such as securing machine components, shafts, or aligning parts in complex machinery. Reaming with these tools ensures a precise hole diameter and improved fit, contributing to better overall performance and longevity of machine components.

Key Features:

• Taper Pin Reaming: A taper pin reamer is used to finish a hole that has been pre-drilled or tapered, typically for inserting a taper pin. The taper pin's conical shape fits snugly into a reamed hole, and it is used to fasten two parts together or ensure precise alignment. These reamers are designed to finish the hole to exact specifications, ensuring a tight and secure fit for the pin.
• Material & Construction: Pluto machine taper pin reamers are manufactured using high-quality tool steel or carbide for exceptional durability and wear resistance. This ensures that the reamers will perform reliably in heavy-duty applications, maintaining their sharpness and precision even after extended use in demanding environments.
• Precision Tapered Design: The reamers are designed to accurately machine a tapered hole, which is essential for the insertion of taper pins. The tapered geometry ensures that the resulting hole is uniform, smooth, and perfectly suited for the taper pin to seat properly, minimizing the potential for loosening or misalignment.
• Size & Dimensions:
  • 3/16 Inch (0.1875 in) Diameter: This is the nominal diameter of the taper pin that the reamer is designed to accommodate. This reamer will finish holes to the correct size for taper pins of this diameter.
  • 3.1/8 Inches (3.125 in) Length: This is the overall length of the reamer, which indicates how deep the reamer can cut into a workpiece. The length allows for deep-hole reaming while maintaining stability and control over the machining process.
  • 6.1/16 Inches (6.0625 in) Length of Cut: This is the effective cutting length of the reamer. It refers to the part of the reamer that engages the material to shape the hole. This length provides enough cutting area to process taper pins efficiently.
  • 0.195 Inch (0.195 in) Shank Diameter: This is the shank diameter of the reamer, which determines the size of the chuck or tool holder that can securely grip the reamer. A 0.195-inch shank is a precise and standard size for machine tool applications.
• High Precision Taper Fit: The Pluto taper pin reamers are engineered to achieve a specific taper angle, typically 1:48 or 1:50, which ensures the hole and pin fit together with precision. This high level of precision reduces wear and prevents loosening or misalignment of components during mechanical operation.
• Machine Compatibility: These reamers are designed for use in various machine tools, including drill presses, lathes, and CNC machines. They can be used with both manual and automatic machines, making them versatile tools for a range of industrial and manufacturing tasks.

Applications:

• Taper Pin Hole Preparation: The primary application of these reamers is for preparing and finishing holes for taper pins. Taper pins are commonly used in machinery for fastening or aligning parts, and ensuring that the holes are accurately reamed is crucial to ensure the pin fits properly.
• Machine Assembly & Fastening: Taper pins are often used in mechanical assembly for holding machine components in place. These reamers ensure that the pin will fit securely, helping to prevent loosening or shifting during operation, and providing an easy, reliable way to secure parts.
• Mechanical Engineering & Manufacturing: In manufacturing, taper pin reamers are often used in the production of machinery or heavy equipment where precise fitting parts are essential for safe, effective operation. They are used to finalize holes that will house taper pins in structures like gears, shafts, or bushings.
• Repair and Maintenance Work: These reamers can be used in maintenance or repair operations, particularly when dealing with worn or oversized holes that need to be reamed back to their proper dimensions for taper pin insertion.
• Aligning and Positioning in Jigs: In complex mechanical systems, taper pins are often used to align components in jigs or fixtures. These reamers ensure that the alignment holes are tapered precisely to accommodate the pin, improving accuracy during assembly processes.

Advantages:

• Precision & Accuracy: Pluto taper pin reamers offer exceptional precision, allowing for precise hole sizes and ensuring a tight, secure fit for taper pins. This results in improved alignment and function of mechanical assemblies.
• Durability: Constructed from high-quality materials, these reamers are built to withstand wear and tear, providing long-term reliability and fewer replacements in heavy-duty applications.
• Smooth Finish: Reaming with these tools results in a smooth, burr-free finish that minimizes friction and ensures that taper pins seat perfectly, reducing the risk of loosening or misalignment.
• Efficiency: The reamers reduce the time needed to finish a hole accurately, improving the overall efficiency of production or assembly processes. The sharp cutting edges allow for faster material removal and smoother cuts.
• Versatility: These reamers are compatible with a wide range of machine tools and are suitable for different materials, such as steel, cast iron, or aluminum, making them highly versatile for various industrial applications.

Conclusion:

The Pluto 3/16 X 3.1/8 X 6.1/16 X 0.195 Inch Machine Taper Pin Reamers are highly precise and durable tools designed to finish tapered holes for taper pins with exceptional accuracy and efficiency. These reamers are essential for mechanical assemblies where alignment and secure fastening are critical, offering a smooth, accurate hole finish to accommodate taper pins for reliable performance.

Whether you're working on high-precision machine assembly, manufacturing, or maintenance, these reamers will ensure your taper pins fit perfectly, providing lasting durability and secure connections in all your mechanical applications.
