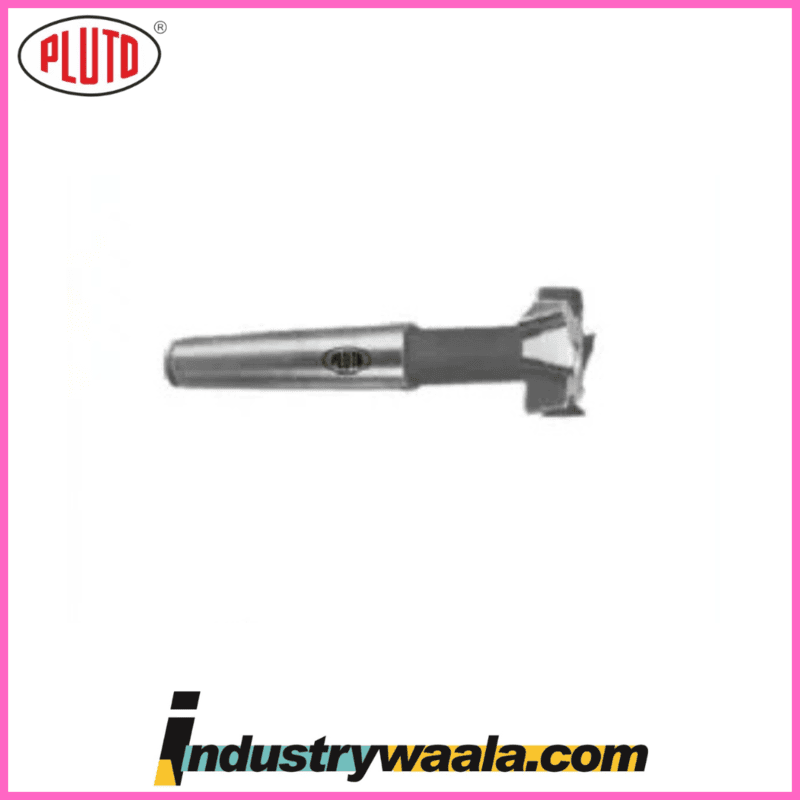

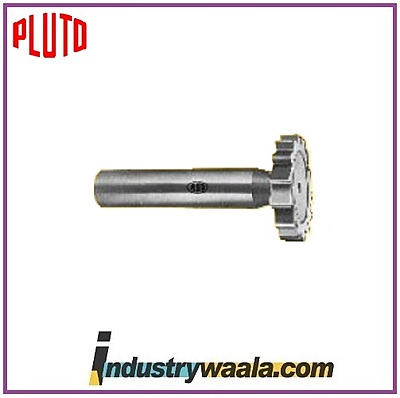

Pluto 32.5 X 12 X 10 X 71 X 10 X 13 MM Woodruff Key Slot Cutters

The Pluto 32.5 x 12 x 10 x 71 x 10 x 13 mm Woodruff Key Slot Cutters are precision tools designed to mill Woodruff key slots in various components such as shafts, gears, and machine parts. Woodruff keyways are commonly used for locking rotating parts in place by providing a secure interface between the key and the keyway. These cutters ensure high accuracy and smooth finishes, which are critical for machining applications in industries such as machinery manufacturing, automotive, and power transmission.

Key Features:

1. Precision Woodruff Key Slot Milling:
   • The Pluto Woodruff Key Slot Cutter is specially designed for cutting Woodruff keyways—a common type of keyway used in various industries to prevent slippage between rotating parts and their shafts.
   • The tool helps to create keyways with precise dimensions, ensuring a tight fit for Woodruff keys and offering secure and reliable component assembly.
2. Optimized Dimensions for Woodruff Keyways:
   • Diameter (D): 32.5 mm
   • Width of Cut (W): 12 mm
   • Length of Cut (L): 10 mm
   • Overall Length (OAL): 71 mm
   • Shank Diameter: 10 mm
   • Keyway Width: 13 mm
   • These dimensions are ideal for creating Woodruff keyways in components, providing the correct depth and width required for a standard Woodruff key.
3. Durable and High-Performance Material:
   • The Pluto Woodruff Key Slot Cutter is typically manufactured from High-Speed Steel (HSS) or Carbide.
     • HSS (High-Speed Steel): Suitable for general-purpose milling applications, offering a good balance of toughness and heat resistance for cutting a variety of materials.
     • Carbide: Offers superior hardness, wear resistance, and the ability to perform well at higher cutting speeds, making it ideal for cutting harder materials or for high-speed operations.
4. Efficient Chip Removal:
   • The flute design of the cutter ensures effective chip removal, preventing buildup and reducing the risk of overheating during the cutting process.
   • Efficient chip clearance allows for cleaner cuts and enhances the cutter's tool life, making it more efficient for extended use.
5. Stable Cutting Action for Precision:
   • The precision-ground teeth of the cutter and the 10 mm shank diameter help maintain stability during the milling process.
   • The stable cutting action minimizes vibration and tool deflection, ensuring high-quality keyway slots with minimal tolerance deviations.
6. Wide Application Range:
   • Machinery Manufacturing: Commonly used for cutting Woodruff key slots in shafts, gears, pulleys, and other rotating components, ensuring tight fits for Woodruff keys in machine assemblies.
   • Automotive and Power Transmission: Widely employed in automotive and power transmission systems for creating keyways in gears, shafts, flywheels, and other critical rotating components.
   • General Manufacturing: Suitable for general-purpose milling applications where keyway cutting is required to secure rotating parts in position.
7. Versatility and Compatibility:
   • This Woodruff key slot cutter is compatible with various milling machines such as CNC, horizontal mills, and vertical mills.
   • The 10 mm shank diameter ensures that the cutter can be securely mounted in standard tool holders, allowing for easy tool changes and stable cutting operations.

Technical Specifications:

• Diameter (D): 32.5 mm
• Width of Cut (W): 12 mm
• Length of Cut (L): 10 mm
• Overall Length (OAL): 71 mm
• Shank Diameter: 10 mm
• Keyway Width: 13 mm
• Material Options: High-Speed Steel (HSS) or Carbide
• Tool Type: Woodruff Key Slot Cutter

Benefits:

• Precision and Accuracy: Designed to create accurate Woodruff key slots with minimal tolerances, ensuring the keyways match the dimensions needed for a secure fit.
• Long Tool Life: Made from HSS or Carbide, the cutter is built to withstand the wear and tear of cutting operations, providing extended tool life and reduced downtime.
• Stable Cutting Performance: The tapered shank and precision teeth minimize vibration and deflection, ensuring consistent results in every cut.
• Efficient Chip Removal: The cutter's flute design helps clear chips effectively, preventing clogging and maintaining cutting efficiency.
• Versatile Applications: Suitable for various industries, including machinery, automotive, power transmission, and general manufacturing.

Applications:

• Machinery and Equipment Manufacturing: Used for cutting keyways in shafts, gears, and other components that need to accommodate Woodruff keys for secure fitting and assembly.
• Automotive and Power Transmission: Ideal for creating keyways in gears, shafts, flywheels, and other critical parts in automotive and industrial applications.
• General Manufacturing and Tooling: Excellent for general milling operations where precise Woodruff key slots are needed for secure mounting and assembly in various mechanical systems.

Summary:

The Pluto 32.5 x 12 x 10 x 71 x 10 x 13 mm Woodruff Key Slot Cutter is a high-quality milling tool designed to cut Woodruff keyways in a wide range of materials. Made from durable HSS or Carbide, this cutter provides precision cutting, long tool life, and consistent performance. Whether used in machinery manufacturing, automotive, or power transmission applications, the Pluto Woodruff Key Slot Cutter ensures secure fits for Woodruff keys in critical components, offering high accuracy and smooth finishes for various milling tasks
