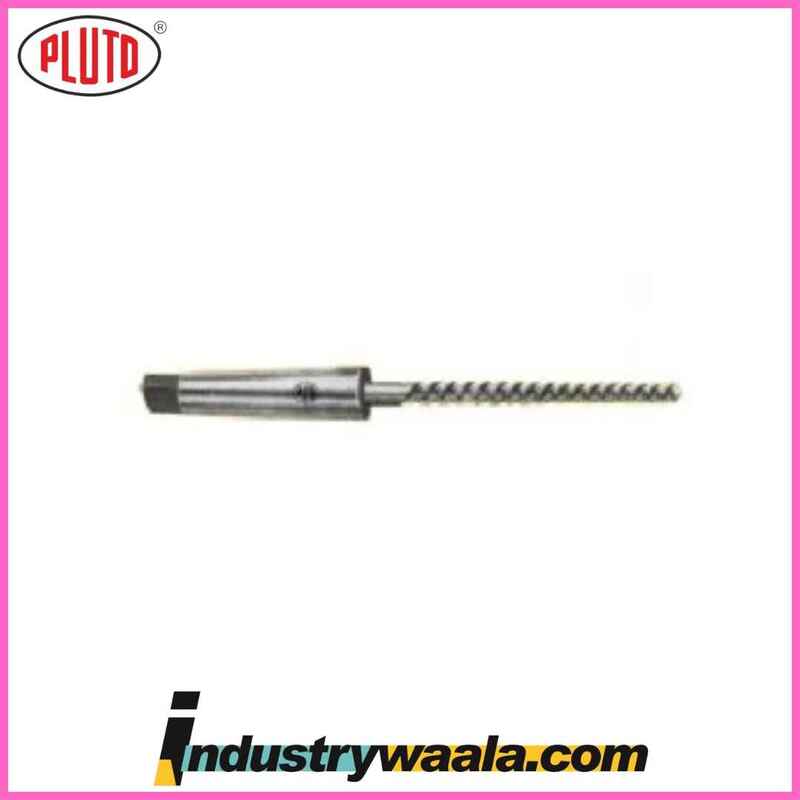

Pluto 7/16 X 6.11/16 X 9.3/4 X 0.443 Inch Machine Taper Pin Reamers

The Pluto 13/32 X 6.9/16 X 9.5/8 X 0.412 Inch Machine Taper Pin Reamers are high-precision reaming tools designed for the accurate finishing of tapered holes, typically used in applications that require the insertion of taper pins for alignment, fastening, or precision fitting. These reamers are essential in ensuring a tight and accurate fit for taper pins, commonly used in machinery, engineering, and industrial assembly.

Here is a detailed breakdown of the key features, specifications, and applications of these Pluto Machine Taper Pin Reamers:

Key Features and Specifications:

1. Size and Dimensions:
   • Reamer Size: 13/32 inch (approximately 10.32mm) diameter at the large end of the reamer.
   • Overall Length: 6.9/16 inches (approximately 165mm) long, providing an optimal length for deep reaming in a variety of workpieces.
   • Flute Length: 9.5/8 inches (approximately 238mm) flute length, which allows the reamer to reach and clean deep, tapered holes with precision.
   • Taper Pin Diameter: The 0.412 inch diameter (approximately 10.47mm) refers to the shank size of the taper pin the reamer is designed to work with. This ensures that the reamer is appropriately sized to finish holes for specific taper pins, typically used for machine alignment and fastening.
2. Taper Pin Reamer Design:
   • Tapered Reamer: These reamers are specifically designed to enlarge and finish holes that will accept taper pins. Taper pin reamers have a tapered cutting geometry (usually with a 1:48 or similar taper ratio) that helps create a precisely tapered hole for pins to fit into securely. The taper ensures that the hole gradually increases in diameter as it goes deeper, allowing the taper pin to be inserted smoothly and lock into place.
   • Precise Taper Angle: The taper angle is precisely cut to ensure that the reamed hole fits the taper pin perfectly. This is essential in applications where alignment, tight tolerances, and ease of pin insertion are critical.
3. Material Construction:
   • These reamers are made from high-speed steel (HSS) or similar high-strength alloys, offering exceptional durability, wear resistance, and the ability to maintain sharp cutting edges even under heavy use. This makes the Pluto taper pin reamers ideal for both manual and machine tool operations where a consistent, clean finish is required.
   • Some versions may feature carbide tips or coating for even higher wear resistance, especially when working with harder materials such as steel, castings, or other tough alloys.
4. Flute Design:
   • The flutes on the reamer are designed for efficient chip removal and smooth cutting action. The reamers have a spiral flute design that helps clear material efficiently as the tool progresses through the hole, minimizing heat buildup and reducing the risk of tool binding or chipping.
   • The flute length and design also ensure that the reamer remains stable and that the hole stays consistent in diameter along its length.
5. Precision and Accuracy:
   • These machine taper pin reamers are made to very precise tolerances to ensure that the holes they create have the exact diameter and taper needed to accept taper pins securely. The reamers are designed for use in high-precision industries such as manufacturing, machinery, and automotive assembly.
6. Cutting Action:
   • Taper pin reamers are designed for finishing holes with a fine, smooth surface finish. They are not intended for heavy material removal but are ideal for creating the final dimensions of the hole after it has been drilled. The tool is typically used with a slow cutting speed and light feed to avoid chatter and ensure a precise fit.

Applications:

1. Machine Assembly:
   • Taper pin reamers are frequently used in machine assembly for finishing holes where taper pins will be inserted. These pins are used for aligning parts or fixing components in place, and the tapered hole ensures a tight, secure fit.
2. Automotive and Engineering:
   • In automotive and engineering fields, taper pins are used for accurate alignment and fastening of parts. Taper pin reamers are essential in creating the precise holes necessary for these pins, especially in the assembly of high-precision machinery.
3. Structural and Mechanical Fitting:
   • Taper pins are often used in heavy machinery, structural steel work, and mechanical fittings, where a secure, aligned joint is needed. These reamers are ideal for ensuring the right fit for such pins in various metal and mechanical applications.
4. Tool and Die Making:
   • These reamers are commonly used in tool and die making for producing components that require precise taper pin holes. Accurate hole finishing ensures the correct fit and function of the taper pins in molds, dies, and tooling systems.
5. Repair and Maintenance:
   • Taper pin reamers are also useful in repair and maintenance applications, particularly when holes have been damaged or need to be re-sized to fit a different taper pin.

Conclusion:

The Pluto 13/32 X 6.9/16 X 9.5/8 X 0.412 Inch Machine Taper Pin Reamers are high-quality, precision tools designed for finishing tapered holes for taper pins in industrial and mechanical applications. Made from durable high-speed steel (HSS), these reamers ensure a precise, accurate, and smooth hole that allows for the secure insertion of taper pins, which are commonly used in machinery assembly, automotive, toolmaking, and various other high-precision fields.

The tool’s precision, high-quality construction, and reliable cutting performance make it an essential tool for achieving tight tolerances and ensuring the proper alignment and function of tapered pin joints. Whether for new builds or repairs, these reamers provide the accuracy and durability needed for long-lasting, high-performance results.
