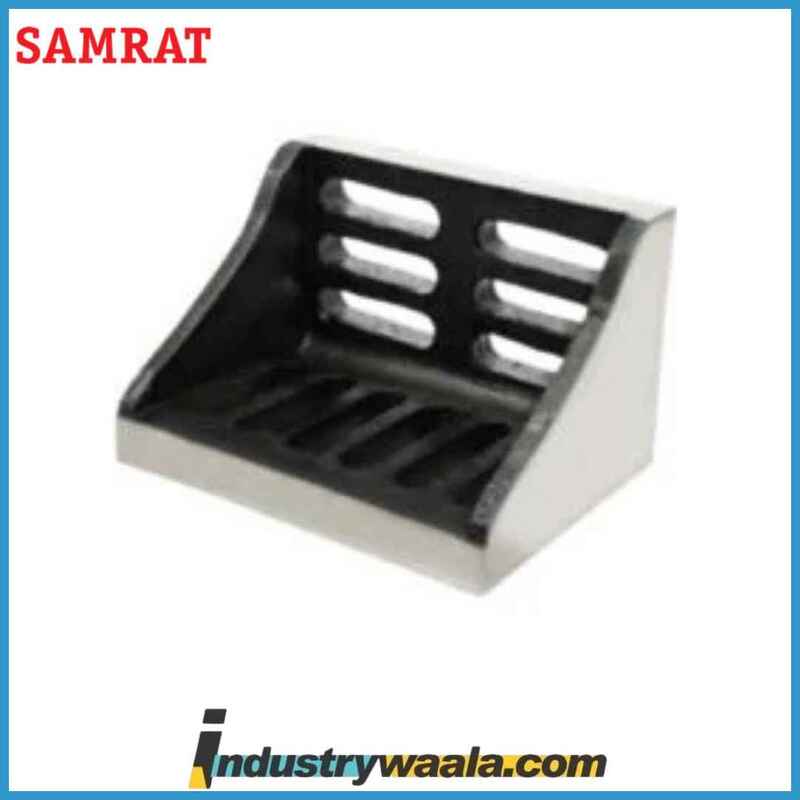

Samrat 112x88x75, 201 Cast Iron Angle Plates Webbed End(Slotted)

Samrat 112x88x75, 201 Cast Iron Angle Plates Webbed End (Slotted) – Detailed Description

Material and Construction:

• Cast Iron Composition: The Samrat 112x88x75, 201 Cast Iron Angle Plate is crafted from high-quality cast iron, a material known for its excellent strength, durability, and vibration-damping properties. Cast iron’s ability to absorb vibrations makes it an ideal choice for precision work, as it minimizes the risk of misalignment during machining or assembly tasks, ensuring greater accuracy in the final output.

Dimensions:

• 112x88x75 mm: With overall dimensions of 112 mm in length, 88 mm in width, and 75 mm in height, the Samrat 112x88x75, 201 Cast Iron Angle Plate is designed for medium-sized workpieces that require precise alignment. Its compact and sturdy design provides robust support and ensures accurate positioning during various industrial operations.

Design and Functionality:

• 90-Degree Angle Plate: The angle plate features a precise 90-degree angle, ensuring workpieces are securely positioned at the correct orientation for machining, assembly, or inspection. This right-angle configuration is critical for maintaining alignment and achieving accurate results in precision tasks.
• Webbed End Design (Slotted): The webbed end design of the plate enhances its rigidity, enabling it to support larger workpieces without distortion or misalignment. The slotted design at the ends of the angle plate provides flexibility and ease of mounting. It allows the plate to be quickly and securely attached to machines, fixtures, or workstations, facilitating efficient setups and minimizing downtime.

Applications:

• Machining and Workholding: The Samrat 112x88x75 Cast Iron Angle Plate is ideal for various machining operations, such as milling, drilling, and grinding, where precise alignment is essential. The 90-degree angle ensures that the workpieces remain securely positioned during these processes, improving machining accuracy and reducing the risk of errors.
• Tooling and Assembly: This angle plate is also beneficial in tooling and assembly operations, where components need to be held steady for welding, fastening, or assembly. The plate’s rigid structure provides reliable support, ensuring that components stay in the correct position throughout the process.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate is commonly used as a reference surface for measuring the alignment and accuracy of workpieces during inspection. The plate's precision and stability help ensure that parts are aligned correctly for accurate measurements and inspections.

Durability and Performance:

• High Load-Bearing Capacity: The Samrat 112x88x75 Cast Iron Angle Plate is designed to withstand heavy loads and stress during industrial operations. Its robust webbed construction ensures that it remains rigid even under pressure, supporting larger workpieces without compromising its performance.
• Vibration Damping: Cast iron is well-known for its ability to absorb and dampen vibrations, which makes the Samrat Cast Iron Angle Plate particularly effective in reducing the impact of external vibrations from surrounding machinery. This helps maintain precise alignment, even during high-speed machining operations, resulting in better-quality outputs.
• Corrosion Resistance: The cast iron material is highly resistant to corrosion, ensuring the angle plate will maintain its functionality and appearance over time, even in humid or harsh environments. This corrosion resistance makes the Samrat Cast Iron Angle Plate a reliable, long-lasting tool for industrial use.

Ease of Use:

• Slotted Design for Flexibility: The slotted ends of the angle plate provide flexibility, allowing it to be easily mounted on different machines or fixtures. The open-ended slots allow for quick adjustments, making it easy to secure the plate into place without complicated setups. This feature is ideal for time-sensitive operations that require fast and efficient changes.
• Compact and Lightweight: With its smaller size, the Samrat 112x88x75 Cast Iron Angle Plate is easy to handle and transport, making it suitable for a range of different workpieces. Its compact design allows it to be used in confined spaces where larger angle plates may not fit, while still maintaining high levels of precision.
• Low Maintenance: Cast iron requires minimal maintenance, making this angle plate a low-upkeep solution for industrial environments. The Samrat 112x88x75 Cast Iron Angle Plate will provide reliable performance with basic cleaning and periodic inspections, ensuring it continues to serve efficiently for an extended period.

Conclusion:

The Samrat 112x88x75, 201 Cast Iron Angle Plate Webbed End (Slotted) is a versatile and durable tool that ensures precision alignment and stability in machining, assembly, and inspection tasks. Crafted from high-quality cast iron, it offers superior vibration damping, high load-bearing capacity, and corrosion resistance. Its precise 90-degree angle and flexible slotted design make it an excellent choice for medium-sized workpieces that require accurate positioning. Whether used in machining, assembly, or inspection, this angle plate provides reliable support, ensuring accurate results and high-quality output in demanding industrial applications.
