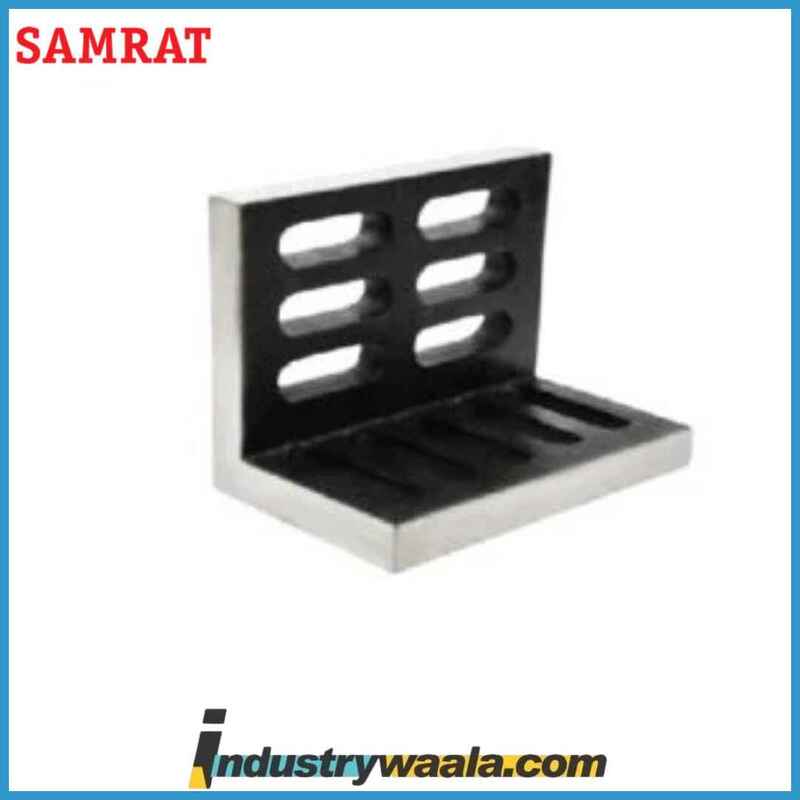

Samrat 112x88x75, 301 Cast Iron Angle Plates Open End (Slotted)

Samrat 112x88x75, 301 Cast Iron Angle Plates Open End (Slotted) – Detailed Description

Material and Construction:

• Premium Cast Iron: The Samrat 112x88x75, 301 Cast Iron Angle Plate is manufactured from high-quality cast iron known for its durability, strength, and vibration-damping properties. The material provides excellent resistance to wear and tear, making it ideal for use in demanding industrial environments. The vibration-damping characteristics of cast iron ensure that the plate helps minimize any vibrations during machining, ensuring more accurate and stable results.

Dimensions:

• 112x88x75 mm: The Samrat 112x88x75 Cast Iron Angle Plate offers precise dimensions of 112 mm in length, 88 mm in width, and 75 mm in height, making it perfect for smaller to medium-sized workpieces. The compact design provides a stable platform for alignment and positioning tasks without occupying excessive space, making it suitable for a variety of workshop and machining environments.

Design and Functionality:

• 90-Degree Angle Plate: The 90-degree angle of the plate provides a reliable and stable reference surface for securing and aligning workpieces. Whether for machining, assembly, or inspection, the angle plate guarantees that the workpieces are accurately positioned and held in place, ensuring precise outcomes during operations.
• Open-End (Slotted) Design: The open-end slotted design enhances the flexibility of the angle plate, enabling quick and easy mounting on machines, workstations, or fixtures. This slotted feature allows for easy adjustments and repositioning of the plate, offering versatility in accommodating different workpiece sizes and configurations. The open-end design also reduces setup time and boosts operational efficiency.

Applications:

• Machining Operations: The Samrat 112x88x75 Cast Iron Angle Plate is an ideal tool for use in precision machining operations, including milling, drilling, and grinding. The secure and accurate positioning provided by the angle plate ensures that workpieces are aligned correctly, reducing the chances of misalignment and improving machining accuracy.
• Tooling and Assembly: The angle plate is also widely used for tooling and assembly tasks. It provides a stable surface for clamping, welding, and assembling parts. The plate helps maintain correct alignment during these operations, ensuring that parts are securely positioned and held in place for accurate results.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate serves as an excellent reference surface for measuring and calibrating workpieces. It provides a stable and precise surface, allowing for accurate inspection of workpieces during quality control processes. It is used to check the flatness, straightness, and alignment of components, ensuring that they meet required specifications.

Durability and Performance:

• Heavy-Duty Load-Bearing Capacity: Despite its compact size, the Samrat 112x88x75 Cast Iron Angle Plate is designed to withstand heavy loads and pressures without compromising its structural integrity. The robust construction ensures that the plate can support heavy or bulky workpieces, providing stable positioning during machining or assembly.
• Vibration Dampening: The cast iron material effectively absorbs vibrations during machining or other operations, minimizing the impact of external forces. This helps maintain the stability of the workpiece and ensures that precision is maintained, even during high-speed machining processes.
• Corrosion Resistance: The cast iron construction provides excellent resistance to corrosion, which is particularly beneficial in environments where exposure to moisture or chemicals may occur. The angle plate will maintain its performance and appearance even under challenging conditions, ensuring longevity and consistent reliability.

Ease of Use:

• Slotted Design for Flexibility: The open-end slotted design enables easy and quick mounting to machines, fixtures, and workstations. The slots make it simple to adjust and reposition the plate, offering flexibility to accommodate various workpieces and setup configurations. This design minimizes setup time and increases productivity by allowing rapid adjustments.
• Compact and Ergonomic: The Samrat 112x88x75 Cast Iron Angle Plate is designed to be compact and easy to handle. Its small size allows for easy transportation and positioning, making it highly versatile and efficient in tight or confined spaces where larger angle plates may not be suitable.
• Low Maintenance: Cast iron is relatively low maintenance, requiring only basic cleaning and periodic checks for wear. The material’s durability and resistance to corrosion mean that the angle plate can be used for extended periods with minimal maintenance, ensuring long-term reliability and cost-effectiveness.

Conclusion:

The Samrat 112x88x75, 301 Cast Iron Angle Plate Open End (Slotted) is a versatile, durable, and high-precision tool designed to provide accurate alignment, stability, and workholding for a wide range of machining, assembly, and inspection tasks. Its 90-degree angle ensures that workpieces are held securely and precisely, while the open-end slotted design offers flexibility and quick setup. Made from high-quality cast iron, this angle plate is capable of withstanding heavy loads, absorbing vibrations, and resisting corrosion, making it an ideal solution for demanding industrial applications.
