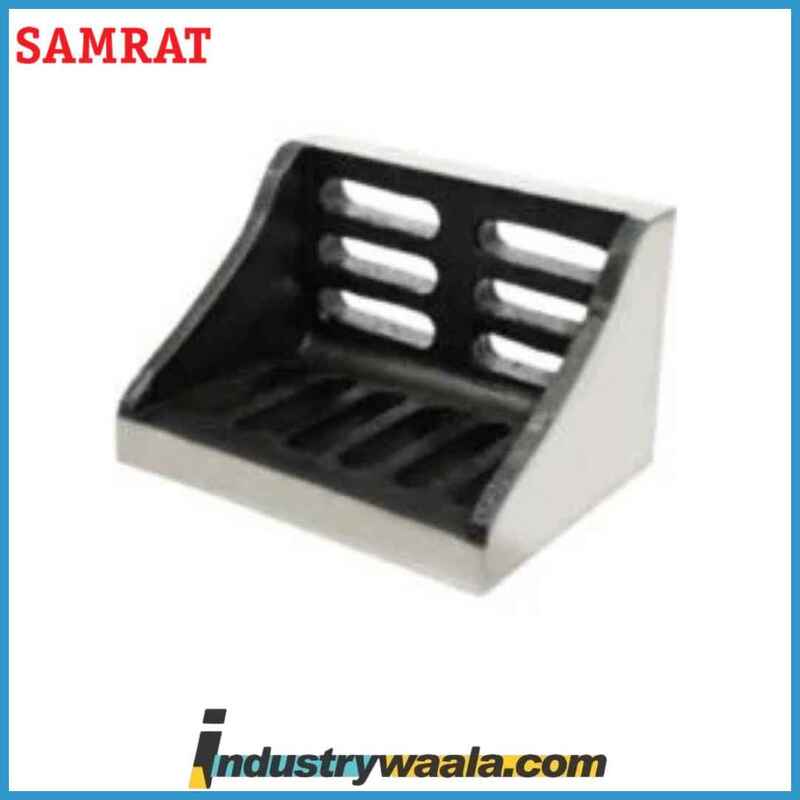

Samrat 150x125x112, 202 Cast Iron Angle Plates Webbed End(Slotted)

Samrat 150x125x112, 202 Cast Iron Angle Plates Webbed End (Slotted) – Detailed Description

Material and Construction:

• Cast Iron Plate: The Samrat 150x125x112, 202 Cast Iron Angle Plate is constructed from high-quality cast iron, known for its durability, strength, and vibration-damping properties. Cast iron is a preferred material in the manufacturing industry due to its ability to absorb vibrations, which ensures that machines and workpieces remain stable and accurately aligned during operation. The material is also resistant to wear and corrosion, making it suitable for long-term industrial use.

Dimensions:

• 150x125x112 mm: The Samrat 150x125x112 Cast Iron Angle Plate has compact dimensions, measuring 150 mm in length, 125 mm in width, and 112 mm in height. These dimensions make it ideal for small to medium-sized machining, tooling, and assembly tasks, offering ample support and stability for precision work without occupying excessive space. Its manageable size ensures it is easy to handle while still providing the required strength and rigidity for demanding tasks.

Design and Functionality:

• Angle Plate Configuration: The Samrat 150x125x112, 202 Cast Iron Angle Plate features a precise 90-degree angle, making it a perfect tool for accurately aligning and positioning workpieces. This angle configuration is critical in applications where parts must be fixed at specific angles, such as machining, assembly, and welding. It ensures that components remain securely in place while maintaining the correct orientation, reducing the risk of errors during processing.
• Webbed End (Slotted Design): The plate is designed with a webbed end to improve rigidity and structural integrity, which helps it support heavy workpieces without warping or losing its shape. The slotted design at the ends of the angle plate offers flexibility and convenience for easy mounting and securing. This design allows for quick and simple attachment to machines, fixtures, or workstations, and is ideal for varying setups in different industrial environments. The slotted feature also reduces the weight of the plate, making it easier to handle without sacrificing its strength or load-bearing capacity.

Applications:

• Machining and Workholding: The Samrat 150x125x112 Cast Iron Angle Plate is commonly used in machining operations such as milling, drilling, turning, and grinding. Its rigid structure and precise 90-degree angle provide a stable base for workpieces, ensuring they are held securely during machining operations. The slotted ends offer quick and flexible mounting, making it versatile for various machine setups.
• Tooling and Assembly: This angle plate is ideal for use in tooling and assembly tasks. It provides a stable surface for aligning and positioning parts, ensuring that components are fixed at the correct angle for welding, fastening, or other assembly processes. Its compact size makes it particularly suitable for smaller workpieces, where a larger angle plate might be unnecessary.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate is also an excellent choice for inspection and calibration applications. Its precise 90-degree angle serves as a reference surface for measuring and verifying the alignment and accuracy of components. The stable and vibration-resistant design ensures that parts remain in place during inspection, resulting in more accurate readings and reducing the likelihood of misalignment.

Durability and Performance:

• High Strength and Load-Bearing Capacity: The Samrat 150x125x112 Cast Iron Angle Plate is designed to bear substantial loads without bending, deflecting, or losing its shape. The webbed design further enhances the plate's ability to support heavy components or machinery. It is capable of withstanding the stresses of continuous industrial use, making it a reliable tool for a variety of precision tasks.
• Vibration Damping: Cast iron is known for its ability to dampen vibrations, and the Samrat Angle Plate takes full advantage of this property. The webbed structure enhances the vibration-damping characteristics of the plate, ensuring that any vibrations from nearby machinery or processes do not interfere with the accuracy of the work being performed.
• Corrosion Resistance: The cast iron construction of the Samrat 150x125x112 Cast Iron Angle Plate provides natural resistance to corrosion. This makes the plate suitable for use in environments where moisture or other corrosive substances might be present. Its resistance to rust and corrosion ensures it remains functional and reliable for many years, even in harsh conditions.

Ease of Use:

• Slotted Design for Easy Mounting: The Samrat 150x125x112 Cast Iron Angle Plate features slotted ends that make it easy to mount and secure on machines, fixtures, or workstations. This slotted design allows for flexible and convenient setups, ensuring the angle plate can be quickly attached and repositioned as needed.
• Stable and Secure: The solid, webbed design ensures the angle plate stays securely in place during use. This minimizes the risk of any movement or misalignment, which could compromise the accuracy of machining or assembly tasks. Its stability ensures that workpieces are properly aligned, improving overall precision and efficiency in operations.
• Low Maintenance: Cast iron is relatively low-maintenance, and the Samrat 150x125x112 Cast Iron Angle Plate is no exception. Occasional cleaning and inspection are sufficient to keep the plate in optimal working condition. The durability of the cast iron ensures that the plate can endure heavy use with minimal wear.

Conclusion:

The Samrat 150x125x112, 202 Cast Iron Angle Plate Webbed End (Slotted) is an essential tool for precision machining, workholding, and assembly operations. With its durable cast iron construction, the plate offers excellent load-bearing capacity, vibration damping, and corrosion resistance. The precise 90-degree angle and webbed end design provide rigidity and stability, while the slotted ends allow for quick and flexible mounting. Ideal for a wide range of industrial applications, this angle plate ensures accuracy, reliability, and long-lasting performance in demanding work environments.
