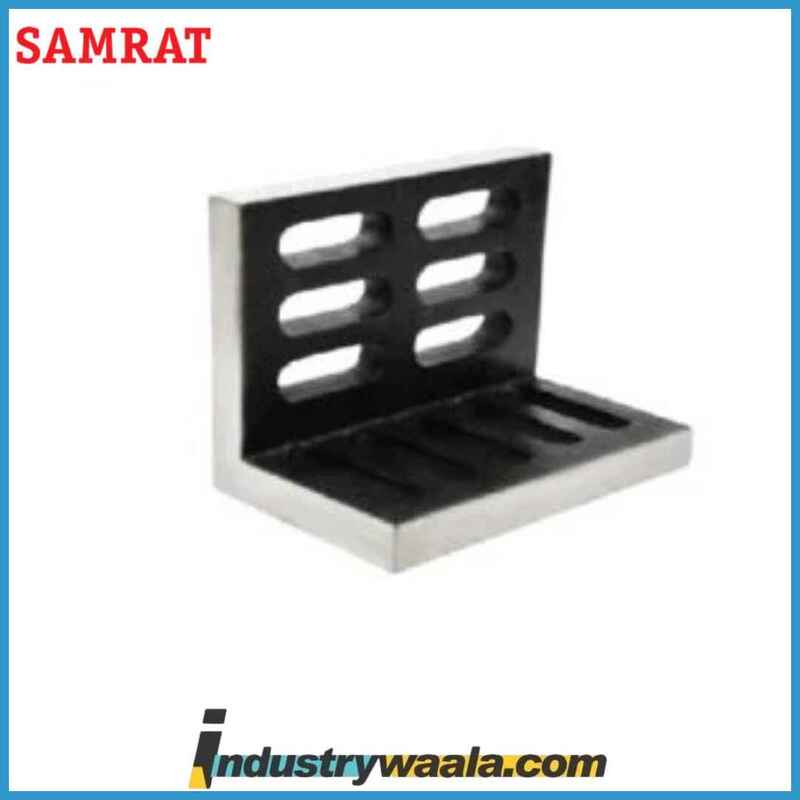

Samrat 150x125x112, 302 Cast Iron Angle Plates Open End (Slotted)

Samrat 150x125x112, 302 Cast Iron Angle Plates Open End (Slotted) – Detailed Description

Material and Construction:

• Premium Cast Iron: The Samrat 150x125x112, 302 Cast Iron Angle Plate is constructed from high-quality cast iron, providing excellent strength, stability, and durability. Cast iron is known for its ability to absorb vibrations, which ensures that your workpieces stay stable during operations like machining, grinding, and assembly. This material is also resistant to wear, ensuring that the plate retains its structural integrity over time, even under heavy use.

Dimensions:

• 150x125x112 mm: The Samrat 150x125x112 Cast Iron Angle Plate has dimensions of 150 mm in length, 125 mm in width, and 112 mm in height, making it a medium-sized option suitable for a wide range of workpieces. This size offers the ideal balance between stability and flexibility, providing ample surface area for positioning and aligning workpieces in various machining tasks.

Design and Functionality:

• 90-Degree Angle Plate: Designed with a 90-degree angle, this angle plate provides a stable and precise surface for securing workpieces at a perfect right angle. This is essential for ensuring accurate positioning during machining, welding, assembly, and inspection operations. The 90-degree feature guarantees consistent alignment and enhances precision throughout various processes.
• Open-End (Slotted) Design: The open-end slotted design adds flexibility to the angle plate. The slotted ends allow easy and secure mounting to various machines, workstations, and fixtures. This design makes it easy to adjust and reposition the plate, making it versatile for different setups and workpiece configurations. The open-end feature also reduces the setup time, allowing for faster transitions between tasks.

Applications:

• Machining Operations: The Samrat 150x125x112 Cast Iron Angle Plate is commonly used in precision machining operations such as milling, grinding, and drilling. It allows workpieces to be held securely at the correct alignment, ensuring that the cutting or grinding process is executed with high accuracy.
• Tooling and Assembly: The angle plate is also widely used in tooling and assembly processes, where parts need to be accurately positioned and aligned during manufacturing. It serves as a reliable reference point for holding components steady while they are welded, fastened, or assembled.
• Inspection and Calibration: This angle plate serves as a stable, flat reference surface for measuring and inspecting workpieces. It can be used for checking alignment, flatness, and other dimensions to ensure that parts meet the required specifications. Its stable structure makes it ideal for use in quality control applications.

Durability and Performance:

• Heavy-Duty Load-Bearing Capacity: Built for heavy-duty tasks, the Samrat 150x125x112 Cast Iron Angle Plate can handle substantial loads without compromising its structural integrity. Its robust design ensures that it can support large or heavy workpieces without bending or warping under pressure, making it ideal for industrial operations.
• Vibration Dampening: The cast iron material effectively dampens vibrations generated during high-speed operations like milling or grinding. This helps maintain the stability of the workpiece, ensuring that machining processes remain accurate and that finished components meet strict tolerance standards.
• Corrosion Resistance: The cast iron construction provides inherent corrosion resistance, ensuring that the angle plate remains in top condition, even when exposed to harsh environments. The material's durability extends the lifespan of the angle plate, making it a reliable long-term tool for various industrial applications.

Ease of Use:

• Slotted Design for Flexibility: The open-end slotted design allows for quick and easy adjustments. The slots make it simple to mount the angle plate onto different machines and fixtures, while also enabling secure positioning for varying workpieces. This flexibility speeds up setup times, reducing downtime during production.
• Compact and Ergonomic: Despite its heavy-duty construction, the Samrat 150x125x112 Cast Iron Angle Plate is designed to be compact and easy to handle. Its size makes it suitable for use in both large and smaller workspaces, while its ergonomic design ensures that it is easy to position and move as needed.
• Low Maintenance: Cast iron is relatively low-maintenance, requiring only periodic cleaning and regular inspections. The angle plate's durability ensures that it remains in good working condition for extended periods, offering excellent value and cost-effectiveness in industrial environments.

Conclusion:

The Samrat 150x125x112, 302 Cast Iron Angle Plate Open End (Slotted) is a reliable and high-precision tool that ensures accurate workpiece alignment in machining, assembly, and inspection applications. Its 90-degree angle provides precise positioning, while the open-end slotted design offers flexibility for quick mounting and adjustments. Constructed from durable cast iron, this angle plate offers excellent vibration damping, load-bearing capacity, and resistance to corrosion, making it ideal for heavy-duty industrial use. With its ease of use and minimal maintenance requirements, it is a highly effective solution for ensuring consistent accuracy in demanding work environments.
