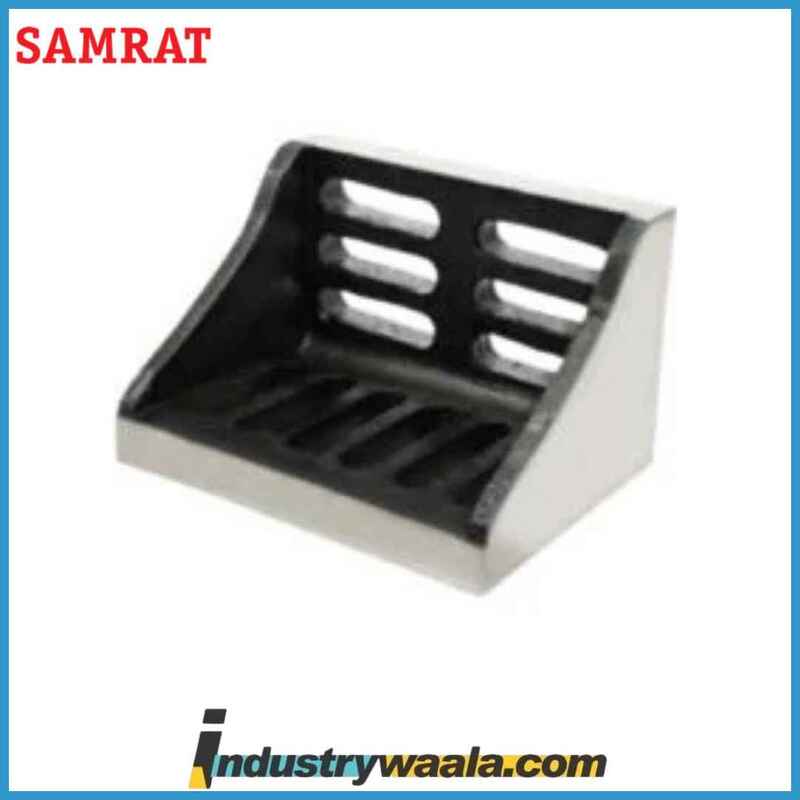

Samrat 175x138x112, 203 Cast Iron Angle Plates Webbed End(Slotted)

Samrat 175x138x112, 203 Cast Iron Angle Plates Webbed End (Slotted) – Detailed Description

Material and Construction:

• Cast Iron Plate: The Samrat 175x138x112, 203 Cast Iron Angle Plate is made from high-quality cast iron, which is renowned for its excellent strength, stability, and vibration-damping properties. Cast iron is ideal for maintaining accuracy in precision work due to its ability to absorb vibrations from surrounding machinery. It also offers resistance to wear and corrosion, ensuring a long lifespan and durability in challenging industrial environments.

Dimensions:

• 175x138x112 mm: With dimensions of 175 mm in length, 138 mm in width, and 112 mm in height, the Samrat Cast Iron Angle Plate is well-suited for smaller to medium-sized machining, assembly, and inspection tasks. These compact dimensions make the plate easy to handle, while still offering the necessary support and stability for precision work.

Design and Functionality:

• 90-Degree Angle Plate: The Samrat 175x138x112 Cast Iron Angle Plate features a precise 90-degree angle, which is essential for applications where workpieces need to be positioned or aligned at right angles. This angle plate ensures that components remain securely held and properly oriented, reducing the chance of misalignment or inaccuracies during machining, welding, or assembly processes.
• Webbed End (Slotted Design): The plate incorporates a webbed end design to enhance rigidity and provide greater load-bearing capacity. This design reduces the overall weight of the angle plate without sacrificing strength, making it easier to handle while maintaining its robustness. Additionally, the slotted ends allow for flexible and secure mounting to machines, fixtures, or workstations, offering ease of use and versatility in various setups.

Applications:

• Machining and Workholding: This angle plate is primarily used in machining processes such as milling, drilling, and grinding. Its rigid structure and precise 90-degree angle provide a stable and secure base for workpieces, ensuring accurate machining and alignment. The slotted ends allow for fast attachment to machines, making it adaptable to different setups.
• Tooling and Assembly: The Samrat 175x138x112 Cast Iron Angle Plate is also highly effective for tooling and assembly applications. It helps align and position components accurately for welding, fastening, or other assembly tasks. Its design ensures that parts remain stationary and aligned, even during complex assembly processes, improving the overall efficiency of the operation.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate can be used in inspection and calibration operations, serving as a precise reference surface for measuring the alignment and accuracy of workpieces. The angle plate's stability and vibration damping ensure that parts remain in place, minimizing errors during quality control checks and ensuring higher accuracy in inspections.

Durability and Performance:

• High Strength and Load-Bearing Capacity: The Samrat 175x138x112 Cast Iron Angle Plate is designed to withstand heavy loads and high stress, making it ideal for use in demanding industrial environments. The webbed end design further increases the load-bearing capacity, ensuring that the plate remains rigid and does not deform under pressure.
• Vibration Damping: The cast iron construction of this angle plate provides superior vibration damping, which is crucial for maintaining accuracy during machining and assembly operations. The webbed design contributes to the overall reduction of vibration, ensuring that external machine movements do not affect the alignment or stability of the workpieces.
• Corrosion Resistance: The cast iron material used in the construction of the Samrat 175x138x112 Angle Plate is resistant to corrosion, ensuring it performs reliably in environments where moisture or other corrosive elements may be present. This corrosion resistance helps maintain the angle plate's structural integrity and extends its lifespan.

Ease of Use:

• Slotted Design for Easy Mounting: The slotted ends of the angle plate make it easy to secure and mount the plate on various fixtures, machines, or workstations. This feature provides flexibility, allowing for quick setup and adjustment, as well as easy repositioning of the plate for different tasks.
• Stability and Precision: The Samrat Cast Iron Angle Plate ensures that workpieces remain stable and securely aligned during operations. Its rigid construction minimizes the risk of shifting or misalignment, which is crucial for maintaining precision and preventing errors in machining, assembly, or inspection tasks.
• Low Maintenance: Cast iron is a low-maintenance material that requires minimal upkeep to remain in good working condition. The Samrat 175x138x112 Cast Iron Angle Plate needs only occasional cleaning and inspection to ensure its continued performance. Its durability ensures that it can withstand the rigors of industrial use without frequent replacements or repairs.

Conclusion:

The Samrat 175x138x112, 203 Cast Iron Angle Plate Webbed End (Slotted) is an essential tool for precision machining, tooling, assembly, and inspection. Its robust cast iron construction provides strength and stability, while the precise 90-degree angle ensures accurate workpiece alignment. The webbed end and slotted design offer increased rigidity, flexibility, and ease of mounting, making this angle plate versatile and adaptable for various industrial tasks. Ideal for medium-sized applications, it offers long-lasting performance, reliability, and precision, making it an invaluable tool in the workshop or production facility.
