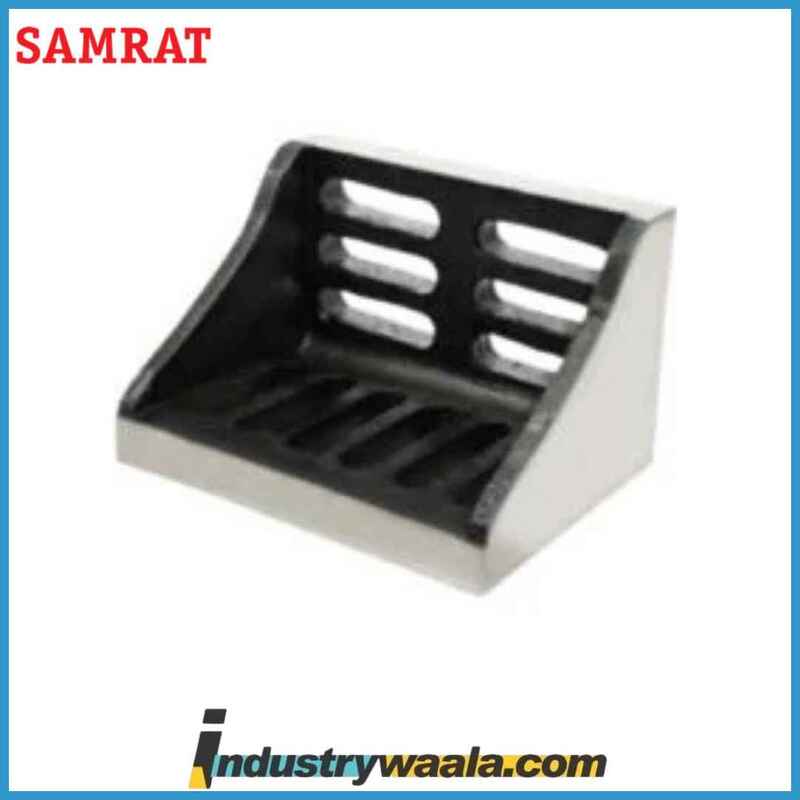

Samrat 200x150x125, 204 Cast Iron Angle Plates Webbed End(Slotted)

Samrat 200x150x125, 204 Cast Iron Angle Plates Webbed End (Slotted) – Detailed Description

Material and Construction:

• Cast Iron Plate: The Samrat 200x150x125, 204 Cast Iron Angle Plate is made from high-grade cast iron, known for its excellent durability, strength, and vibration-damping properties. Cast iron is an ideal material for precision tools as it absorbs vibrations from nearby machinery, ensuring stability and accuracy during machining, tooling, and inspection tasks. The high-quality cast iron also offers resistance to wear and corrosion, providing long-term performance in challenging environments.

Dimensions:

• 200x150x125 mm: With dimensions of 200 mm in length, 150 mm in width, and 125 mm in height, this angle plate is suited for medium to large-sized workpieces. Its size ensures sufficient support and rigidity while allowing easy handling for operations requiring precise positioning and alignment.

Design and Functionality:

• 90-Degree Angle Plate: The Samrat 200x150x125 Cast Iron Angle Plate features a precise 90-degree angle, which is critical for providing accurate alignment of workpieces during machining, welding, assembly, and inspection tasks. This angle configuration ensures that parts are held securely at right angles, minimizing the risk of misalignment and errors during processes that require strict tolerances.
• Webbed End (Slotted Design): The webbed end design contributes to the plate’s increased rigidity and strength, allowing it to support heavy workpieces without losing its structural integrity. The slotted design at both ends of the angle plate provides flexibility for mounting and securing the plate to fixtures, machines, or workstations. This feature allows for fast and versatile setup, ensuring secure attachment while offering ease of use and adaptability to different work configurations.

Applications:

• Machining and Workholding: The Samrat 200x150x125 Cast Iron Angle Plate is ideal for use in machining operations such as milling, drilling, and grinding. The precise 90-degree angle ensures accurate positioning of workpieces, allowing for efficient machining and alignment. The slotted design provides quick and secure mounting, making it adaptable to various machines and setups.
• Tooling and Assembly: The angle plate is also a valuable tool in tooling and assembly applications. It allows for the secure and precise positioning of components, ensuring that they are held in the correct orientation for processes like welding, fastening, and assembly. Its rigidity and precision reduce the risk of misalignment, making it essential for complex assembly tasks.
• Inspection and Calibration: In inspection and calibration tasks, the Samrat Cast Iron Angle Plate serves as a reference surface for measuring the accuracy and alignment of components. The plate’s precise right-angle ensures that parts are measured accurately, and its vibration-damping properties ensure that measurements are not compromised by external machine movements or vibrations.

Durability and Performance:

• High Strength and Load-Bearing Capacity: The Samrat 200x150x125 Cast Iron Angle Plate is designed to withstand heavy loads and stresses. Its webbed end design increases the overall strength and load-bearing capacity, ensuring that the plate remains stable and does not bend under pressure. The plate is ideal for heavy-duty operations and can support large workpieces or equipment without compromising its structural integrity.
• Vibration Damping: Cast iron’s ability to dampen vibrations is an essential feature for precision machining. The Samrat Cast Iron Angle Plate reduces the impact of external vibrations from surrounding machinery, helping to maintain stability and alignment during operations. This ensures that workpieces are held in place and accurately positioned, even in high-vibration environments.
• Corrosion Resistance: The Samrat 200x150x125 Cast Iron Angle Plate is resistant to corrosion, making it suitable for use in environments with moisture or other corrosive elements. Its corrosion-resistant properties help extend the lifespan of the plate and ensure consistent performance over time, even in challenging industrial environments.

Ease of Use:

• Slotted Design for Easy Mounting: The slotted design of the Samrat Cast Iron Angle Plate makes it easy to mount and secure the plate on different fixtures, machines, or workstations. This feature offers flexibility, allowing for quick adjustments and easy repositioning. It enables operators to work more efficiently by reducing setup time.
• Stability and Precision: The rigid design of the Samrat 200x150x125 Cast Iron Angle Plate ensures that workpieces are held securely in place during operations. The stable base minimizes the risk of workpiece movement, providing accurate alignment and ensuring consistent results throughout the machining, assembly, or inspection process.
• Low Maintenance: Cast iron is a low-maintenance material, and the Samrat 200x150x125 Cast Iron Angle Plate requires minimal upkeep. Periodic cleaning and inspection are sufficient to maintain its performance. Its durability ensures that it can withstand continuous use with minimal wear and tear.

Conclusion:

The Samrat 200x150x125, 204 Cast Iron Angle Plate Webbed End (Slotted) is an essential tool for precision machining, workholding, and alignment tasks. Constructed from high-quality cast iron, it provides excellent vibration damping, load-bearing capacity, and corrosion resistance, ensuring long-term durability. The precise 90-degree angle, combined with the webbed and slotted design, offers enhanced rigidity and flexibility, making it ideal for a wide range of industrial applications. Whether used in machining, tooling, assembly, or inspection, this angle plate guarantees accuracy, reliability, and performance.
