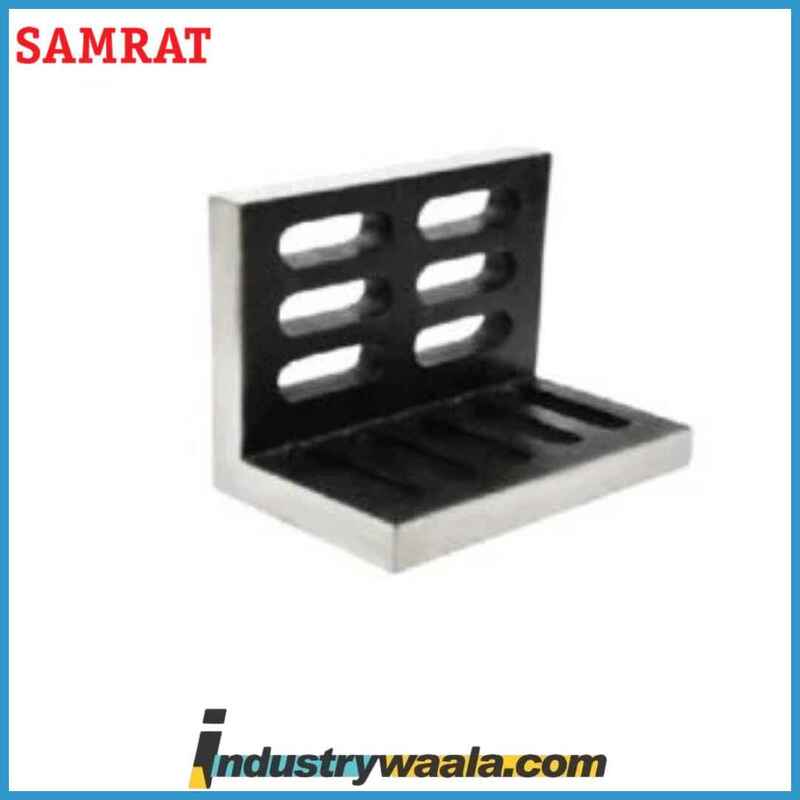

Samrat 200x150x125, 304 Cast Iron Angle Plates Open End (Slotted)

Samrat 200x150x125, 304 Cast Iron Angle Plates Open End (Slotted) – Detailed Description

Material and Construction:

• High-Quality Cast Iron: The Samrat 200x150x125, 304 Cast Iron Angle Plate is manufactured from premium-grade cast iron, known for its exceptional strength, rigidity, and vibration-damping properties. Cast iron's unique characteristics help absorb vibrations during machining, reducing their impact on the workpiece and ensuring more precise and stable operations. This makes the angle plate ideal for high-precision tasks in industrial environments.

Dimensions:

• 200x150x125 mm: The Samrat 200x150x125 Cast Iron Angle Plate is designed with dimensions of 200 mm in length, 150 mm in width, and 125 mm in height. These dimensions make it a versatile tool for a variety of medium-sized workpieces, providing adequate support for precision alignment in machining, welding, assembly, and inspection processes.

Design and Functionality:

• 90-Degree Angle Plate: The angle plate features a 90-degree angle, ensuring that workpieces are aligned and held securely in the correct orientation during operations. This precision is crucial for tasks such as milling, drilling, grinding, and other machining processes that require exact positioning and stability.
• Open-End (Slotted) Design: The open-end slotted design offers enhanced flexibility and ease of use. The slotted feature allows for quick and secure mounting onto machines, fixtures, or workstations. It enables rapid adjustments and setup, making it adaptable to a variety of workpiece sizes and setups. This design reduces setup time and increases overall productivity in the workspace.

Applications:

• Machining Operations: The Samrat 200x150x125 Cast Iron Angle Plate is ideal for use in precision machining processes, such as milling, drilling, grinding, and turning. Its 90-degree angle ensures that workpieces are held firmly in place, maintaining proper alignment and stability during these processes to avoid errors and achieve high-quality results.
• Tooling and Assembly: This angle plate is also suitable for tooling and assembly tasks, where parts need to be precisely positioned and secured. Whether used in welding, fastening, or assembly, the angle plate ensures that workpieces remain steady and aligned, leading to efficient and accurate operations.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate serves as an excellent reference surface for the inspection and calibration of workpieces. It provides a stable and accurate surface to measure parts, ensuring that any adjustments or measurements taken during the inspection process are precise and reliable.

Durability and Performance:

• Heavy-Duty Load-Bearing Capacity: The Samrat 200x150x125 Cast Iron Angle Plate is engineered to handle heavy loads without compromising its structural integrity. The robust cast iron material allows the plate to support large or heavy workpieces, providing a reliable and stable platform for various machining and assembly operations.
• Vibration Dampening: Cast iron is known for its excellent vibration-damping properties. The Samrat Cast Iron Angle Plate absorbs machine vibrations during operations, minimizing their effect on workpiece alignment. This helps maintain precision and stability throughout the machining process, ensuring that external vibrations do not interfere with the accuracy of the task at hand.
• Corrosion Resistance: The cast iron used in this angle plate offers superior resistance to corrosion, ensuring that the plate remains functional and durable even in harsh workshop environments. This feature helps maintain the plate’s performance and appearance over time, extending its lifespan.

Ease of Use:

• Slotted Design for Versatility: The open-end slotted design makes it easier to mount the angle plate onto various machines, fixtures, or workstations. The slotted feature allows for quick and secure attachment, as well as easy adjustments to accommodate different workpiece sizes. This flexibility reduces setup times, boosting overall efficiency in the workplace.
• Compact and Manageable: Despite its sturdy construction, the Samrat 200x150x125 Cast Iron Angle Plate is compact and easy to handle, making it simple to maneuver and position as needed. Its manageable size is ideal for a range of tasks without being cumbersome or difficult to use in tight spaces.
• Low Maintenance: Cast iron is relatively low-maintenance and easy to care for. Periodic cleaning and regular checks for wear and tear are sufficient to keep the plate in optimal working condition. This low-maintenance nature contributes to its longevity and ensures that it remains a reliable tool in your workshop.

Conclusion:

The Samrat 200x150x125, 304 Cast Iron Angle Plate Open End (Slotted) is a durable, versatile, and high-precision tool designed for accurate alignment, workholding, and machining in industrial settings. With its 90-degree angle and open-end slotted design, it provides flexibility, stability, and easy mounting for a wide range of applications, including machining, assembly, and inspection. The high-quality cast iron construction ensures excellent vibration damping, corrosion resistance, and load-bearing capacity, making this angle plate a reliable and long-lasting solution for your precision tasks.
