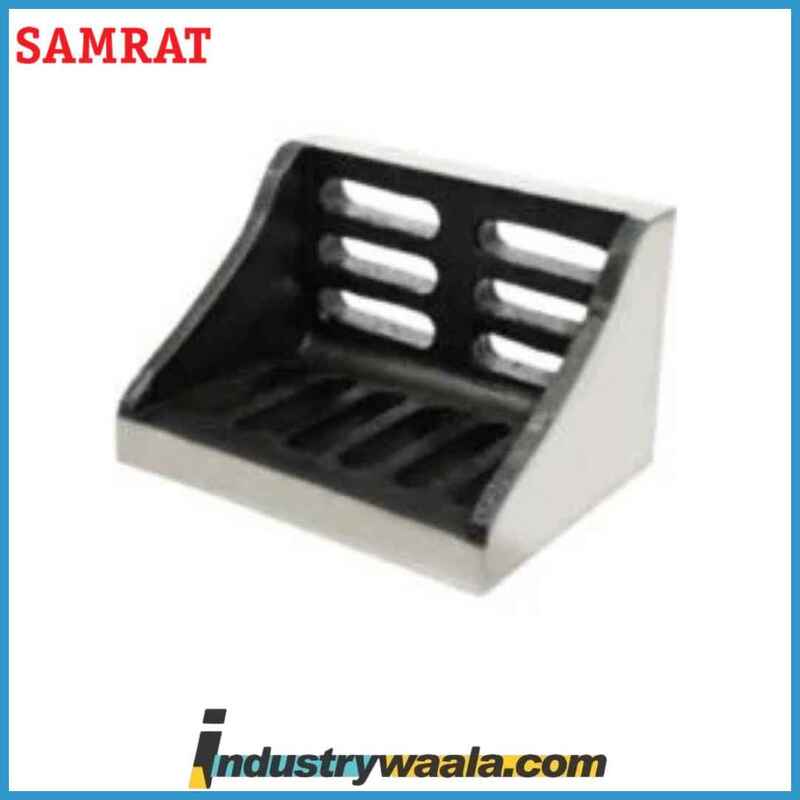

Samrat 225x175x150, 205 Cast Iron Angle Plates Webbed End(Slotted)

Samrat 225x175x150, 205 Cast Iron Angle Plates Webbed End (Slotted) – Detailed Description

Material and Construction:

• Cast Iron Plate: The Samrat 225x175x150, 205 Cast Iron Angle Plate is made from high-quality cast iron, renowned for its strength, durability, and resistance to wear. Cast iron's unique properties make it an excellent choice for use in heavy-duty industrial applications, providing a rigid, stable platform for precision work. The material’s ability to absorb vibrations helps maintain the accuracy and reliability of machinery and workpieces during machining and assembly tasks.

Dimensions:

• 225x175x150 mm: With overall dimensions of 225 mm in length, 175 mm in width, and 150 mm in height, this angle plate is designed to provide a sturdy and reliable surface for holding and aligning workpieces. The relatively large size of the plate makes it suitable for medium to large-scale applications, ensuring sufficient surface area for different machining and assembly processes.

Design and Functionality:

• Angle Plate Configuration: The Samrat 225x175x150, 205 Cast Iron Angle Plate features a precise 90-degree angle. This ensures that it can be used for a wide range of applications, where accurate alignment of components is critical. The angle plate serves as a reference surface, offering a secure base for machining, assembly, welding, and other processes that require precise positioning.
• Webbed End (Slotted Design): The webbed end design of the angle plate offers increased rigidity and strength, allowing it to bear heavier loads and withstand higher pressures during operation. The slotted structure at the ends of the plate provides additional flexibility, making it easier to mount or secure the angle plate in place. This design also helps reduce the overall weight of the plate, making it easier to handle without compromising on strength or durability.

Applications:

• Machining and Workholding: The Samrat 225x175x150 Cast Iron Angle Plate is ideal for use in various machining applications, such as milling, drilling, and grinding. Its solid 90-degree angle provides a stable foundation for securely holding workpieces in place, ensuring precise operations. The slotted ends provide easy mounting options, making it versatile for different setups in machine tools or workstations.
• Tooling and Assembly: This angle plate is widely used in tooling, workholding, and assembly applications. Its robust structure helps maintain alignment during complex processes such as welding or part assembly. The webbed, slotted end design allows for additional support and flexibility, particularly when setting up larger or more complex parts that need precise orientation.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate is an excellent choice for use in inspection and calibration tasks. It serves as a stable reference surface for measuring and verifying the accuracy of parts and components. The angle plate’s precise 90-degree configuration helps ensure that all components are correctly aligned, improving the accuracy of inspections and reducing the potential for errors.

Durability and Performance:

• High Strength and Load-Bearing Capacity: The cast iron construction, combined with the webbed design, enhances the plate’s strength and load-bearing capacity. It can handle heavy workpieces and equipment without warping or shifting, ensuring that it remains stable during demanding tasks. The ability to absorb vibrations and resist deflection makes it ideal for high-precision work.
• Vibration Damping: The webbed design and cast iron construction provide excellent vibration damping properties. This reduces the risk of misalignment caused by machine vibrations, ensuring more accurate and stable operations during machining and assembly tasks.
• Corrosion Resistance: Cast iron is naturally resistant to corrosion, making the Samrat Angle Plate ideal for use in environments where exposure to moisture or corrosive materials is a concern. This corrosion resistance ensures the longevity of the plate, keeping it in good working condition for years with minimal maintenance.

Ease of Use:

• Slotted Design for Easy Mounting: The slotted ends of the Samrat 225x175x150 Cast Iron Angle Plate allow for easy mounting and attachment to machines or workstations. This design feature increases the versatility of the plate, allowing it to be securely positioned in a variety of setups for machining, inspection, and assembly tasks.
• Stable and Secure: The solid construction and webbed structure ensure that the angle plate remains stable and secure under load. This stability reduces the risk of movement or misalignment during operations, contributing to improved accuracy and precision.
• Low Maintenance: The Samrat 225x175x150 Cast Iron Angle Plate is designed to require minimal maintenance. Regular cleaning and periodic inspection are all that is needed to keep it in optimal working condition. The corrosion-resistant cast iron ensures that the plate remains functional even in challenging environments.

Conclusion:

The Samrat 225x175x150, 205 Cast Iron Angle Plate Webbed End (Slotted) is a highly durable and versatile industrial tool designed to provide precise alignment and support during a wide range of applications. Made from high-quality cast iron, it offers exceptional strength, vibration damping, and load-bearing capacity. The slotted, webbed end design increases its rigidity while reducing weight, making it easy to handle and mount. Whether used for machining, tooling, inspection, or assembly, the Samrat Cast Iron Angle Plate ensures stability, accuracy, and long-term reliability in demanding industrial environments.
