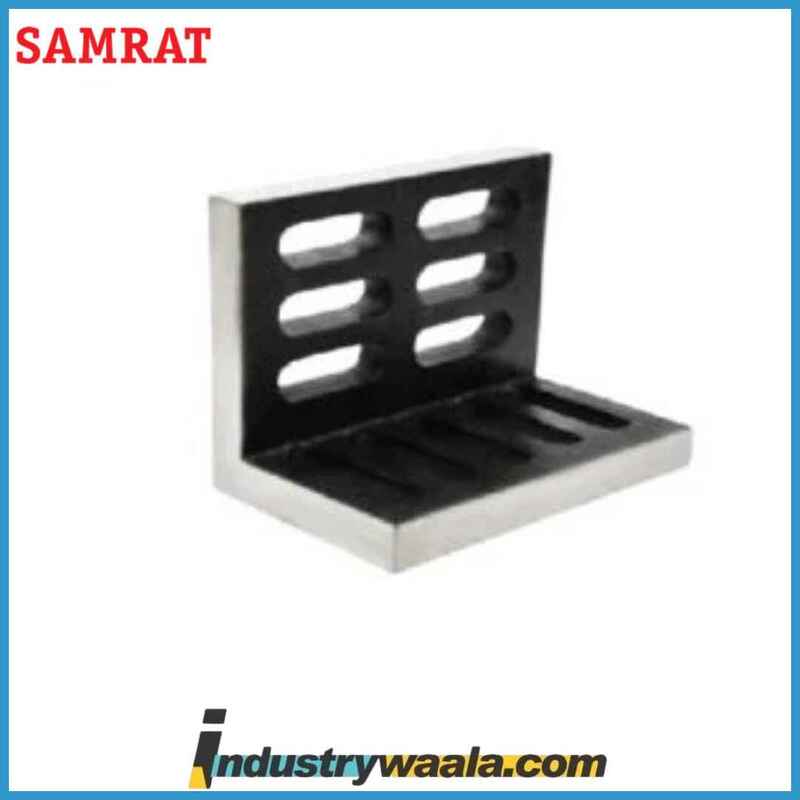

Samrat 225x175x150, 305 Cast Iron Angle Plates Open End (Slotted)

Samrat 225x175x150, 305 Cast Iron Angle Plates Open End (Slotted) – Detailed Description

Material and Construction:

• High-Quality Cast Iron: The Samrat 225x175x150, 305 Cast Iron Angle Plate is constructed from premium cast iron, which is known for its superior strength, durability, and excellent vibration-damping properties. This high-quality material ensures that the plate remains stable under heavy loads and absorbs vibrations effectively, making it ideal for precise operations in machining, assembly, and inspection.

Dimensions:

• 225x175x150 mm: The Samrat 225x175x150 Cast Iron Angle Plate is designed with dimensions of 225 mm in length, 175 mm in width, and 150 mm in height. These dimensions provide ample space and stability to support medium to large-sized workpieces. The plate offers precision alignment and reliable workholding, making it suitable for a wide range of industrial applications.

Design and Functionality:

• 90-Degree Angle Plate: This angle plate features a precise 90-degree angle, ensuring that workpieces are securely aligned and held at the correct orientation during machining, drilling, grinding, and other machining processes. The precise angle ensures that the workpieces maintain their correct alignment throughout the process, leading to more accurate results.
• Open-End (Slotted) Design: The open-end slotted design provides added versatility, allowing the angle plate to be easily mounted and adjusted. The slots make it simple to secure the plate to a variety of fixtures, workstations, and machines. This design allows for quick setup and changes between workpieces, reducing downtime and boosting productivity.

Applications:

• Machining Operations: The Samrat 225x175x150 Cast Iron Angle Plate is ideal for use in precision machining operations such as milling, drilling, and grinding. The 90-degree angle ensures that the workpieces remain in place, properly aligned, and accurately positioned, reducing the chances of errors and improving machining accuracy.
• Tooling and Assembly: The angle plate is also perfect for tooling and assembly tasks, where workpieces need to be securely held in place. It is widely used in welding, fastening, and assembly operations to maintain the correct alignment of parts during these procedures.
• Inspection and Calibration: This angle plate serves as an essential tool in the inspection and calibration of workpieces. It offers a stable and accurate reference surface, allowing technicians to measure and calibrate workpieces with high precision. The stability of the plate ensures that measurements are reliable, aiding in high-quality production and consistent results.

Durability and Performance:

• Heavy-Duty Load-Bearing Capacity: The Samrat 225x175x150 Cast Iron Angle Plate is designed to handle heavy workloads without compromising on its performance or structural integrity. The durable cast iron construction ensures that the angle plate can support large or heavy workpieces without bending or warping.
• Vibration Dampening: The high-quality cast iron material is ideal for damping vibrations during high-speed machining or other operations. The Samrat Cast Iron Angle Plate absorbs these vibrations, ensuring that the workpiece remains stable and aligned, resulting in more accurate and consistent outcomes during machining.
• Corrosion Resistance: The cast iron material used in this angle plate offers excellent resistance to corrosion, making it suitable for use in various environments, including those where moisture or humidity may be present. The corrosion resistance ensures that the plate maintains its appearance and functionality for years, even in demanding industrial conditions.

Ease of Use:

• Slotted Design for Flexibility: The open-end slotted design allows for quick and secure attachment to machines, workstations, or fixtures, making it easier to reposition the angle plate and adjust the workpiece. The slots offer greater flexibility and quicker setup times, allowing operators to adjust the plate as required for different workpieces or tasks.
• Compact Yet Strong: Despite its heavy-duty construction, the Samrat 225x175x150 Cast Iron Angle Plate is designed for ease of handling. Its compact size makes it easy to position and move around, allowing for greater efficiency and flexibility in the workshop.
• Low Maintenance: Cast iron is relatively low maintenance, requiring only periodic cleaning and regular inspection to ensure that the angle plate stays in optimal condition. Its longevity and ease of upkeep make it a cost-effective choice for long-term use in industrial settings.

Conclusion:

The Samrat 225x175x150, 305 Cast Iron Angle Plate Open End (Slotted) is a versatile, durable, and high-precision tool suitable for a variety of machining, assembly, and inspection applications. With its 90-degree angle and open-end slotted design, it ensures stable and accurate alignment of workpieces. The high-quality cast iron construction provides superior load-bearing capacity, vibration dampening, and corrosion resistance, making it an ideal tool for heavy-duty industrial applications. The ease of use and low maintenance requirements make this angle plate a reliable and efficient solution for maintaining precision in demanding environments.
