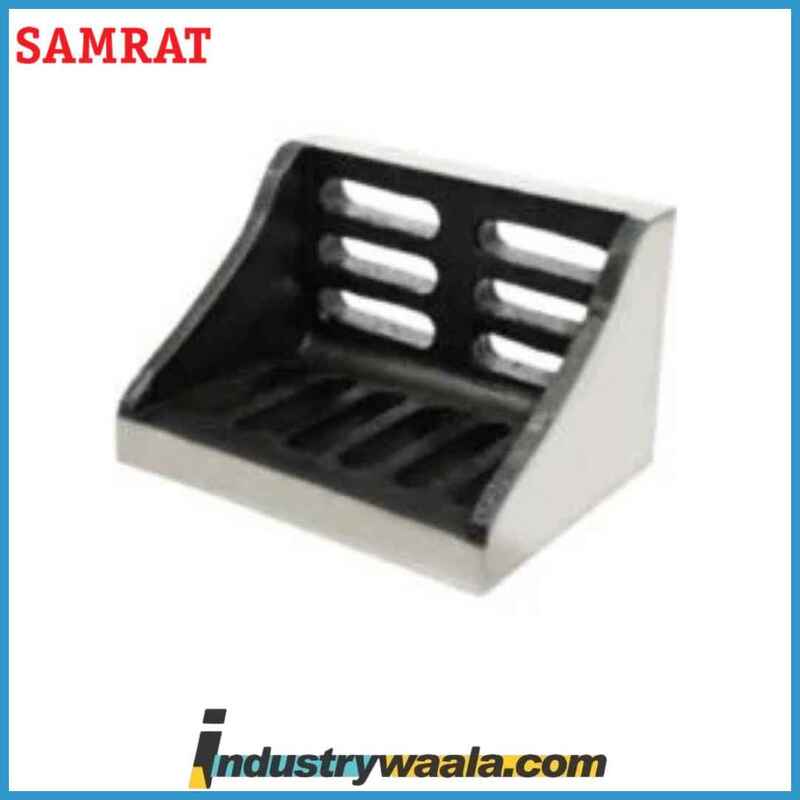

Samrat 250x200x150, 206 Cast Iron Angle Plates Webbed End(Slotted)

Samrat 250x200x150, 206 Cast Iron Angle Plates Webbed End (Slotted) – Detailed Description

Material and Construction:

• Cast Iron Plate: The Samrat 250x200x150, 206 Cast Iron Angle Plate is made from high-quality cast iron, known for its strength, rigidity, and wear resistance. Cast iron is widely used in industrial applications due to its ability to absorb vibrations, which helps in maintaining the accuracy of the workpieces and machines. The material is also durable and corrosion-resistant, ensuring a long lifespan in demanding environments.

Dimensions:

• 250x200x150 mm: This angle plate is designed with dimensions of 250 mm in length, 200 mm in width, and 150 mm in height, making it suitable for medium to large-scale machining, workholding, and assembly applications. These proportions ensure that the plate offers ample surface area and support for a wide range of workpieces, providing a stable foundation for accurate machining, alignment, and fabrication.

Design and Functionality:

• Angle Plate Configuration: The Samrat 250x200x150, 206 Cast Iron Angle Plate features a precision 90-degree angle, making it an essential tool for applications requiring accurate positioning and alignment. The 90-degree configuration ensures that the plate can securely hold workpieces in place, allowing for precision machining, assembly, and inspection. Its rigid and stable design enhances overall efficiency by minimizing the risk of workpiece movement or misalignment during processes.
• Webbed End (Slotted Design): The plate's webbed end structure is designed to improve rigidity and load-bearing capacity. The webbed construction helps distribute stress evenly across the plate, making it capable of supporting heavier workpieces or machinery. Additionally, the slotted design at the ends of the angle plate allows for easy mounting and securing, offering flexibility for different setups. The slotted structure also reduces the overall weight of the angle plate, making it easier to handle without sacrificing strength or performance.

Applications:

• Machining and Workholding: The Samrat 250x200x150 Cast Iron Angle Plate is ideal for use in machining applications such as milling, drilling, grinding, and turning. Its robust design and precise 90-degree angle make it perfect for holding workpieces in place with accuracy. The slotted ends facilitate easy attachment to machines, allowing for secure and stable setups that are crucial for high-precision tasks.
• Tooling and Assembly: This angle plate is also widely used in tooling and assembly operations, where accurate alignment of components is essential. Its stable structure ensures that parts are aligned correctly, which is especially important during complex processes like welding, part assembly, or fabrication. The angle plate provides a solid base for positioning parts, making it easier to carry out tasks that require high accuracy.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate is commonly used for inspection and calibration tasks. The precise 90-degree angle ensures that it can be used as a reference for measuring and verifying the accuracy of workpieces. The stability and rigidity of the plate reduce the risk of misalignment, making it a reliable tool for quality control and inspection processes.

Durability and Performance:

• High Strength and Load-Bearing Capacity: The Samrat 250x200x150 Cast Iron Angle Plate is engineered to handle heavy loads without deflecting or losing its shape. The webbed design further enhances its load-bearing capacity, allowing it to support large or heavy workpieces during machining and fabrication processes. The cast iron construction provides durability and ensures that the plate can withstand the rigors of continuous industrial use.
• Vibration Damping: The webbed structure, combined with the cast iron material, offers excellent vibration-damping properties. This is crucial in applications where vibrations from machines can affect the accuracy of the process. By absorbing these vibrations, the angle plate helps maintain a high level of precision, preventing errors in machining or assembly tasks.
• Corrosion Resistance: The cast iron used in the Samrat 250x200x150 Angle Plate is resistant to corrosion, making it suitable for use in environments where exposure to moisture, humidity, or other corrosive elements may occur. This feature helps prolong the lifespan of the angle plate and ensures reliable performance even in harsh conditions.

Ease of Use:

• Slotted Design for Easy Mounting: The slotted ends of the angle plate provide a convenient way to secure and mount the plate in place. This design feature increases the versatility of the plate, allowing it to be used in a variety of setups. Whether mounted on machine beds, fixtures, or workstations, the slotted design ensures the angle plate remains firmly in position during operations.
• Stable and Secure: The solid construction and webbed end design ensure that the angle plate remains stable even under heavy loads or pressure. This stability is essential in ensuring accurate workpiece positioning during machining, welding, or assembly tasks, preventing movement that could affect precision.
• Low Maintenance: Cast iron is a low-maintenance material that requires minimal upkeep to maintain its performance. The Samrat 250x200x150 Angle Plate benefits from this, requiring only occasional cleaning and inspection to remain in excellent working condition. The plate’s durability and resistance to corrosion further contribute to its long-term, low-maintenance use.

Conclusion:

The Samrat 250x200x150, 206 Cast Iron Angle Plate Webbed End (Slotted) is a high-performance, durable tool designed for a wide range of industrial applications. Made from premium cast iron, it offers excellent strength, rigidity, and resistance to wear, making it ideal for machining, assembly, and inspection tasks. The precise 90-degree angle, combined with the webbed end and slotted design, enhances the plate’s load-bearing capacity and versatility. Whether used in machining, tooling, or inspection, this angle plate delivers stable and accurate results, ensuring reliability and long-lasting performance in demanding industrial environments.
