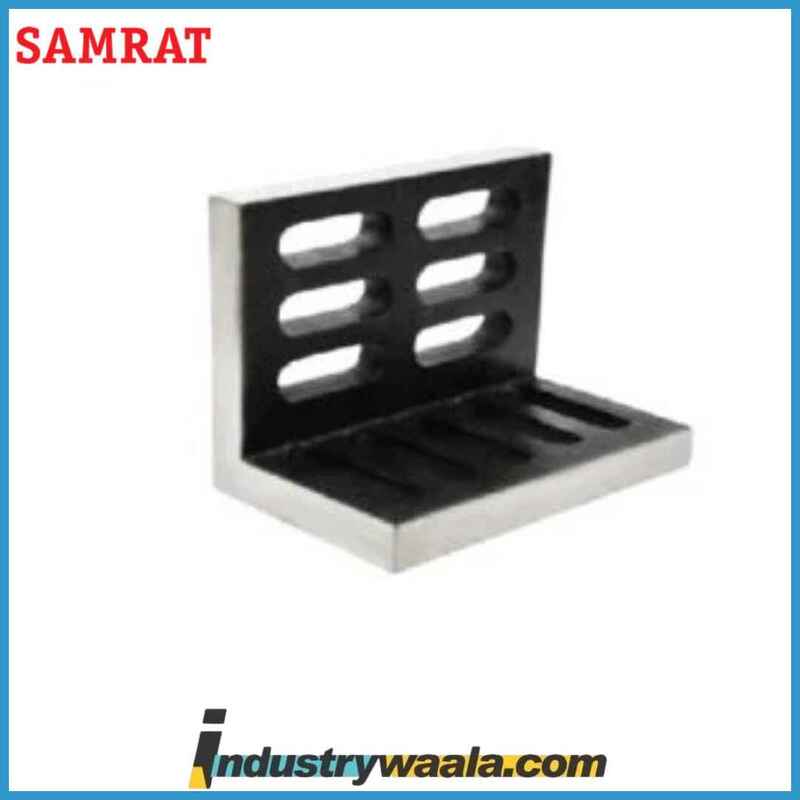

Samrat 250x200x150, 306 Cast Iron Angle Plates Open End (Slotted)

Samrat 250x200x150, 306 Cast Iron Angle Plates Open End (Slotted) – Detailed Description

Material and Construction:

• High-Quality Cast Iron: The Samrat 250x200x150, 306 Cast Iron Angle Plate is constructed from premium cast iron, which is known for its exceptional strength, durability, and vibration-damping capabilities. Cast iron is an ideal material for precision tools as it absorbs vibrations during machining, ensuring that external forces do not interfere with the alignment of the workpiece, leading to more accurate results.

Dimensions:

• 250x200x150 mm: With its dimensions of 250 mm in length, 200 mm in width, and 150 mm in height, the Samrat 250x200x150 Cast Iron Angle Plate is a robust and versatile tool designed for medium to large workpieces that require precise alignment. Its solid construction ensures stability during various machining, welding, and assembly operations.

Design and Functionality:

• Open-End (Slotted) Design: The open-end and slotted design of the Samrat Cast Iron Angle Plate allows for versatile mounting and secure attachment to machines, fixtures, or workstations. The slotted ends provide flexibility, enabling quick and easy adjustments to accommodate different workpiece sizes and setups. This feature enhances the ease of use and adaptability of the plate in various operational settings.
• 90-Degree Angle Plate: The plate features a precise 90-degree angle, ensuring that workpieces are securely positioned at the correct orientation. This angle is critical for providing accurate and stable alignment during machining, assembly, and inspection tasks, reducing the chances of misalignment and errors during these processes.

Applications:

• Machining and Workholding: The Samrat 250x200x150 Cast Iron Angle Plate is perfect for use in machining processes like milling, drilling, and grinding, where accurate alignment and positioning of workpieces are essential. The 90-degree angle ensures that parts remain securely in place, allowing for efficient and precise machining operations.
• Tooling and Assembly: This angle plate is widely used in tooling and assembly applications, where it is necessary to hold workpieces steady while welding, fastening, or assembling components. The rigid structure of the plate, coupled with its slotted design, provides reliable support for parts that need to be held in position during various assembly processes.
• Inspection and Calibration: The Samrat Cast Iron Angle Plate serves as an excellent reference surface for measuring and inspecting workpieces. Its precision and rigidity help ensure that parts are correctly aligned during inspection, leading to accurate measurements and calibration.

Durability and Performance:

• High Load-Bearing Capacity: The Samrat 250x200x150 Cast Iron Angle Plate is designed to handle substantial loads without compromising its structural integrity. The robust construction and slotted design enhance its strength, making it suitable for both medium and heavy-duty applications. It can support large workpieces, providing a stable platform for machining, welding, or assembly operations.
• Vibration Damping: The cast iron material offers exceptional vibration-damping properties, which minimize the impact of machine vibrations during precision tasks. This helps maintain stable alignment and ensures that the workpiece remains in place, contributing to more accurate machining results.
• Corrosion Resistance: Cast iron is naturally resistant to corrosion, ensuring that the Samrat Cast Iron Angle Plate maintains its appearance and performance over time, even in challenging environments. This resistance to corrosion helps extend the lifespan of the plate, making it a long-term investment for your workshop or industrial setting.

Ease of Use:

• Slotted Ends for Flexibility: The open-end, slotted design allows for quick, easy mounting and adjustment of the plate. This flexibility enables faster setup times, reducing downtime and improving overall operational efficiency. The slotted design also allows the plate to be securely fastened to fixtures or machines, ensuring the workpiece remains stable during processing.
• Compact and Easy to Handle: Despite its size, the Samrat 250x200x150 Cast Iron Angle Plate is designed for ease of use. Its manageable size makes it suitable for a wide range of workpieces, and it can be easily maneuvered and handled for various tasks, making it versatile for different applications.
• Low Maintenance: Cast iron is known for being low-maintenance, and this angle plate is no exception. It requires minimal upkeep—occasional cleaning and periodic checks for wear will keep it in optimal working condition for years. This makes it a reliable and cost-effective tool in the long run.

Conclusion:

The Samrat 250x200x150, 306 Cast Iron Angle Plate Open End (Slotted) is a highly durable and versatile tool designed for precision alignment and workholding in various machining, assembly, and inspection tasks. Made from high-quality cast iron, it offers excellent strength, vibration damping, and load-bearing capacity. The 90-degree angle, coupled with the open-end slotted design, provides flexibility, ease of use, and reliable support for medium to large workpieces. Whether used in machining, assembly, or inspection, this angle plate ensures stability and accuracy, contributing to efficient and precise operations in demanding industrial environments.
