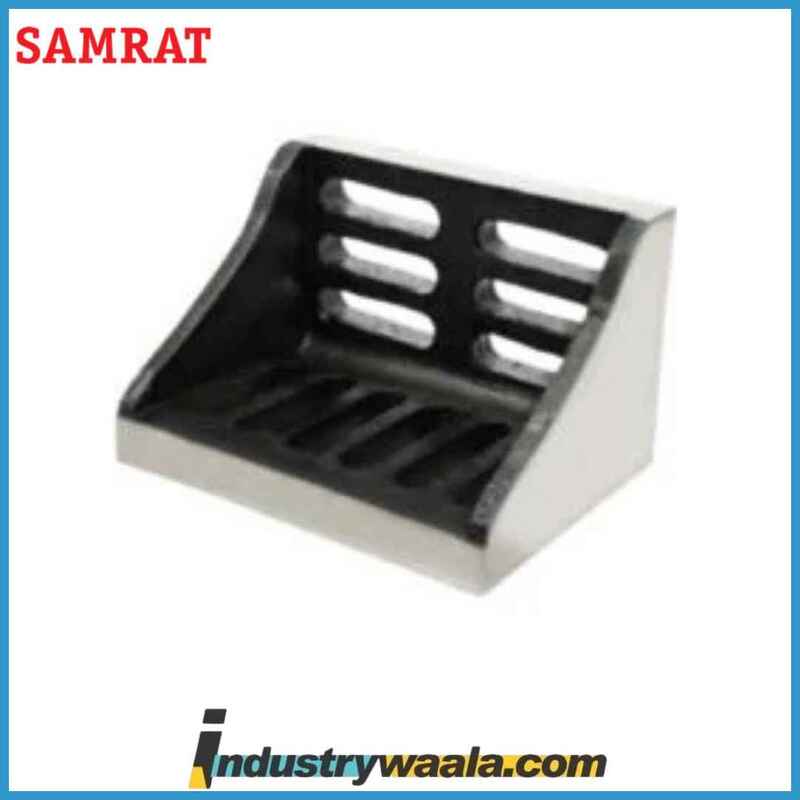

Samrat 300x225x200, 207 Cast Iron Angle Plates Webbed End(Slotted)

Samrat 300x225x200, 207 Cast Iron Angle Plates Webbed – Detailed Description

Material and Construction:

• Cast Iron Plate: The Samrat 300x225x200, 207 Cast Iron Angle Plate is crafted from high-quality cast iron, a material renowned for its strength, durability, and ability to resist wear over extended periods of use. Cast iron is an excellent choice for heavy-duty industrial applications, providing exceptional support and stability under high-pressure conditions. The material’s natural ability to absorb vibrations also helps in maintaining the precision of work during machining and assembly.

Dimensions:

• 300x225x200 mm: This angle plate has dimensions of 300mm in length, 225mm in width, and 200mm in height. These proportions make it suitable for both small and medium-sized machining, grinding, and other industrial tasks that require a stable, rigid surface. The angle plate’s design ensures that it can hold workpieces securely, providing the necessary support during operations such as milling, drilling, and assembly.

Webbed Design:

• Webbed Structure: The Samrat 207 Cast Iron Angle Plate features a webbed design, which enhances the plate's rigidity while reducing weight. The webbing increases the overall strength of the plate, ensuring it can handle significant loads without compromising on performance. This design also helps reduce the risk of deflection or warping under heavy or sustained pressure. The webbed structure enhances the longevity and structural integrity of the angle plate, making it a reliable component for industrial use.

Design and Functionality:

• Angle Plate Configuration: This angle plate is designed with a 90-degree angle, making it ideal for providing support and alignment in a variety of machining, assembly, and fabrication processes. The perpendicular design offers a solid base for holding workpieces securely, ensuring that they are positioned correctly during operations. This precision alignment improves the accuracy of machining, grinding, and welding tasks.

Applications:

• Machining and Workholding: The Samrat 300x225x200, 207 Cast Iron Angle Plate is ideal for use in CNC machining, milling, and drilling applications. Its stable and rigid design ensures that workpieces remain secure, allowing for more precise cutting, shaping, and finishing. The angle plate's webbed structure ensures that it can handle significant pressure and heavy workloads, providing a dependable surface for workholding during machine operations.
• Tooling and Assembly: The angle plate is also used for tooling, assembly, and fabrication applications. Its flat surface and webbed structure make it ideal for supporting various parts and components during assembly processes. The plate's perpendicular angle is beneficial for tasks that require precise alignment of components, such as welding or part assembly.
• Inspection and Calibration: Due to its precise 90-degree angle and stable construction, the Samrat Cast Iron Angle Plate is also used in inspection and calibration tasks. It serves as a reference surface for measuring and checking the accuracy of workpieces, ensuring that all components conform to specifications before further processing.

Durability and Performance:

• High Strength and Load-Bearing Capacity: The Samrat 300x225x200, 207 Cast Iron Angle Plate offers outstanding strength and load-bearing capacity due to its webbed design. It can withstand heavy workpieces and machinery without deflection, ensuring precision and stability during operations. This durability makes it suitable for a wide range of industrial applications where load resistance and stability are critical.
• Vibration Damping: The cast iron construction, along with the webbed design, provides natural vibration damping properties. This helps maintain the accuracy of machining and assembly tasks by reducing the effects of vibrations during operations. It also helps prevent premature wear on tools and machinery.

Ease of Use:

• Secure Mounting and Setup: The Samrat 300x225x200, 207 Cast Iron Angle Plate is easy to integrate into various workstations and setups. Its solid, stable design ensures that it stays securely in place, minimizing the need for additional mounting accessories. The precise 90-degree angle ensures that it can be used for a wide range of applications without the need for further adjustments.
• Low Maintenance: Cast iron requires minimal maintenance to maintain its strength and functionality. The Samrat 300x225x200, 207 Cast Iron Angle Plate’s simple, robust design means that it can be used reliably for extended periods with very little upkeep. Regular cleaning is sufficient to ensure its continued performance.

Conclusion:

The Samrat 300x225x200, 207 Cast Iron Angle Plate Webbed is a highly durable, strong, and reliable tool ideal for use in various industrial applications. Its high-quality cast iron construction ensures stability, while the webbed design enhances its strength and rigidity. The 90-degree angle configuration provides excellent alignment and support for machining, workholding, tooling, assembly, and inspection tasks. Its ability to resist vibrations, combined with its load-bearing capacity, makes it perfect for heavy-duty operations requiring precision and accuracy. The Samrat Angle Plate is an essential tool for industries requiring durable, stable, and precise support for their processes.
