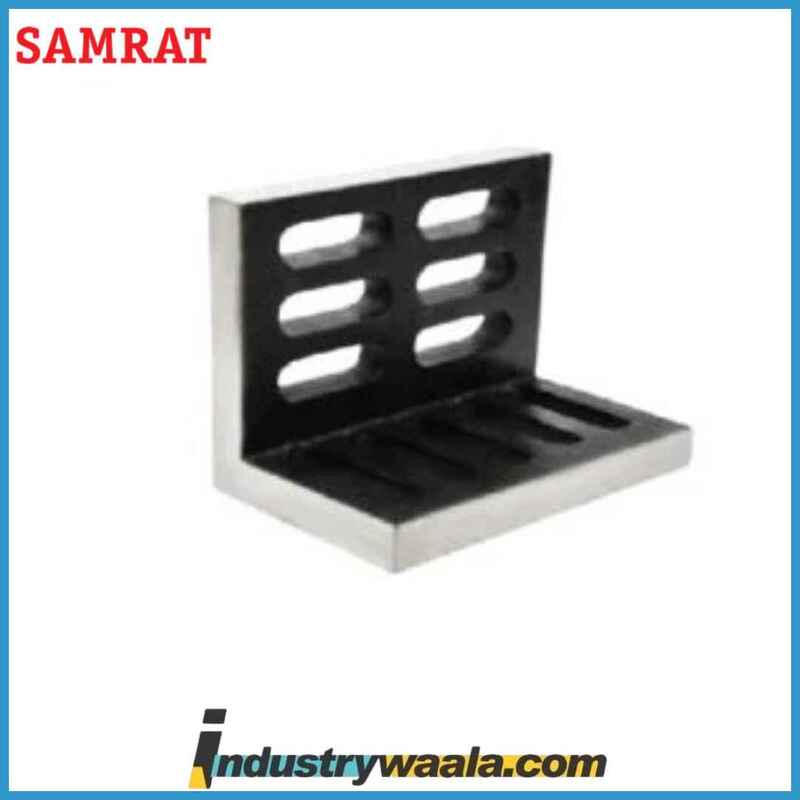

Samrat 88x75x63, 300 Cast Iron Angle Plates Open End (Slotted)

Samrat 88x75x63, 300 Cast Iron Angle Plates Open End (Slotted) – Detailed Description

Material and Construction:

• High-Grade Cast Iron: The Samrat 88x75x63, 300 Cast Iron Angle Plate is made from durable, premium-grade cast iron, ensuring long-lasting performance, strength, and stability. Cast iron is known for its exceptional ability to absorb vibrations, which is critical for achieving precise and accurate results during machining, grinding, and other precision operations. The material also provides excellent resistance to wear and corrosion, extending the lifespan of the angle plate and ensuring it remains effective even in harsh industrial environments.

Dimensions:

• 88x75x63 mm: The Samrat 88x75x63 Cast Iron Angle Plate features dimensions of 88 mm in length, 75 mm in width, and 63 mm in height. This compact size makes it an ideal tool for smaller workpieces, where space constraints may require a more compact solution without compromising on stability or accuracy. Despite its small size, it still offers robust support for precision tasks.

Design and Functionality:

• 90-Degree Angle: The angle plate features a 90-degree angle that provides a stable and precise reference surface for positioning workpieces at right angles. This design is ideal for securing workpieces during a variety of operations such as milling, drilling, grinding, and assembly. The precise 90-degree angle ensures consistent alignment, essential for achieving high accuracy in complex machining or fabrication tasks.
• Open-End Slotted Design: The open-end slotted design allows for easy and flexible mounting of the angle plate on different machines, fixtures, or workstations. The slotted design helps reduce setup time, making it easier to quickly secure the plate and adjust workpieces as necessary. The slots enable a range of clamping configurations, offering versatility for different setups and types of workpieces. This flexibility makes the plate ideal for various applications, from small-scale machining to larger industrial tasks.

Applications:

• Machining Operations: The Samrat 88x75x63 Cast Iron Angle Plate is primarily used in precision machining tasks, where accurate alignment of workpieces is crucial. It helps maintain the correct position of parts during operations such as milling, grinding, drilling, and tapping. The 90-degree angle ensures that workpieces are held at the precise angle required for these tasks, helping to improve accuracy and reduce errors during machining.
• Assembly and Welding: The angle plate also plays a key role in assembly and welding operations, providing a stable platform for positioning workpieces at right angles. Whether assembling components or performing welding, the angle plate keeps workpieces securely in place, ensuring consistent results.
• Inspection and Measurement: The Samrat 88x75x63 Angle Plate is an excellent tool for inspection and measurement applications. It provides a stable and accurate reference surface to check the alignment, flatness, and other critical dimensions of workpieces. The 90-degree angle allows for precise measurement of parts to ensure they meet the required specifications.

Durability and Performance:

• Heavy-Duty Construction: Despite its compact size, the Samrat 88x75x63 Cast Iron Angle Plate is built to withstand heavy-duty applications. Its robust construction ensures that it can support significant loads without distortion or warping, making it suitable for both light and medium-duty tasks. The cast iron material provides high load-bearing capacity and durability, ensuring the plate performs consistently even under demanding conditions.
• Vibration Dampening: Cast iron naturally dampens vibrations during machining or grinding, which is a critical factor in maintaining the accuracy of operations. The Samrat 88x75x63 Angle Plate helps minimize the risk of vibrations affecting the alignment of the workpiece, resulting in more precise machining and better finished parts.
• Corrosion Resistance: The cast iron construction offers natural resistance to corrosion, helping to prolong the life of the angle plate even in tough environments. This resistance ensures that the angle plate remains functional and retains its structural integrity even when exposed to moisture or chemicals commonly found in industrial workshops.

Ease of Use:

• Quick and Easy Setup: The open-end slotted design of the angle plate allows for easy and quick mounting to a wide range of machines, workstations, and fixtures. The slots allow the user to adjust and secure the angle plate with minimal effort, reducing setup time and increasing overall efficiency.
• Compact and Ergonomic: The compact dimensions of the Samrat 88x75x63 Cast Iron Angle Plate make it easy to handle and maneuver in smaller or confined spaces. Despite its small size, it provides excellent stability and support, making it ideal for precise work in tight workspaces or smaller machines.
• Low Maintenance: The robust cast iron material ensures that the angle plate requires minimal maintenance. Regular cleaning and periodic inspection are generally all that is needed to keep the angle plate in good working condition, making it a cost-effective solution for long-term use.

Conclusion:

The Samrat 88x75x63, 300 Cast Iron Angle Plate (Open End Slotted) is a compact yet highly durable tool designed to provide precise and stable workpiece alignment in machining, assembly, and inspection operations. Its 90-degree angle ensures accurate positioning, while the open-end slotted design allows for flexible, quick mounting and adjustments. Constructed from high-quality cast iron, this angle plate offers excellent vibration damping, load-bearing capacity, and resistance to corrosion, making it a reliable solution for various industrial tasks. Its ease of use, durability, and versatility make it an essential tool for achieving precision and efficiency in a wide range of applications.
