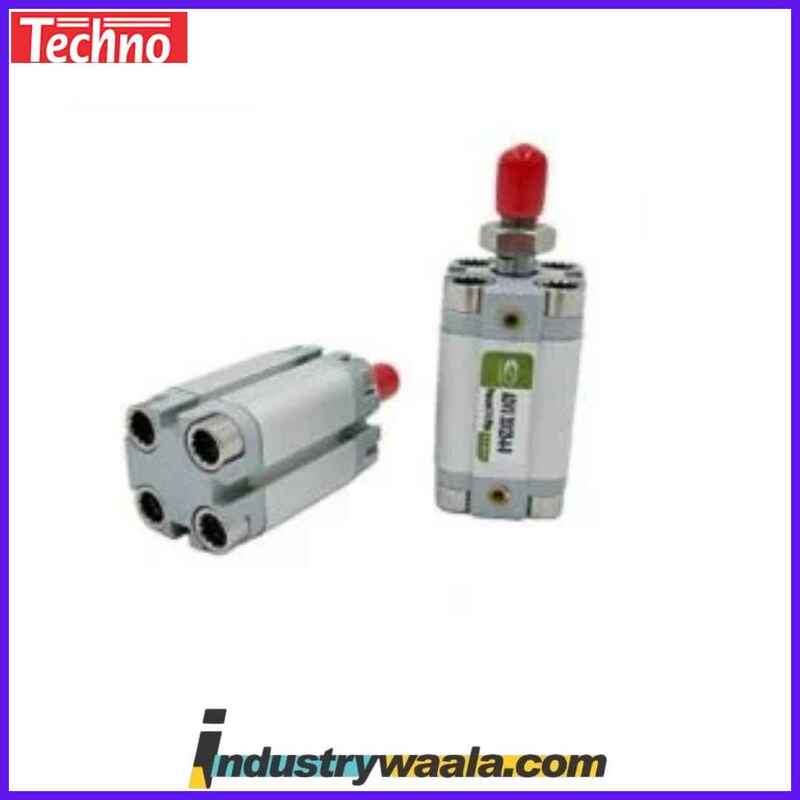

Techno ADVU-16 X 30M-S Pneumatic Cylinder Male Series

The Techno ADVU-16 X 30M-S Pneumatic Cylinder Male Series is a high-performance, compact pneumatic actuator designed for applications where precision, reliability, and moderate movement are required. With a 16 mm bore and a 30 mm stroke, this cylinder is ideal for tasks that need smaller displacements but still require moderate force for effective operation. The male-threaded mounting (M-S) allows for easy and secure installation in systems with female-threaded components.

Key Features of the Techno ADVU-16 X 30M-S Pneumatic Cylinder Male Series LONG DES:

1. 16 mm Bore:
   • The 16 mm bore provides a compact design suitable for space-constrained applications while still delivering sufficient force to meet the demands of medium-duty tasks.
2. 30 mm Stroke Length:
   • With a 30 mm stroke, the cylinder offers precise movement for applications requiring shorter displacement, ideal for systems that need accurate control over shorter travel distances.
3. Male-Threaded Mounting (M-S):
   • The M-S mounting type ensures secure, stable installation. The male-threaded feature provides a versatile option for easy integration into a wide range of systems and machinery.
4. Durable Construction:
   • The anodized aluminum body of the ADVU-16 X 30M-S ensures durability and protection against wear, while the chrome-plated piston rod helps minimize friction, leading to smoother operation and longer service life.
5. Operating Pressure Range:
   • This pneumatic cylinder operates within a pressure range of 1 to 10 bar, providing flexibility for use in various industrial environments.
6. Temperature Range:
   • The cylinder is designed to function efficiently in temperatures ranging from -10°C to 60°C, making it suitable for a variety of environments, from standard industrial settings to more extreme conditions.
7. Smooth and Reliable Operation:
   • The precision engineering of the ADVU-16 X 30M-S ensures smooth, reliable operation, reducing wear and tear and minimizing the need for maintenance.

Advantages of the Techno ADVU-16 X 30M-S Pneumatic Cylinder Male Series:

• Compact and Efficient:
  • With its 16 mm bore and 30 mm stroke, the cylinder is a compact and effective solution for applications where small displacement and moderate force are needed, without sacrificing efficiency or durability.
• Durability and Low Maintenance:
  • The high-quality anodized aluminum body and chrome-plated piston rod contribute to the cylinder’s long-lasting durability, reducing maintenance costs and extending the overall service life.
• Versatile and Easy to Install:
  • The male-threaded mounting system ensures easy integration with systems using female-threaded parts, providing the flexibility to use the cylinder across a variety of applications.
• Energy Efficient:
  • This pneumatic cylinder is optimized for minimal air consumption while still providing consistent and reliable force, making it an energy-efficient choice for automation systems.

Applications:

The Techno ADVU-16 X 30M-S Pneumatic Cylinder Male Series is ideal for a wide range of industrial applications, including:

• Automation Systems: For tasks requiring precise positioning and accurate short-range movement, such as in robotic systems or automated assembly lines.
• Material Handling: Effective for sorting, positioning, and gripping tasks, especially where compact and accurate motion is needed.
• Light-Duty Clamping: Perfect for clamping applications that require precise control over the movement and positioning of materials.
• Packaging and Handling: Suitable for applications in packaging lines where short and precise movements are necessary for handling small components or items.
• Textile and Light Manufacturing: Used in textile machinery or other light manufacturing applications that require moderate displacement and force for effective operation.

Technical Specifications:

• Bore Size: 16 mm
• Stroke Length: 30 mm
• Mounting Type: Male-threaded (M-S)
• Operating Pressure: 1 to 10 bar
• Operating Temperature: -10°C to 60°C
• Cylinder Material: Anodized Aluminum (Body), Chrome-Plated Steel (Piston Rod)
• Seals: High-quality seals for minimal wear and optimal performance

Conclusion:

The Techno ADVU-16 X 30M-S Pneumatic Cylinder Male Series is a compact, durable, and energy-efficient actuator designed for precise, short-range movements. Its combination of anodized aluminum construction, chrome-plated piston rod, and male-threaded mounting makes it a versatile and reliable solution for applications in automation, material handling, clamping, and more. With its moderate stroke length and high-performance design, this cylinder is ideal for industries that require precise control in compact spaces.
